AP1

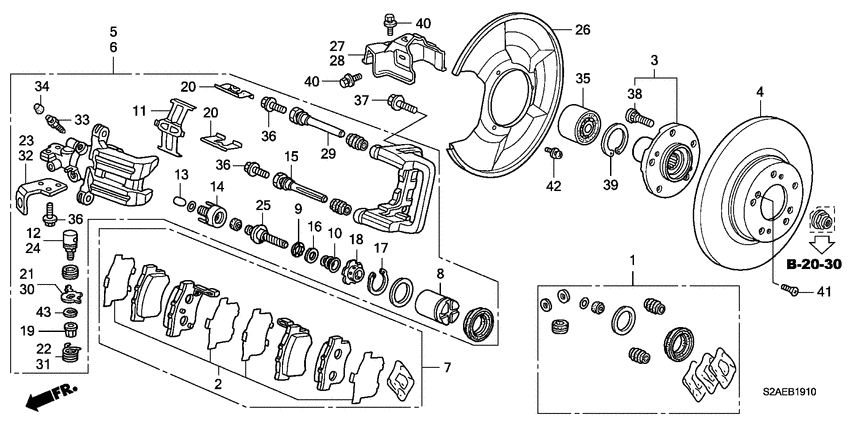

Rear brake 45
| # | OEM | Part name |
|---|---|---|
| 1 | 01473-S2A-000 | Caliper set - RR. |
| 2 | 06435-S2A-000 | Shim set - RR. |
| 3 | 42210-S2A-000 | Hub assy - RR. |
| 4 | 42510-S2A-000 | Disk - RR. BRAKE (16") |
| 5 | 43018-S2A-013 | Caliper sub assy. - R. RR. |
| 6 | 43019-S2A-013 | Caliper sub assy. - L. RR. |
| 7 | 43022-S2A-000 | Pad set - RR. |
| 7 | 43022-S2A-010 | R/DISC PAD KIT |
| 7 | 43022-S2A-E50 | Pad set - RR. (13CLP-15S,NF71GG) |
| 8 | 43215-S2A-003 | Piston assy. |
| 9 | 43223-SD2-932 | BEARING A |
| 10 | 43224-SD2-931 | Spring b - ADJUSTING |
| 11 | 43227-SG0-013 | Spring - PAD |
| 12 | 43228-SD2-933 | Shaft a |
| 13 | 43229-SD2-931 | Rod |
| 14 | 43233-S5A-J01 | Piston comp - SLEEVE |
| 14 | 43233-TR0-A01 | Piston, sleeve |
| 15 | 43235-S84-A51 | Pin a |
| 16 | 43236-S04-003 | Spacer |
| 17 | 43238-S2A-003 | Ring - RETAINING |
| 18 | 43241-S2A-003 | Spring - GUIDE |
| 19 | 43243-SD2-931 | Nut - PARKING |
| 20 | 43244-SZ3-A01 | Retainer |
| 21 | 43245-S2A-003 | Lever - R. |
| 22 | 43246-S2A-003 | Spring - R. RETURN |
| 23 | 43247-S2A-003 | Arm - R. |
| 24 | 43248-SD2-933 | Shaft b |
| 25 | 43249-S04-003 | Bolt - ADJUSTER |
| 26 | 43253-S2A-000 | Guard - RR. SPLASH |
| 27 | 43255-S2A-000 | Protector - R. RR. CALIPER |
| 28 | 43256-S2A-000 | Protector - L. RR. CALIPER |
| 29 | 43262-S84-A51 | Pin b |
| 30 | 43265-S2A-003 | Lever - L. |
| 31 | 43266-S2A-003 | Spring - L. RETURN |
| 32 | 43267-S2A-003 | Arm - L. |
| 33 | 43352-SM4-951 | Screw - BLEEDER |
| 34 | 43353-SD5-003 | Cap - BLEEDER SCREW |
| 35 | 44300-S47-008 | Bearing assy - HUB (NTN) |
| 35 | 44300-S47-305 | Bearing assy |
| 36 | 45240-SC2-003 | Bolt - FLANGE, 8X22 |
| 37 | 90103-SV4-013 | Bolt - FLANGE, 10X30 |
| 38 | 90113-SA0-025 | Bolt - WHEEL (NAGOYA RASHI) |
| 38 | 90113-SM1-005 | Bolt - WHEEL (ROCKNEL FASTENER) |
| 38 | 90113-SA0-006 | Bolt - WHEEL (SAGA) |
| 39 | 90681-SG0-000 | Circlip - INTERNAL, 84MM |
| OEM | Part name | Category |
|---|---|---|
| 01473-S2A-000 | Caliper set - RR. | Rear brake |
| 06435-S2A-000 | Shim set - RR. | Rear brake |
| 42210-S2A-000 | Hub assy - RR. | Rear brake |
| 42510-S2A-000 | Disk - RR. BRAKE (16") | Rear brake |
| 43018-S2A-013 | Caliper sub assy. - R. RR. | Rear brake |
| 43019-S2A-013 | Caliper sub assy. - L. RR. | Rear brake |
| 43022-S2A-000 | Pad set - RR. | Rear brake |
| 43022-S2A-010 | R/DISC PAD KIT | Rear brake |
| 43022-S2A-E50 | Pad set - RR. (13CLP-15S,NF71GG) | Rear brake |
| 43215-S2A-003 | Piston assy. | Rear brake |
| 43223-SD2-932 | BEARING A | Rear brake |
| 43224-SD2-931 | Spring b - ADJUSTING | Rear brake |
| 43227-SG0-013 | Spring - PAD | Rear brake |
| 43228-SD2-933 | Shaft a | Rear brake |
| 43229-SD2-931 | Rod | Rear brake |
| 43233-S5A-J01 | Piston comp - SLEEVE | Rear brake |
| 43233-TR0-A01 | Piston, sleeve | Rear brake |
| 43235-S84-A51 | Pin a | Rear brake |
| 43236-S04-003 | Spacer | Rear brake |
| 43238-S2A-003 | Ring - RETAINING | Rear brake |
| 43241-S2A-003 | Spring - GUIDE | Rear brake |
| 43243-SD2-931 | Nut - PARKING | Rear brake |
| 43244-SZ3-A01 | Retainer | Rear brake |
| 43245-S2A-003 | Lever - R. | Rear brake |
| 43246-S2A-003 | Spring - R. RETURN | Rear brake |
| 43247-S2A-003 | Arm - R. | Rear brake |
| 43248-SD2-933 | Shaft b | Rear brake |
| 43249-S04-003 | Bolt - ADJUSTER | Rear brake |
| 43253-S2A-000 | Guard - RR. SPLASH | Rear brake |
| 43255-S2A-000 | Protector - R. RR. CALIPER | Rear brake |
| 43256-S2A-000 | Protector - L. RR. CALIPER | Rear brake |
| 43262-S84-A51 | Pin b | Rear brake |
| 43265-S2A-003 | Lever - L. | Rear brake |
| 43266-S2A-003 | Spring - L. RETURN | Rear brake |
| 43267-S2A-003 | Arm - L. | Rear brake |
| 43352-SM4-951 | Screw - BLEEDER | Rear brake |
| 43353-SD5-003 | Cap - BLEEDER SCREW | Rear brake |
| 44300-S47-008 | Bearing assy - HUB (NTN) | Rear brake |
| 44300-S47-305 | Bearing assy | Rear brake |
| 45240-SC2-003 | Bolt - FLANGE, 8X22 | Rear brake |
| 90103-SV4-013 | Bolt - FLANGE, 10X30 | Rear brake |
| 90113-SA0-006 | Bolt - WHEEL (SAGA) | Rear brake |
| 90113-SA0-025 | Bolt - WHEEL (NAGOYA RASHI) | Rear brake |
| 90113-SM1-005 | Bolt - WHEEL (ROCKNEL FASTENER) | Rear brake |
| 90681-SG0-000 | Circlip - INTERNAL, 84MM | Rear brake |
