AP1

Honda S2000 · 2000 · 2,257 parts · 143 categories
AP1 ×

← Back to categories

2,257 items

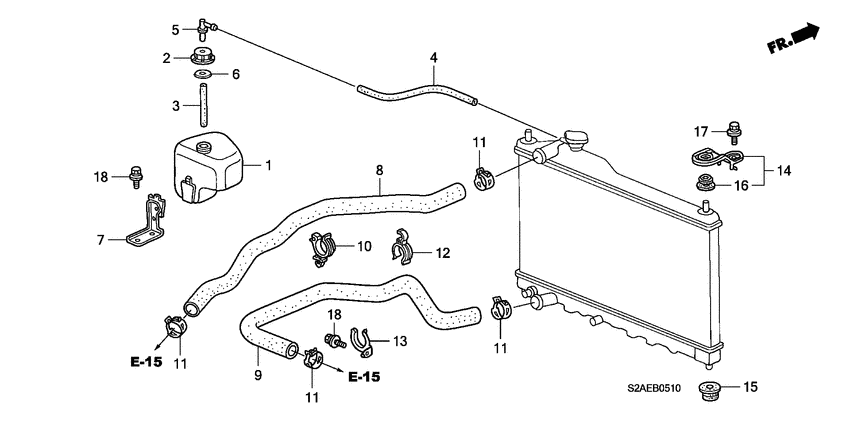

Radiator hose 17
#OEMPart name
1 19101-PCX-000 Tank - RESERVE
2 19102-PM5-A00 Cap - RESERVE TANK
3 19103-PCX-000 Hose - RESERVE TANK
4 19104-PCX-000 Tube - RESERVE TANK
5 19106-PM3-000 Joint - RESERVE TANK
6 19108-PCX-000 Washer - RESERVE TANK
7 19115-PCX-000 Bracket - RESERVE TANK
8 19501-PCX-010 Hose - WATER UPPER
9 19502-PCX-010 Hose - WATER LOWER
10 19503-PY3-003 Clamp - WATER HOSE LOWER
11 19511-PT0-004 Clip - WATER HOSE (36.5MM) (KEIHIN)
11 19511-PH7-003 Clip, HOSE(36.5MM) (CHUO SPRING)
12 19518-PCX-003 Clamp - HOSE
13 19519-PCX-000 Clamp - HOSE
14 74171-SP0-010 Bracket - R. RADIATOR MOUNTING UPPER
15 74172-SM4-970 Cushion - RADIATOR MOUNTING LOWER
16 74173-SJ4-000 Cushion - RADIATOR MOUNTING UPPER
