Search › Model › AP1
AP1

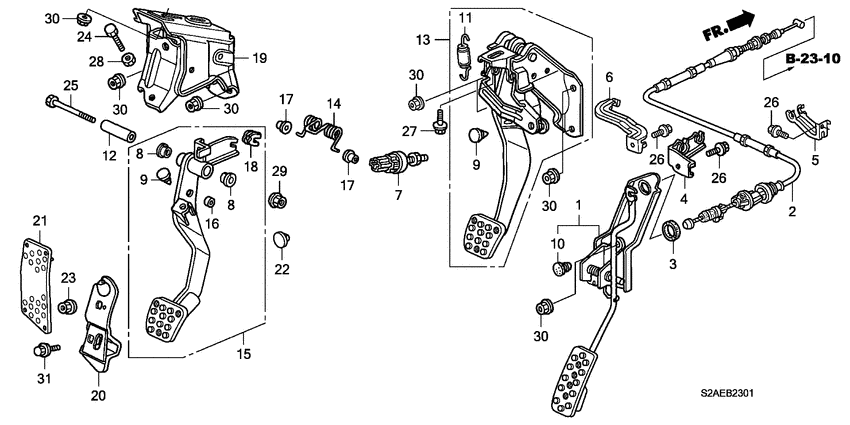

Pedal (RH) 23
| # | OEM | Part name |
|---|---|---|
| 1 | 17800-S2A-033 | Pedal assy - ACCELERATOR |
| 2 | 17910-S2A-J52 | Wire - THROTTLE |
| 3 | 17921-SA4-730 | Seal - THROTTLE CABLE |
| 4 | 17928-S2A-000 | Stay - THROTTLE WIRE |
| 5 | 17931-S2A-010 | Clamp - THROTTLE WIRE |
| 6 | 17932-S2A-000 | Clamp - THROTTLE WIRE |
| 7 | 35350-S2A-003 | Switch assy - STOP |
| 8 | 46504-ST5-300 | Bush - PEDAL |
| 9 | 46505-SA5-000 | Pad - PEDAL STOPPER |
| 10 | 46505-SA7-000 | Pad - PEDAL STOPPER |
| 11 | 46530-S2A-003 | Spring assy - PEDAL RETURN |
| 12 | 46535-SM4-000 | Collar - PEDAL |
| 13 | 46600-S2A-J02 | Pedal assy - BRAKE |
| 14 | 46907-S2A-003 | Spring - CLUTCH RETURN |
| 15 | 46910-S2A-Q03 | Pedal comp - CLUTCH |
| 16 | 46911-SD4-930 | Bush - PEDAL PIN |
| 17 | 46981-S2A-003 | Bush a - CLUTCH ASSISTANT |
| 18 | 46982-S2A-003 | Bush b - ASSISTANT |
| 19 | 46990-S2A-003 | Bracket - CLUTCH PEDAL |
| 20 | 46991-S2A-010 | Bracket comp. - FOOTREST |
| 21 | 46992-S2A-010 | Plate - FOOTREST BRACKET |
| 22 | 75891-611-000 | Cover - DOOR SWITCH |
| 23 | 90301-SP0-003 | Nut - PAINT CUTTING, 6MM |
| OEM | Part name | Category |
|---|---|---|
| 17800-S2A-033 | Pedal assy - ACCELERATOR | Pedal (RH) |
| 17910-S2A-J52 | Wire - THROTTLE | Pedal (RH) |
| 17921-SA4-730 | Seal - THROTTLE CABLE | Pedal (RH) |
| 17928-S2A-000 | Stay - THROTTLE WIRE | Pedal (RH) |
| 17931-S2A-010 | Clamp - THROTTLE WIRE | Pedal (RH) |
| 17932-S2A-000 | Clamp - THROTTLE WIRE | Pedal (RH) |
| 35350-S2A-003 | Switch assy - STOP | Pedal (RH) |
| 46504-ST5-300 | Bush - PEDAL | Pedal (RH) |
| 46505-SA5-000 | Pad - PEDAL STOPPER | Pedal (RH) |
| 46505-SA7-000 | Pad - PEDAL STOPPER | Pedal (RH) |
| 46530-S2A-003 | Spring assy - PEDAL RETURN | Pedal (RH) |
| 46535-SM4-000 | Collar - PEDAL | Pedal (RH) |
| 46600-S2A-J02 | Pedal assy - BRAKE | Pedal (RH) |
| 46907-S2A-003 | Spring - CLUTCH RETURN | Pedal (RH) |
| 46910-S2A-Q03 | Pedal comp - CLUTCH | Pedal (RH) |
| 46911-SD4-930 | Bush - PEDAL PIN | Pedal (RH) |
| 46981-S2A-003 | Bush a - CLUTCH ASSISTANT | Pedal (RH) |
| 46982-S2A-003 | Bush b - ASSISTANT | Pedal (RH) |
| 46990-S2A-003 | Bracket - CLUTCH PEDAL | Pedal (RH) |
| 46991-S2A-010 | Bracket comp. - FOOTREST | Pedal (RH) |
| 46992-S2A-010 | Plate - FOOTREST BRACKET | Pedal (RH) |
| 75891-611-000 | Cover - DOOR SWITCH | Pedal (RH) |
| 90301-SP0-003 | Nut - PAINT CUTTING, 6MM | Pedal (RH) |
