AP1

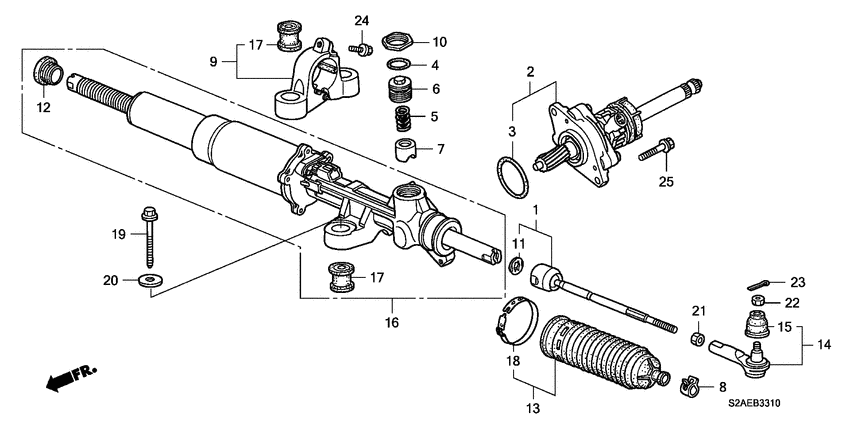

P.s. gear box (LH) 20
| # | OEM | Part name |
|---|---|---|
| 1 | 53010-S2A-003 | End set - RACK |
| 2 | 53101-S2A-A03 | Sensor assy, TORQUE |
| 3 | 53106-S0A-003 | O-ring - 54.4X3.1 |
| 4 | 53412-SM4-J61 | O-ring - RACK GUIDE (NOK) |
| 5 | 53413-SP0-010 | Spring - RACK GUIDE PRESSURE |
| 6 | 53414-SM4-J60 | Screw - RACK GUIDE |
| 7 | 53416-S2A-J01 | Guide comp - STEERING RACK |
| 8 | 53434-S84-A01 | Clip - STEERING TIE ROD |
| 9 | 53438-S2A-013 | Bracket comp. |
| 10 | 53458-SM4-J60 | Nut - RACK SCREW LOCK |
| 11 | 53536-S84-A01 | Washer - TIE ROD LOCK |
| 12 | 53537-SW5-003 | Rubber comp - STOPPER |
| 13 | 53537-S2A-003 | Dust seal a - TIE ROD |
| 14 | 53540-S47-951 | End comp - TIE ROD |
| 15 | 53546-S30-005 | Boot - TIE ROD END |
| 16 | 53602-S2A-A02 | Box comp - STEERING GEAR |
| 17 | 53685-SDA-A01 | Bush - GEAR BOX MOUNTING |
| 18 | 53892-S2A-003 | Band - BELLOWS |
| 19 | 90108-S2A-003 | Bolt - GEAR BOX MOUNTING (10X107) |
| 20 | 90506-S0A-020 | Washer - PLAIN, 10MM |
| OEM | Part name | Category |
|---|---|---|
| 53010-S2A-003 | End set - RACK | P.s. gear box (LH) |
| 53101-S2A-A03 | Sensor assy, TORQUE | P.s. gear box (LH) |
| 53106-S0A-003 | O-ring - 54.4X3.1 | P.s. gear box (LH) |
| 53412-SM4-J61 | O-ring - RACK GUIDE (NOK) | P.s. gear box (LH) |
| 53413-SP0-010 | Spring - RACK GUIDE PRESSURE | P.s. gear box (LH) |
| 53414-SM4-J60 | Screw - RACK GUIDE | P.s. gear box (LH) |
| 53416-S2A-J01 | Guide comp - STEERING RACK | P.s. gear box (LH) |
| 53434-S84-A01 | Clip - STEERING TIE ROD | P.s. gear box (LH) |
| 53438-S2A-013 | Bracket comp. | P.s. gear box (LH) |
| 53458-SM4-J60 | Nut - RACK SCREW LOCK | P.s. gear box (LH) |
| 53536-S84-A01 | Washer - TIE ROD LOCK | P.s. gear box (LH) |
| 53537-S2A-003 | Dust seal a - TIE ROD | P.s. gear box (LH) |
| 53537-SW5-003 | Rubber comp - STOPPER | P.s. gear box (LH) |
| 53540-S47-951 | End comp - TIE ROD | P.s. gear box (LH) |
| 53546-S30-005 | Boot - TIE ROD END | P.s. gear box (LH) |
| 53602-S2A-A02 | Box comp - STEERING GEAR | P.s. gear box (LH) |
| 53685-SDA-A01 | Bush - GEAR BOX MOUNTING | P.s. gear box (LH) |
| 53892-S2A-003 | Band - BELLOWS | P.s. gear box (LH) |
| 90108-S2A-003 | Bolt - GEAR BOX MOUNTING (10X107) | P.s. gear box (LH) |
| 90506-S0A-020 | Washer - PLAIN, 10MM | P.s. gear box (LH) |
