Search › Model › AP1
AP1

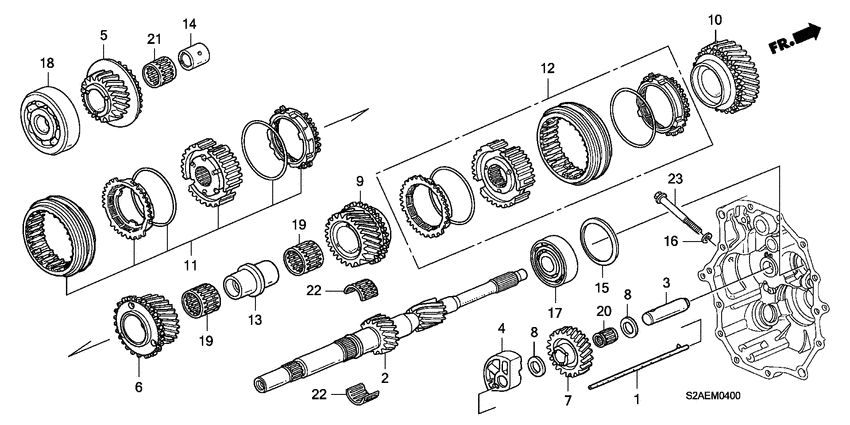

Mainshaft 22
| # | OEM | Part name |
|---|---|---|
| 1 | 21177-PCY-000 | Pipe - OIL GUIDE |
| 2 | 23210-PCY-010 | Mainshaft comp. |
| 3 | 23261-PCY-000 | Shaft - REVERSE IDLE GEAR |
| 4 | 23262-PCY-000 | Holder - REVERSE SHAFT |
| 5 | 23440-PCY-010 | Gear comp - MAINSHAFT THIRD |
| 6 | 23451-PCY-010 | Gear - MAINSHAFT FOURTH |
| 7 | 23541-PCY-000 | Gear - REVERSE IDLE |
| 8 | 23546-PCY-000 | Washer - THRUST, 20X33X2 |
| 9 | 23581-PCY-010 | Gear - MAINSHAFT FIFTH |
| 10 | 23591-PCY-010 | Gear - MAINSHAFT SIXTH |
| 11 | 23623-PCY-316 | Sleeve set - SYNCHRONIZER (3-4) |
| 12 | 23626-PCY-316 | Sleeve set - SYNCHRONIZER (5-6) |
| 13 | 23917-PCY-000 | Collar - DISTANCE, 35X42X69 |
| 14 | 23919-PCY-000 | Collar - DISTANCE, 28X35X35.2 |
| 15 | 23927-PYZ-000 | Washer - SPRING, 64MM |
| 16 | 90471-580-000 | Packing - 8MM |
| 17 | 91002-PCY-003 | Bearing - BALL, 28X64X18 |
| 18 | 91003-PCY-003 | Bearing - BALL, 28X82X22 |
| 19 | 91105-PCY-003 | Bearing - NEEDLE, 42X47X30.5 |
| 20 | 91106-PY5-008 | Bearing - NEEDLE, 20X25X26.5 |
| 21 | 91107-PCY-013 | Bearing - NEEDLE, 35X40X35 |
| 22 | 91109-PCY-003 | Bearing - NEEDLE, 39X44X26 |
| OEM | Part name | Category |
|---|---|---|
| 21177-PCY-000 | Pipe - OIL GUIDE | Mainshaft |
| 23210-PCY-010 | Mainshaft comp. | Mainshaft |
| 23261-PCY-000 | Shaft - REVERSE IDLE GEAR | Mainshaft |
| 23262-PCY-000 | Holder - REVERSE SHAFT | Mainshaft |
| 23440-PCY-010 | Gear comp - MAINSHAFT THIRD | Mainshaft |
| 23451-PCY-010 | Gear - MAINSHAFT FOURTH | Mainshaft |
| 23541-PCY-000 | Gear - REVERSE IDLE | Mainshaft |
| 23546-PCY-000 | Washer - THRUST, 20X33X2 | Mainshaft |
| 23581-PCY-010 | Gear - MAINSHAFT FIFTH | Mainshaft |
| 23591-PCY-010 | Gear - MAINSHAFT SIXTH | Mainshaft |
| 23623-PCY-316 | Sleeve set - SYNCHRONIZER (3-4) | Mainshaft |
| 23626-PCY-316 | Sleeve set - SYNCHRONIZER (5-6) | Mainshaft |
| 23917-PCY-000 | Collar - DISTANCE, 35X42X69 | Mainshaft |
| 23919-PCY-000 | Collar - DISTANCE, 28X35X35.2 | Mainshaft |
| 23927-PYZ-000 | Washer - SPRING, 64MM | Mainshaft |
| 90471-580-000 | Packing - 8MM | Mainshaft |
| 91002-PCY-003 | Bearing - BALL, 28X64X18 | Mainshaft |
| 91003-PCY-003 | Bearing - BALL, 28X82X22 | Mainshaft |
| 91105-PCY-003 | Bearing - NEEDLE, 42X47X30.5 | Mainshaft |
| 91106-PY5-008 | Bearing - NEEDLE, 20X25X26.5 | Mainshaft |
| 91107-PCY-013 | Bearing - NEEDLE, 35X40X35 | Mainshaft |
| 91109-PCY-003 | Bearing - NEEDLE, 39X44X26 | Mainshaft |
