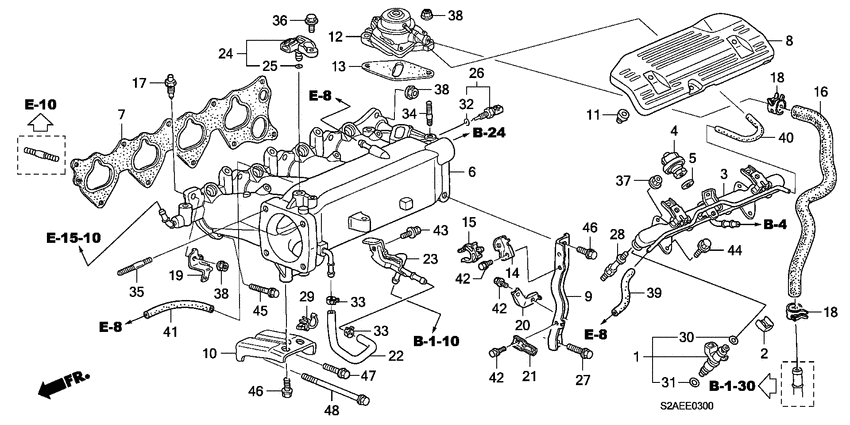

| 16450-PCX-G01 |
Injector assy - FUEL |
Intake manifold |
| 16451-PLC-000 |
Clip - INJECTOR |
Intake manifold |
| 16610-PCX-G01 |
Pipe comp - FUEL |
Intake manifold |
| 16680-PZX-003 |
Damper assy. - PULSATION |
Intake manifold |
| 16705-PD1-003 |
Gasket - SILENCER |
Intake manifold |
| 17100-PCX-G00 |
Manifold comp - INTAKE |
Intake manifold |
| 17105-PCX-004 |
Gasket - INTAKE MANIFOLD |
Intake manifold |
| 17112-PZX-000 |
Cover - INTAKE MANIFOLD |
Intake manifold |
| 17125-PCX-000 |
Stay a - INTAKE MANIFOLD |
Intake manifold |
| 17126-PCX-010 |
Stay comp. b - INTAKE MANIFOLD |
Intake manifold |
| 17213-P8A-A00 |
Rubber - INTAKE MANIFOLD COVER MOUNTING |
Intake manifold |
| 18780-PCX-A01 |
Valve assy. - SECOND AIR |
Intake manifold |
| 18781-PCX-000 |
Packing - SECOND AIR VALVE |
Intake manifold |
| 18792-PCX-000 |
Stay - HOSE CLAMP |
Intake manifold |
| 18794-PCX-003 |
Clamp a - AIR HOSE |
Intake manifold |
| 18799-PCX-000 |
Hose d - SECOND AIR |
Intake manifold |
| 19516-PC1-000 |
Bolt - BREATHING WATER |
Intake manifold |
| 19517-KM9-000 |
Clip - WATER HOSE |
Intake manifold |
| 32111-PCX-000 |
Stay - CRANK SENSOR |
Intake manifold |
| 32115-PCX-000 |
Stay d - ENGINE HARNESS |
Intake manifold |
| 32413-S2A-000 |
Bracket - STARTER CABLE |
Intake manifold |
| 36175-PCX-J00 |
Tube - PURGE |
Intake manifold |
| 36177-PCX-J00 |
Pipe - PURGE |
Intake manifold |
| 37830-RNA-A01 |
Sensor assy - MAP |
Intake manifold |
| 37835-PGK-A01 |
O-ring |
Intake manifold |
| 37870-RTA-005 |
Sensor assy - WATER TEMP (DENSO) |
Intake manifold |
| 90007-PCX-000 |
Bolt-washer - 10X25 |
Intake manifold |
| 90027-PZX-000 |
Bolt - FUEL PIPE |
Intake manifold |
| 90679-679-004 |
Clip - CABLE |
Intake manifold |
| 91301-PLC-000 |
O-ring - 7.47X3.6 |
Intake manifold |
| 91302-PNA-003 |
O-ring - 7.45X3.61(NOK) |
Intake manifold |
| 91307-RTA-005 |
O-ring - DENSO |
Intake manifold |
| 91406-SAA-000 |
Clamp - TUBE (D12) |
Intake manifold |
