AP1

Honda S2000 · 2000 · 2,257 parts · 143 categories

← Back to categories

2,257 items

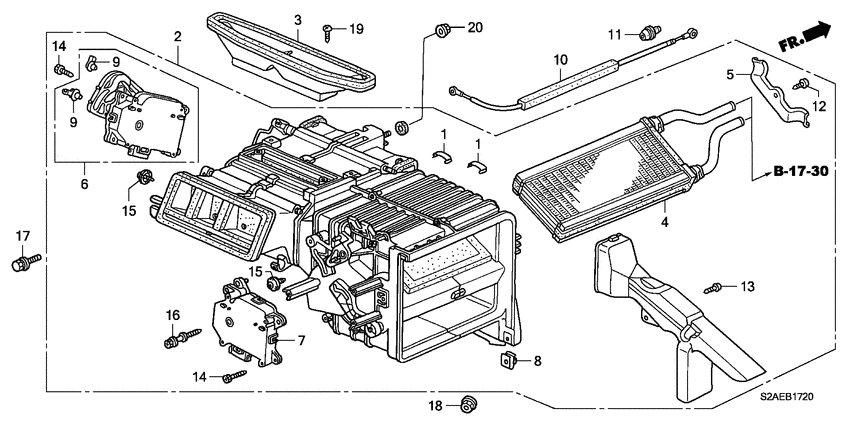

Heater unit (LH) 18

#	OEM	Part name
1	39246-671-003	Clamp - CASE HOLD
2	79100-S2A-A02	Heater unit
3	79105-S2A-A01	Defroster - OUTLET
4	79110-S2A-A01	Core comp - HEATER
5	79116-S2A-003	Holder
6	79140-S2A-A01	Motor assy. - MODE
7	79160-S2A-A01	Motor assy. - AIR MIX
8	79191-SZ3-A01	Nut - HOLDER
9	79195-SF1-003	Holder - ROD
10	79544-S2A-A01	Cable - WATER VALVE CONTROL
11	79770-SE0-000	Grommet - WATER VALVE CABLE
12	90122-SR3-003	Screw - TAPPING, 5X12
13	90127-SX0-003	Screw - TAPPING, 4X16
14	90127-S84-003	Screw - TAPPING, 4X16
15	90133-SR3-003	Screw-washer - 4X16
16	90133-S2A-003	Screw-washer - 4X16
17	90156-SH3-000	Bolt-washer - 6X24
18	90321-SV4-003	Nut-washer - 6MM (PAINT CUTTING)

OEM	Part name	Category
39246-671-003	Clamp - CASE HOLD	Heater unit (LH)
79100-S2A-A02	Heater unit	Heater unit (LH)
79105-S2A-A01	Defroster - OUTLET	Heater unit (LH)
79110-S2A-A01	Core comp - HEATER	Heater unit (LH)
79116-S2A-003	Holder	Heater unit (LH)
79140-S2A-A01	Motor assy. - MODE	Heater unit (LH)
79160-S2A-A01	Motor assy. - AIR MIX	Heater unit (LH)
79191-SZ3-A01	Nut - HOLDER	Heater unit (LH)
79195-SF1-003	Holder - ROD	Heater unit (LH)
79544-S2A-A01	Cable - WATER VALVE CONTROL	Heater unit (LH)
79770-SE0-000	Grommet - WATER VALVE CABLE	Heater unit (LH)
90122-SR3-003	Screw - TAPPING, 5X12	Heater unit (LH)
90127-S84-003	Screw - TAPPING, 4X16	Heater unit (LH)
90127-SX0-003	Screw - TAPPING, 4X16	Heater unit (LH)
90133-S2A-003	Screw-washer - 4X16	Heater unit (LH)
90133-SR3-003	Screw-washer - 4X16	Heater unit (LH)
90156-SH3-000	Bolt-washer - 6X24	Heater unit (LH)
90321-SV4-003	Nut-washer - 6MM (PAINT CUTTING)	Heater unit (LH)

Source: Public OEM parts-catalog data
Variants: 2 / 43
Category: 143
Collected: 2026-07-22
