AP1

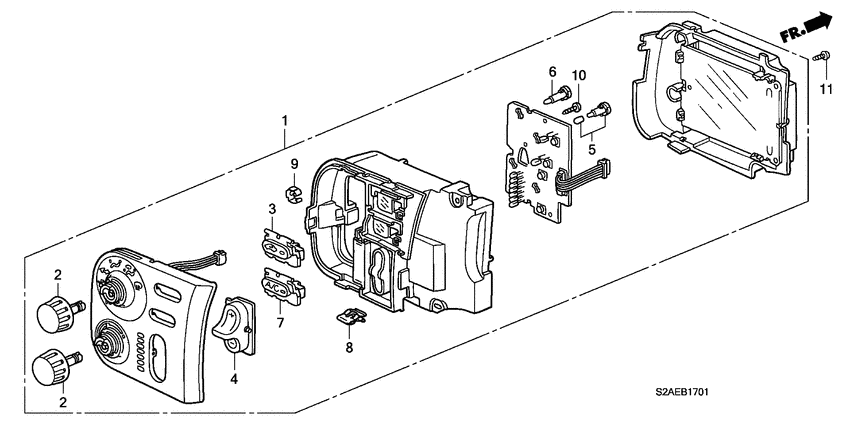

Heater control (RH) 9
| # | OEM | Part name |
|---|---|---|
| 1 | 79500-S2A-921 | Control assy. - HEATER |
| 2 | 79601-S2A-911 | Knob - TURN |
| 3 | 79602-S2A-911 | Knob - REC |
| 4 | 79608-S2A-911 | Knob - FAN |
| 5 | 79628-S2A-003 | Bulb - NEO WEDGE (14V 100MA) |
| 6 | 79670-SL0-A01 | Bulb - NEO WEDGE (14V 100MA) |
| 7 | 80411-S2A-911 | Knob - AIR CONDITIONER |
| 8 | 90666-SM4-003 | Clip - SNAP FITTING |
| 9 | 91640-SM4-003 | Grommet - SCREW, 4MM |
| OEM | Part name | Category |
|---|---|---|
| 79500-S2A-921 | Control assy. - HEATER | Heater control (RH) |
| 79601-S2A-911 | Knob - TURN | Heater control (RH) |
| 79602-S2A-911 | Knob - REC | Heater control (RH) |
| 79608-S2A-911 | Knob - FAN | Heater control (RH) |
| 79628-S2A-003 | Bulb - NEO WEDGE (14V 100MA) | Heater control (RH) |
| 79670-SL0-A01 | Bulb - NEO WEDGE (14V 100MA) | Heater control (RH) |
| 80411-S2A-911 | Knob - AIR CONDITIONER | Heater control (RH) |
| 90666-SM4-003 | Clip - SNAP FITTING | Heater control (RH) |
| 91640-SM4-003 | Grommet - SCREW, 4MM | Heater control (RH) |
