Search › Model › AP1
AP1

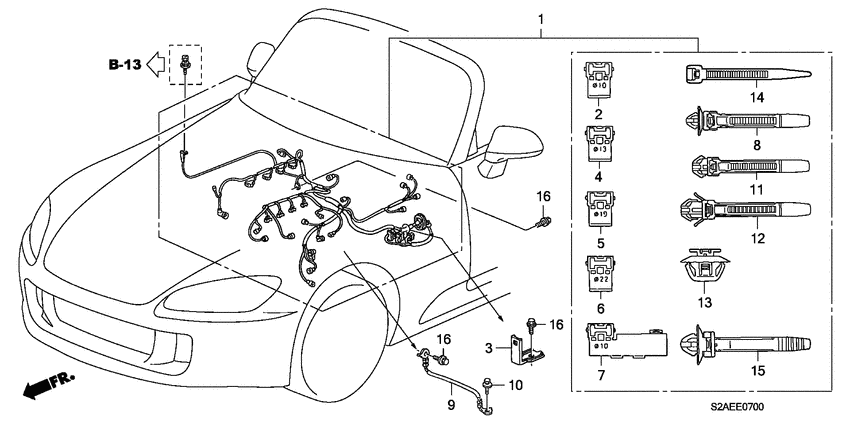

Engine wire harness (LH) 15
| # | OEM | Part name |
|---|---|---|
| 1 | 32110-PCX-G03 | Harness - ENGINE WIRE |
| 2 | 32115-P64-003 | Holder - CORRUGATED (DARK BLUE) (10MM) |
| 3 | 32116-PCX-A00 | Stay e - ENGINE HARNESS |
| 4 | 32116-P64-003 | Holder - CORRUGATED (DARK GREEN) (13MM) |
| 5 | 32118-P72-003 | Holder - CORRUGATED(DARK GREEN) (19MM) |
| 6 | 32119-P2E-A01 | Holder - CORRUGATED (DARK BLUE) (22MM) |
| 7 | 32132-P8C-A01 | Holder - HARNESS (DARK BLUE) (10MM) |
| 8 | 32134-SM4-003 | Band - HARNESS OFFSET (10) (BROWN) (122.5MM) |
| 9 | 32610-S2A-900 | Cable - SUB EARTH |
| 10 | 90149-SE0-003 | Bolt - EARTH, 6X16 |
| 11 | 91506-RTA-003 | Clip A - HARNESS BAND (DARK VIOLET)(129.4MM) |
| 12 | 91507-RTA-003 | Clip b - HARNESS BAND (DARK GREEN) (129.4MM) |
| 13 | 91533-S04-003 | Clip - COUPLER (NATURAL) |
| 14 | 91551-PNA-003 | Band - WIRE HARNESS (BLACK) (172MM) |
| 15 | 91558-ST5-003 | Clip - HARNESS BAND(NATURAL) (135MM)(7MM HOLE) |
| OEM | Part name | Category |
|---|---|---|
| 32110-PCX-G03 | Harness - ENGINE WIRE | Engine wire harness (LH) |
| 32115-P64-003 | Holder - CORRUGATED (DARK BLUE) (10MM) | Engine wire harness (LH) |
| 32116-P64-003 | Holder - CORRUGATED (DARK GREEN) (13MM) | Engine wire harness (LH) |
| 32116-PCX-A00 | Stay e - ENGINE HARNESS | Engine wire harness (LH) |
| 32118-P72-003 | Holder - CORRUGATED(DARK GREEN) (19MM) | Engine wire harness (LH) |
| 32119-P2E-A01 | Holder - CORRUGATED (DARK BLUE) (22MM) | Engine wire harness (LH) |
| 32132-P8C-A01 | Holder - HARNESS (DARK BLUE) (10MM) | Engine wire harness (LH) |
| 32134-SM4-003 | Band - HARNESS OFFSET (10) (BROWN) (122.5MM) | Engine wire harness (LH) |
| 32610-S2A-900 | Cable - SUB EARTH | Engine wire harness (LH) |
| 90149-SE0-003 | Bolt - EARTH, 6X16 | Engine wire harness (LH) |
| 91506-RTA-003 | Clip A - HARNESS BAND (DARK VIOLET)(129.4MM) | Engine wire harness (LH) |
| 91507-RTA-003 | Clip b - HARNESS BAND (DARK GREEN) (129.4MM) | Engine wire harness (LH) |
| 91533-S04-003 | Clip - COUPLER (NATURAL) | Engine wire harness (LH) |
| 91551-PNA-003 | Band - WIRE HARNESS (BLACK) (172MM) | Engine wire harness (LH) |
| 91558-ST5-003 | Clip - HARNESS BAND(NATURAL) (135MM)(7MM HOLE) | Engine wire harness (LH) |
