Search › Model › AP1
AP1

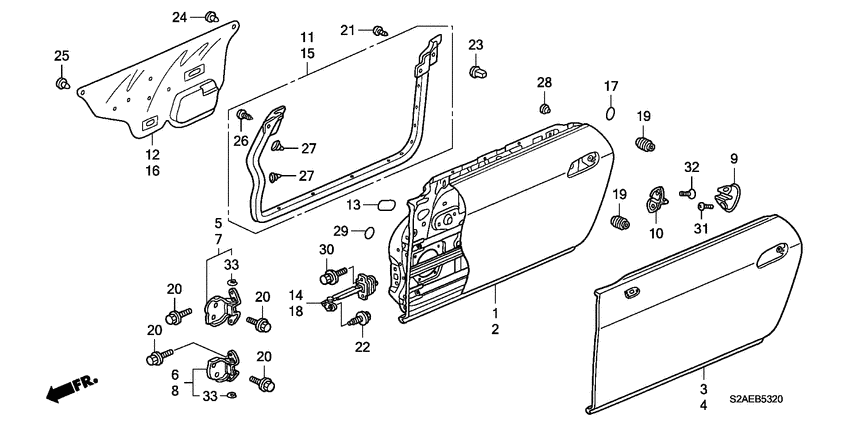

Door panels 22
| # | OEM | Part name |
|---|---|---|
| 9 | 72143-SR2-010 | Rubber - DOOR WEDGE |
| 10 | 72144-SR2-010 | Wedge - DOOR |
| 11 | 72310-S2A-023 | Weatherstrip - R. DOOR |
| 12 | 72321-S2A-000 | Seal, R. FR. DOOR HOLE |
| 13 | 72327-SS0-000 | Seal - DOOR UPPER HOLE |
| 14 | 72340-S2A-003 | Checker comp. - R. DOOR |
| 15 | 72350-S2A-023 | Weatherstrip - L. DOOR |
| 16 | 72361-S2A-000 | Seal, L. FR. DOOR HOLE |
| 17 | 72367-SF4-000 | Seal - DOOR PANEL |
| 18 | 72380-S2A-003 | Checker comp. - L. DOOR |
| 19 | 75891-SA7-000 | Stopper - DOOR |
| 20 | 90101-SZ3-000 | Bolt - FLANGE, 8X22 (8.5MM) |
| 21 | 90137-SD2-003 | Screw - TAPPING, 4X12(SUS) |
| 22 | 90141-S04-000 | Bolt - FLANGE, 8X22 |
| 23 | 90665-SM4-000 | Grommet - SCREW, 4MM (YELLOW) |
| 24 | 90686-692-003 | Cap - LINING MOUNT |
| 25 | 91562-SM4-013 | Grommet - DOOR LINING |
| 26 | 91567-SR2-013 | Clip |
| 27 | 91568-SR2-003 | Clip - DOOR WEATHERSTRIP |
| 27 | 91530-SP1-003 | Clip A - DOOR WEATHERSTRIP |
| 28 | 91601-SB4-000 | Stopper - DOOR |
| 29 | 91657-SP0-000 | Seal c - DOOR PANEL HOLE (25MM) |
| OEM | Part name | Category |
|---|---|---|
| 72143-SR2-010 | Rubber - DOOR WEDGE | Door panels |
| 72144-SR2-010 | Wedge - DOOR | Door panels |
| 72310-S2A-023 | Weatherstrip - R. DOOR | Door panels |
| 72321-S2A-000 | Seal, R. FR. DOOR HOLE | Door panels |
| 72327-SS0-000 | Seal - DOOR UPPER HOLE | Door panels |
| 72340-S2A-003 | Checker comp. - R. DOOR | Door panels |
| 72350-S2A-023 | Weatherstrip - L. DOOR | Door panels |
| 72361-S2A-000 | Seal, L. FR. DOOR HOLE | Door panels |
| 72367-SF4-000 | Seal - DOOR PANEL | Door panels |
| 72380-S2A-003 | Checker comp. - L. DOOR | Door panels |
| 75891-SA7-000 | Stopper - DOOR | Door panels |
| 90101-SZ3-000 | Bolt - FLANGE, 8X22 (8.5MM) | Door panels |
| 90137-SD2-003 | Screw - TAPPING, 4X12(SUS) | Door panels |
| 90141-S04-000 | Bolt - FLANGE, 8X22 | Door panels |
| 90665-SM4-000 | Grommet - SCREW, 4MM (YELLOW) | Door panels |
| 90686-692-003 | Cap - LINING MOUNT | Door panels |
| 91530-SP1-003 | Clip A - DOOR WEATHERSTRIP | Door panels |
| 91562-SM4-013 | Grommet - DOOR LINING | Door panels |
| 91567-SR2-013 | Clip | Door panels |
| 91568-SR2-003 | Clip - DOOR WEATHERSTRIP | Door panels |
| 91601-SB4-000 | Stopper - DOOR | Door panels |
| 91657-SP0-000 | Seal c - DOOR PANEL HOLE (25MM) | Door panels |
