AP1

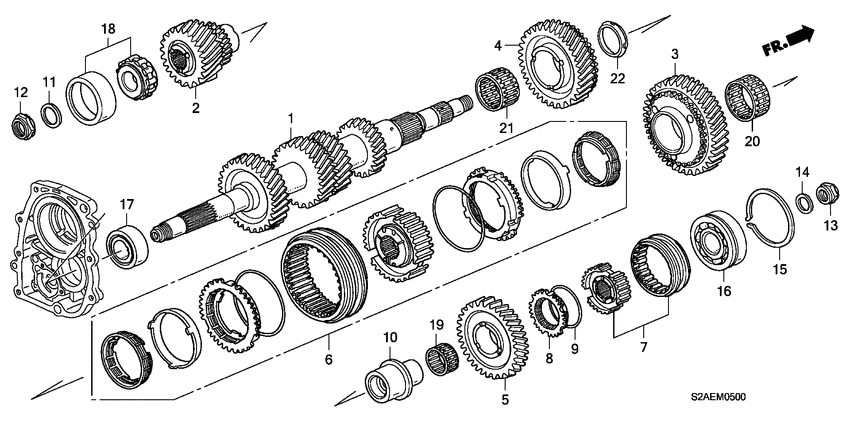

Countershaft 22
| # | OEM | Part name |
|---|---|---|
| 1 | 23221-PCY-010 | Countershaft |
| 2 | 23241-PCY-000 | Gear - SECONDARY DRIVE |
| 3 | 23421-PCY-010 | Gear - COUNTERSHAFT LOW |
| 4 | 23431-PCY-020 | Gear, COUNTERSHAFT SECOND |
| 5 | 23521-PCY-000 | Gear - COUNTERSHAFT REVERSE |
| 6 | 23618-PCY-326 | Sleeve set - SYNCHRONIZER (1-2) |
| 7 | 23627-PCY-000 | Sleeve set - REVERSE HUB |
| 8 | 23643-PG1-912 | Ring - BLOCKING, 50S |
| 9 | 23652-PB6-000 | Spring - SYNCHRONIZER (50MM) |
| 10 | 23918-PCY-000 | Collar - DISTANCE, 31X40X38X51X5 |
| 11 | 23925-PCY-000 | Washer - SPRING, 29MM |
| 12 | 90202-PCY-000 | Nut - 29MM |
| 13 | 90203-PCY-000 | Nut - HEX., 27MM |
| 14 | 90402-PL9-000 | Washer - SPRING, 27MM |
| 15 | 90609-PC8-000 | Ring - SNAP, 68MM |
| 16 | 91004-PCY-005 | Bearing - BALL, 28X68X18 |
| 17 | 91102-PCY-003 | Bearing - NEEDLE, 34X56X20 |
| 18 | 91104-PCY-003 | Bearing - NEEDLE, 30X64X20 |
| 19 | 91104-P21-008 | Bearing - NEEDLE, 38X43X26 (NTN) |
| 20 | 91110-PCY-003 | Bearing - NEEDLE, 51X57X23 |
| 21 | 91111-PCY-003 | Bearing - NEEDLE, 44X50X28 |
| 22 | 91211-PH8-T01 | Damper - FRICTION (LOW) (KOYO) |
| OEM | Part name | Category |
|---|---|---|
| 23221-PCY-010 | Countershaft | Countershaft |
| 23241-PCY-000 | Gear - SECONDARY DRIVE | Countershaft |
| 23421-PCY-010 | Gear - COUNTERSHAFT LOW | Countershaft |
| 23431-PCY-020 | Gear, COUNTERSHAFT SECOND | Countershaft |
| 23521-PCY-000 | Gear - COUNTERSHAFT REVERSE | Countershaft |
| 23618-PCY-326 | Sleeve set - SYNCHRONIZER (1-2) | Countershaft |
| 23627-PCY-000 | Sleeve set - REVERSE HUB | Countershaft |
| 23643-PG1-912 | Ring - BLOCKING, 50S | Countershaft |
| 23652-PB6-000 | Spring - SYNCHRONIZER (50MM) | Countershaft |
| 23918-PCY-000 | Collar - DISTANCE, 31X40X38X51X5 | Countershaft |
| 23925-PCY-000 | Washer - SPRING, 29MM | Countershaft |
| 90202-PCY-000 | Nut - 29MM | Countershaft |
| 90203-PCY-000 | Nut - HEX., 27MM | Countershaft |
| 90402-PL9-000 | Washer - SPRING, 27MM | Countershaft |
| 90609-PC8-000 | Ring - SNAP, 68MM | Countershaft |
| 91004-PCY-005 | Bearing - BALL, 28X68X18 | Countershaft |
| 91102-PCY-003 | Bearing - NEEDLE, 34X56X20 | Countershaft |
| 91104-P21-008 | Bearing - NEEDLE, 38X43X26 (NTN) | Countershaft |
| 91104-PCY-003 | Bearing - NEEDLE, 30X64X20 | Countershaft |
| 91110-PCY-003 | Bearing - NEEDLE, 51X57X23 | Countershaft |
| 91111-PCY-003 | Bearing - NEEDLE, 44X50X28 | Countershaft |
| 91211-PH8-T01 | Damper - FRICTION (LOW) (KOYO) | Countershaft |
