AP1

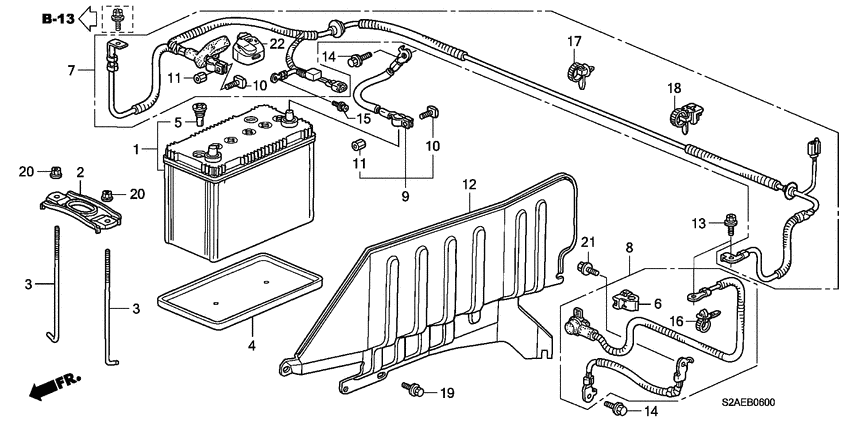

Battery (LH) 19
| # | OEM | Part name |
|---|---|---|
| 1 | 31500-SH3-G51 | Battery assy - 55B24R<S>-MF) (PANASONIC |
| 2 | 31512-SR3-000 | Plate - BATTERY SETTING |
| 3 | 31513-SR3-000 | Bolt - BATTERY SETTING |
| 4 | 31521-SR3-000 | Box assy - BATTERY |
| 5 | 31542-SA5-665 | Plug - VENT (MF) (PANASONIC) |
| 6 | 32115-P64-003 | Holder - CORRUGATED (DARK BLUE) (10MM) |
| 7 | 32125-S2A-G02 | Sub cord - EPS |
| 8 | 32410-S2A-A01 | Cable assy - STARTER |
| 9 | 32600-S2A-A00 | Cable assy - BATTERY EARTH |
| 10 | 32601-SK7-900 | Bolt - BATTERY TERMINAL |
| 11 | 32602-SK7-900 | Nut - BATTERY TERMINAL |
| 12 | 57255-S2A-020 | Plate, BAFFLE |
| 13 | 90130-SR3-003 | Bolt - 5X13 |
| 14 | 90149-SE0-003 | Bolt - EARTH, 6X16 |
| 15 | 90153-SE0-003 | Bolt - EARTH, 6X12 |
| 16 | 91540-S30-003 | Clip - HARNESS BAND(NATURAL) (151.5MM) |
| 17 | 91541-S0A-003 | Clip - HARNESS BAND(BLACK) (145MM) |
| 18 | 91547-SH3-003 | Clip - BAND(NATURAL)(160MM) |
| 22 | 32418-RBG-300 | Cover - BATTERY TERMINAL |
| OEM | Part name | Category |
|---|---|---|
| 31500-SH3-G51 | Battery assy - 55B24R<S>-MF) (PANASONIC | Battery (LH) |
| 31512-SR3-000 | Plate - BATTERY SETTING | Battery (LH) |
| 31513-SR3-000 | Bolt - BATTERY SETTING | Battery (LH) |
| 31521-SR3-000 | Box assy - BATTERY | Battery (LH) |
| 31542-SA5-665 | Plug - VENT (MF) (PANASONIC) | Battery (LH) |
| 32115-P64-003 | Holder - CORRUGATED (DARK BLUE) (10MM) | Battery (LH) |
| 32125-S2A-G02 | Sub cord - EPS | Battery (LH) |
| 32410-S2A-A01 | Cable assy - STARTER | Battery (LH) |
| 32418-RBG-300 | Cover - BATTERY TERMINAL | Battery (LH) |
| 32600-S2A-A00 | Cable assy - BATTERY EARTH | Battery (LH) |
| 32601-SK7-900 | Bolt - BATTERY TERMINAL | Battery (LH) |
| 32602-SK7-900 | Nut - BATTERY TERMINAL | Battery (LH) |
| 57255-S2A-020 | Plate, BAFFLE | Battery (LH) |
| 90130-SR3-003 | Bolt - 5X13 | Battery (LH) |
| 90149-SE0-003 | Bolt - EARTH, 6X16 | Battery (LH) |
| 90153-SE0-003 | Bolt - EARTH, 6X12 | Battery (LH) |
| 91540-S30-003 | Clip - HARNESS BAND(NATURAL) (151.5MM) | Battery (LH) |
| 91541-S0A-003 | Clip - HARNESS BAND(BLACK) (145MM) | Battery (LH) |
| 91547-SH3-003 | Clip - BAND(NATURAL)(160MM) | Battery (LH) |
