AP1

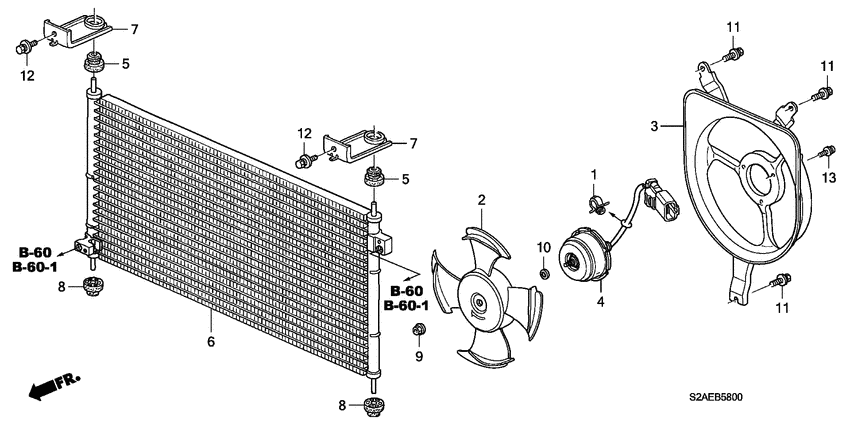

Air conditioner (CONDENSER) 11
| # | OEM | Part name |
|---|---|---|
| 1 | 32175-647-920 | Clip - WIRE HARNESS |
| 1 | 30701-883-000 | Clip, high tension cord (8mm) |
| 2 | 38611-PAA-A01 | Fan comp - COOLING (MITSUBA) |
| 3 | 38615-PCX-010 | Shroud comp. |
| 4 | 38616-PCA-004 | Motor - COOLING FAN |
| 5 | 80107-SS0-000 | Mount - CONDENSER UPPER |
| 6 | 80110-S2A-900 | AC Condenser |
| 7 | 80111-S2A-000 | Bracket - CONDENSER UPPER |
| 8 | 80175-SE0-000 | Mount - CONDENSER |
| 9 | 90041-PAA-A01 | Nut - TOOTHED, 5MM |
| 10 | 90430-PAA-A01 | Washer - PLAIN, 8MM |
| OEM | Part name | Category |
|---|---|---|
| 30701-883-000 | Clip, high tension cord (8mm) | Air conditioner (CONDENSER) |
| 32175-647-920 | Clip - WIRE HARNESS | Air conditioner (CONDENSER) |
| 38611-PAA-A01 | Fan comp - COOLING (MITSUBA) | Air conditioner (CONDENSER) |
| 38615-PCX-010 | Shroud comp. | Air conditioner (CONDENSER) |
| 38616-PCA-004 | Motor - COOLING FAN | Air conditioner (CONDENSER) |
| 80107-SS0-000 | Mount - CONDENSER UPPER | Air conditioner (CONDENSER) |
| 80110-S2A-900 | AC Condenser | Air conditioner (CONDENSER) |
| 80111-S2A-000 | Bracket - CONDENSER UPPER | Air conditioner (CONDENSER) |
| 80175-SE0-000 | Mount - CONDENSER | Air conditioner (CONDENSER) |
| 90041-PAA-A01 | Nut - TOOTHED, 5MM | Air conditioner (CONDENSER) |
| 90430-PAA-A01 | Washer - PLAIN, 8MM | Air conditioner (CONDENSER) |
