Search › Model › ANT10

ANT10

Toyota SCION-TC · 2004 · 3,766 parts · 183 categories

← Back to categories

3,766 items

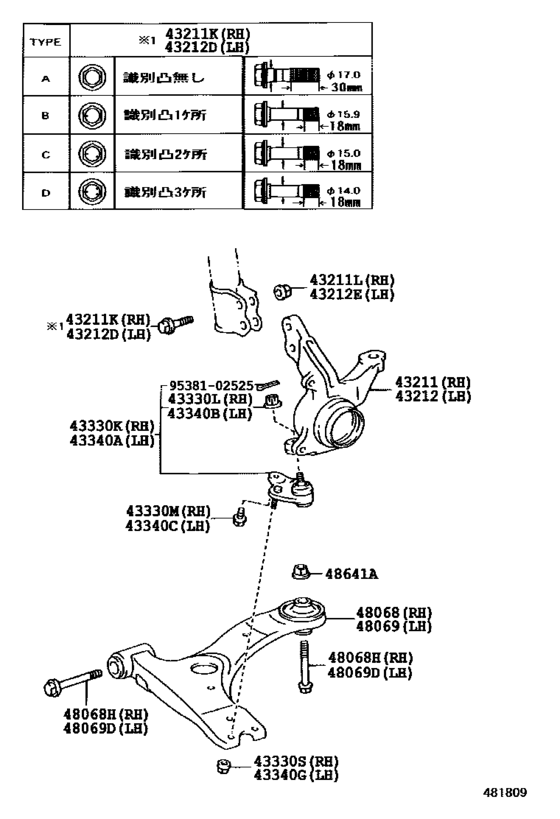

Front Axle Arm & Steering Knuckle ([05.2004 - ] (0405- )) 16

#	OEM	Part name
43211	43211-21040	Knuckle, Steering, Rh
43211	90105-17008	Bolt (For Steering Knuckle Rh)
43211	90105-17009	Bolt (For Steering Knuckle Rh)
43211	90105-17010	Bolt (For Steering Knuckle Rh)
43211	90105-17011	Bolt (For Steering Knuckle Rh)
43211	90178-17001	Nut (For Steering Knuckle Rh)
43212	43212-21040	Knuckle, Steering, Lh
43330	43330-29425	Joint Assy, Lower Ball, Front
43330	90171-14003	Nut, Castle (For Front Lower Ball Joint Setting)
43330	90105-12336	Bolt (For Front Lower Ball Joint Rh)
43330	90178-12015	Nut (For Front Lower Ball Joint Rh)
48068	48068-21020	Arm Sub-Assy, Front Suspension, Lower No.1 Rh
48068	90119-14108	Bolt(For Front Suspension Lower Arm No.1 Rh)
48069	48069-21020	Arm Sub-Assy, Front Suspension, Lower No.1 Lh
48641	90179-14068	Nut(For Front Suspension Lower Arm)
9538102525	95381-02525	PINCOTTER

OEM	Part name	Category
43211-21040	Knuckle, Steering, Rh	Front Axle Arm & Steering Knuckle ([05.2004 - ] (0405- ))
43212-21040	Knuckle, Steering, Lh	Front Axle Arm & Steering Knuckle ([05.2004 - ] (0405- ))
43330-29425	Joint Assy, Lower Ball, Front	Front Axle Arm & Steering Knuckle ([05.2004 - ] (0405- ))
48068-21020	Arm Sub-Assy, Front Suspension, Lower No.1 Rh	Front Axle Arm & Steering Knuckle ([05.2004 - ] (0405- ))
48069-21020	Arm Sub-Assy, Front Suspension, Lower No.1 Lh	Front Axle Arm & Steering Knuckle ([05.2004 - ] (0405- ))
90105-12336	Bolt (For Front Lower Ball Joint Rh)	Front Axle Arm & Steering Knuckle ([05.2004 - ] (0405- ))
90105-17008	Bolt (For Steering Knuckle Rh)	Front Axle Arm & Steering Knuckle ([05.2004 - ] (0405- ))
90105-17009	Bolt (For Steering Knuckle Rh)	Front Axle Arm & Steering Knuckle ([05.2004 - ] (0405- ))
90105-17010	Bolt (For Steering Knuckle Rh)	Front Axle Arm & Steering Knuckle ([05.2004 - ] (0405- ))
90105-17011	Bolt (For Steering Knuckle Rh)	Front Axle Arm & Steering Knuckle ([05.2004 - ] (0405- ))
90119-14108	Bolt(For Front Suspension Lower Arm No.1 Rh)	Front Axle Arm & Steering Knuckle ([05.2004 - ] (0405- ))
90171-14003	Nut, Castle (For Front Lower Ball Joint Setting)	Front Axle Arm & Steering Knuckle ([05.2004 - ] (0405- ))
90178-12015	Nut (For Front Lower Ball Joint Rh)	Front Axle Arm & Steering Knuckle ([05.2004 - ] (0405- ))
90178-17001	Nut (For Steering Knuckle Rh)	Front Axle Arm & Steering Knuckle ([05.2004 - ] (0405- ))
90179-14068	Nut(For Front Suspension Lower Arm)	Front Axle Arm & Steering Knuckle ([05.2004 - ] (0405- ))
95381-02525	PINCOTTER	Front Axle Arm & Steering Knuckle ([05.2004 - ] (0405- ))

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 183
Collected: 2026-08-04
