Search › Model › ANT10

ANT10

Toyota SCION-TC · 2004 · 3,766 parts · 183 categories

3,766 items

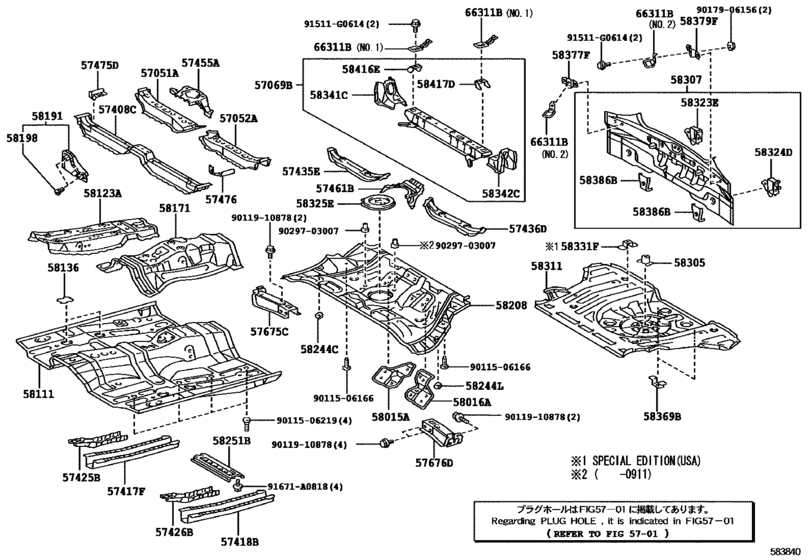

Floor Pan & Lower Back Panel ([05.2004 - ] (0405- )) 51

#	OEM	Part name
57051	57051-21010	Member Sub-Assy, Front Floor Cross, Rh
57052	57052-21010	Member Sub-Assy, Front Floor Cross, Lh
57069	57069-21020	Member Sub-Assy, Rear Floor Cross, Center
57408	57408-21020	Member Sub-Assy, Front Floor Cross
57417	57417-20110	Reinforcement, Front Floor Under, Rh
57425	57423-21010	Reinforcement, Front Floor, No.2 Rh
57435	57435-12010	Member, Center Floor Side, Rh
57436	57436-12010	Member, Center Floor Side, Lh
57455	57455-21030	Bracket, Front Floor Crossmember
57461	57461-12130	Member Sub-Assy, Center Floor Cross, No.1
57475	57475-20070	Plate, Front Floor Crossmember
57476	57476-20070	Plate, Front Floor Crossmember, Lh
57675	57608-21010	Reinforcement, Rear Floor Crossmember, No.1 Rh
57676	57609-21010	Reinforcement, Rear Floor Crossmember, No.1 Lh
58015	58015-12070	Reinforce Sub-Assy, Belt Anchor, No.3 Rh
58016	58016-13040	Reinforce Sub-Assy, Belt Anchor, No.3 Lh
58111	58111-20916	Pan, Front Floor
58111	58111-20921	Pan, Front Floor
58123	58013-21010	Support, Shift & Select Lever
58136	58136-33010	Cover, Front Floor Hole
58171	58107-21030	Reinforcement, Parking Brake Base
58191	58192-12070	Footrest, Front Floor
58198	58198-20210	Clip, Footrest
58198	90467-09220	Clip, Footrest
58208	58211-20520	Pan, Center Floor
58244	58244-13030	Bracket, Rear Seat Cushion Mounting
58251	58251-32010	Brace, Floor Panel, Front
58305	58351-33010	Bracket Sub-Assy, Spare Wheel Clamp
58307	58307-21070	Panel Sub-Assy, Body Lower Back
58311	58311-63011	Pan, Rear Floor
58323	58323-21040	Reinforcement, Rear Bumper Arm Support, Rh
58324	58324-21030	Reinforcement, Rear Bumper Arm Support, Lh
58325	58325-32040	Cover, Rear Floor Service Hole
58331	58331-10010	Bracket, Rear Floor Heat Insulator, No.3
58341	58341-21010	Bracket, Rear Absorber Mounting, No.1 Rh
58342	58342-21010	Bracket, Rear Absorber Mounting, No.1 Lh
58369	58369-20020	Bracket, Center Floor Heat Insulator
58377	58377-21020	Bracket, Lower Back Trim, Rh
58379	58379-21010	Bracket, Lower Back Trim, Lh
58386	58386-63010	Bracket, Rear Bumper Cover, No.2
58416	58416-21030	Bracket, Deck Board, No.1 Rh
58417	58417-21020	Bracket, Deck Board, No.1 Lh
66311	66310-13010	Hook Assy, Rope
66311	66310-31010-C0	Hook Assy, Rope
91511	91511-G0614	BOLTFLANGE
91671	91671-A0818	New Genuine Part
9011506166	90115-06166	Bolt, Weld(For Front Floor Pan)
9011506219	90115-06219	Bolt, Weld(For Front Floor Pan, Lh)
9011910878	90119-10878	New Genuine Part
9017906156	90179-06156	Nut (For Transmission Control Cable)
9029703007	90297-03007	Retainer, Rear Heater Mounting

OEM	Part name	Category
57051-21010	Member Sub-Assy, Front Floor Cross, Rh	Floor Pan & Lower Back Panel ([05.2004 - ] (0405- ))
57052-21010	Member Sub-Assy, Front Floor Cross, Lh	Floor Pan & Lower Back Panel ([05.2004 - ] (0405- ))
57069-21020	Member Sub-Assy, Rear Floor Cross, Center	Floor Pan & Lower Back Panel ([05.2004 - ] (0405- ))
57408-21020	Member Sub-Assy, Front Floor Cross	Floor Pan & Lower Back Panel ([05.2004 - ] (0405- ))
57417-20110	Reinforcement, Front Floor Under, Rh	Floor Pan & Lower Back Panel ([05.2004 - ] (0405- ))
57423-21010	Reinforcement, Front Floor, No.2 Rh	Floor Pan & Lower Back Panel ([05.2004 - ] (0405- ))
57435-12010	Member, Center Floor Side, Rh	Floor Pan & Lower Back Panel ([05.2004 - ] (0405- ))
57436-12010	Member, Center Floor Side, Lh	Floor Pan & Lower Back Panel ([05.2004 - ] (0405- ))
57455-21030	Bracket, Front Floor Crossmember	Floor Pan & Lower Back Panel ([05.2004 - ] (0405- ))
57461-12130	Member Sub-Assy, Center Floor Cross, No.1	Floor Pan & Lower Back Panel ([05.2004 - ] (0405- ))
57475-20070	Plate, Front Floor Crossmember	Floor Pan & Lower Back Panel ([05.2004 - ] (0405- ))
57476-20070	Plate, Front Floor Crossmember, Lh	Floor Pan & Lower Back Panel ([05.2004 - ] (0405- ))
57608-21010	Reinforcement, Rear Floor Crossmember, No.1 Rh	Floor Pan & Lower Back Panel ([05.2004 - ] (0405- ))
57609-21010	Reinforcement, Rear Floor Crossmember, No.1 Lh	Floor Pan & Lower Back Panel ([05.2004 - ] (0405- ))
58013-21010	Support, Shift & Select Lever	Floor Pan & Lower Back Panel ([05.2004 - ] (0405- ))
58015-12070	Reinforce Sub-Assy, Belt Anchor, No.3 Rh	Floor Pan & Lower Back Panel ([05.2004 - ] (0405- ))
58016-13040	Reinforce Sub-Assy, Belt Anchor, No.3 Lh	Floor Pan & Lower Back Panel ([05.2004 - ] (0405- ))
58107-21030	Reinforcement, Parking Brake Base	Floor Pan & Lower Back Panel ([05.2004 - ] (0405- ))
58111-20916	Pan, Front Floor	Floor Pan & Lower Back Panel ([05.2004 - ] (0405- ))
58111-20921	Pan, Front Floor	Floor Pan & Lower Back Panel ([05.2004 - ] (0405- ))
58136-33010	Cover, Front Floor Hole	Floor Pan & Lower Back Panel ([05.2004 - ] (0405- ))
58192-12070	Footrest, Front Floor	Floor Pan & Lower Back Panel ([05.2004 - ] (0405- ))
58198-20210	Clip, Footrest	Floor Pan & Lower Back Panel ([05.2004 - ] (0405- ))
58211-20520	Pan, Center Floor	Floor Pan & Lower Back Panel ([05.2004 - ] (0405- ))
58244-13030	Bracket, Rear Seat Cushion Mounting	Floor Pan & Lower Back Panel ([05.2004 - ] (0405- ))
58251-32010	Brace, Floor Panel, Front	Floor Pan & Lower Back Panel ([05.2004 - ] (0405- ))
58307-21070	Panel Sub-Assy, Body Lower Back	Floor Pan & Lower Back Panel ([05.2004 - ] (0405- ))
58311-63011	Pan, Rear Floor	Floor Pan & Lower Back Panel ([05.2004 - ] (0405- ))
58323-21040	Reinforcement, Rear Bumper Arm Support, Rh	Floor Pan & Lower Back Panel ([05.2004 - ] (0405- ))
58324-21030	Reinforcement, Rear Bumper Arm Support, Lh	Floor Pan & Lower Back Panel ([05.2004 - ] (0405- ))
58325-32040	Cover, Rear Floor Service Hole	Floor Pan & Lower Back Panel ([05.2004 - ] (0405- ))
58331-10010	Bracket, Rear Floor Heat Insulator, No.3	Floor Pan & Lower Back Panel ([05.2004 - ] (0405- ))
58341-21010	Bracket, Rear Absorber Mounting, No.1 Rh	Floor Pan & Lower Back Panel ([05.2004 - ] (0405- ))
58342-21010	Bracket, Rear Absorber Mounting, No.1 Lh	Floor Pan & Lower Back Panel ([05.2004 - ] (0405- ))
58351-33010	Bracket Sub-Assy, Spare Wheel Clamp	Floor Pan & Lower Back Panel ([05.2004 - ] (0405- ))
58369-20020	Bracket, Center Floor Heat Insulator	Floor Pan & Lower Back Panel ([05.2004 - ] (0405- ))
58377-21020	Bracket, Lower Back Trim, Rh	Floor Pan & Lower Back Panel ([05.2004 - ] (0405- ))
58379-21010	Bracket, Lower Back Trim, Lh	Floor Pan & Lower Back Panel ([05.2004 - ] (0405- ))
58386-63010	Bracket, Rear Bumper Cover, No.2	Floor Pan & Lower Back Panel ([05.2004 - ] (0405- ))
58416-21030	Bracket, Deck Board, No.1 Rh	Floor Pan & Lower Back Panel ([05.2004 - ] (0405- ))
58417-21020	Bracket, Deck Board, No.1 Lh	Floor Pan & Lower Back Panel ([05.2004 - ] (0405- ))
66310-13010	Hook Assy, Rope	Floor Pan & Lower Back Panel ([05.2004 - ] (0405- ))
66310-31010-C0	Hook Assy, Rope	Floor Pan & Lower Back Panel ([05.2004 - ] (0405- ))
90115-06166	Bolt, Weld(For Front Floor Pan)	Floor Pan & Lower Back Panel ([05.2004 - ] (0405- ))
90115-06219	Bolt, Weld(For Front Floor Pan, Lh)	Floor Pan & Lower Back Panel ([05.2004 - ] (0405- ))
90119-10878	New Genuine Part	Floor Pan & Lower Back Panel ([05.2004 - ] (0405- ))
90179-06156	Nut (For Transmission Control Cable)	Floor Pan & Lower Back Panel ([05.2004 - ] (0405- ))
90297-03007	Retainer, Rear Heater Mounting	Floor Pan & Lower Back Panel ([05.2004 - ] (0405- ))
90467-09220	Clip, Footrest	Floor Pan & Lower Back Panel ([05.2004 - ] (0405- ))
91511-G0614	BOLTFLANGE	Floor Pan & Lower Back Panel ([05.2004 - ] (0405- ))
91671-A0818	New Genuine Part	Floor Pan & Lower Back Panel ([05.2004 - ] (0405- ))
