Search › Model › ANT10

ANT10

Toyota SCION-TC · 2004 · 3,766 parts · 183 categories

3,766 items

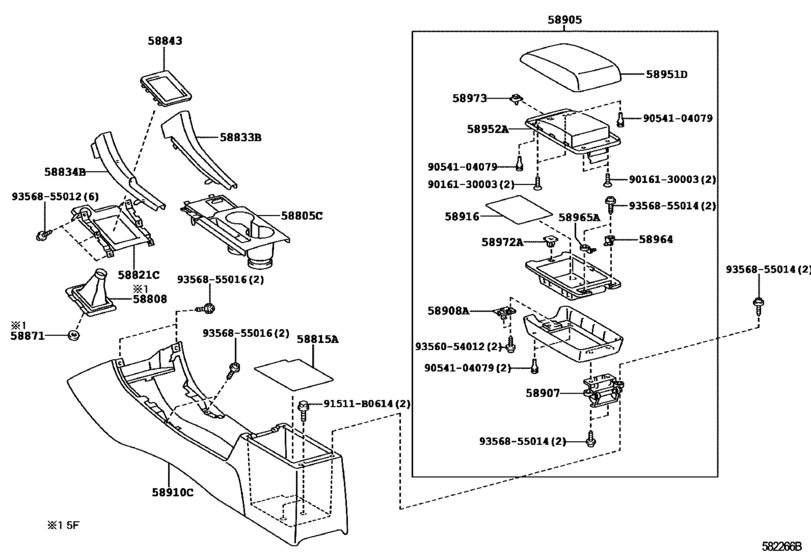

Console Box & Bracket ([05.2004 - 05.2005] (0405-0505)) 28

#	OEM	Part name
58805	58805-21010-B0	Panel Sub-Assy, Console, Upper Rear
58808	58808-21020-B0	Cover Sub-Assy, Shifting Hole
58815	58815-20090	Carpet, Console Box
58815	58815-21020	Carpet, Console Box
58821	58821-21040-B0	Panel, Console, Upper
58833	58833-21010-B0	Garnish, Console Upper Panel, No.1
58834	58834-21010-B0	Garnish, Console Upper Panel, No.2
58843	58843-21030-B0	Bezel, Shifting Hole
58871	58871-20060	Cushion, Console Box
58905	58905-21050-B0	Door Sub-Assy, Console Compartment
58905	58905-21060-C0	Door Sub-Assy, Console Compartment
58907	58907-12050	Hinge Sub-Assy, Console Compartment Door
58908	58908-33030	Lock Sub-Assy, Console Compartment Door
58910	58911-21080-B0	Box Assy, Console, Rear
58916	58916-12080	Mat, Box Bottom
58951	58951-21030-C0	Door, Console Compartment, Outer
58952	58952-12060-B6	Door, Console Compartment, Inner
58964	58964-20040	Stopper, Console Compartment Door, No.1
58965	58965-20050	Stopper, Console Compartment Door, No.2
58972	58972-34010	Base, Console Compartment Door Lock
58973	58973-34010	Pin, Console Compartment Door Lock
91511	91511-B0614	BOLT, FLANGE
9016130003	90161-30003	SCREW COUNTERSUNK
9054104079	90541-04079	Cushion(For Glove Compartment Door)
9356054012	93560-54012	Screw
9356855012	93568-55012	SCREW
9356855014	93568-55014	Screw
9356855016	93568-55016	Screw

OEM	Part name	Category
58805-21010-B0	Panel Sub-Assy, Console, Upper Rear	Console Box & Bracket ([05.2004 - 05.2005] (0405-0505))
58808-21020-B0	Cover Sub-Assy, Shifting Hole	Console Box & Bracket ([05.2004 - 05.2005] (0405-0505))
58815-20090	Carpet, Console Box	Console Box & Bracket ([05.2004 - 05.2005] (0405-0505))
58815-21020	Carpet, Console Box	Console Box & Bracket ([05.2004 - 05.2005] (0405-0505))
58821-21040-B0	Panel, Console, Upper	Console Box & Bracket ([05.2004 - 05.2005] (0405-0505))
58833-21010-B0	Garnish, Console Upper Panel, No.1	Console Box & Bracket ([05.2004 - 05.2005] (0405-0505))
58834-21010-B0	Garnish, Console Upper Panel, No.2	Console Box & Bracket ([05.2004 - 05.2005] (0405-0505))
58843-21030-B0	Bezel, Shifting Hole	Console Box & Bracket ([05.2004 - 05.2005] (0405-0505))
58871-20060	Cushion, Console Box	Console Box & Bracket ([05.2004 - 05.2005] (0405-0505))
58905-21050-B0	Door Sub-Assy, Console Compartment	Console Box & Bracket ([05.2004 - 05.2005] (0405-0505))
58905-21060-C0	Door Sub-Assy, Console Compartment	Console Box & Bracket ([05.2004 - 05.2005] (0405-0505))
58907-12050	Hinge Sub-Assy, Console Compartment Door	Console Box & Bracket ([05.2004 - 05.2005] (0405-0505))
58908-33030	Lock Sub-Assy, Console Compartment Door	Console Box & Bracket ([05.2004 - 05.2005] (0405-0505))
58911-21080-B0	Box Assy, Console, Rear	Console Box & Bracket ([05.2004 - 05.2005] (0405-0505))
58916-12080	Mat, Box Bottom	Console Box & Bracket ([05.2004 - 05.2005] (0405-0505))
58951-21030-C0	Door, Console Compartment, Outer	Console Box & Bracket ([05.2004 - 05.2005] (0405-0505))
58952-12060-B6	Door, Console Compartment, Inner	Console Box & Bracket ([05.2004 - 05.2005] (0405-0505))
58964-20040	Stopper, Console Compartment Door, No.1	Console Box & Bracket ([05.2004 - 05.2005] (0405-0505))
58965-20050	Stopper, Console Compartment Door, No.2	Console Box & Bracket ([05.2004 - 05.2005] (0405-0505))
58972-34010	Base, Console Compartment Door Lock	Console Box & Bracket ([05.2004 - 05.2005] (0405-0505))
58973-34010	Pin, Console Compartment Door Lock	Console Box & Bracket ([05.2004 - 05.2005] (0405-0505))
90161-30003	SCREW COUNTERSUNK	Console Box & Bracket ([05.2004 - 05.2005] (0405-0505))
90541-04079	Cushion(For Glove Compartment Door)	Console Box & Bracket ([05.2004 - 05.2005] (0405-0505))
91511-B0614	BOLT, FLANGE	Console Box & Bracket ([05.2004 - 05.2005] (0405-0505))
93560-54012	Screw	Console Box & Bracket ([05.2004 - 05.2005] (0405-0505))
93568-55012	SCREW	Console Box & Bracket ([05.2004 - 05.2005] (0405-0505))
93568-55014	Screw	Console Box & Bracket ([05.2004 - 05.2005] (0405-0505))
93568-55016	Screw	Console Box & Bracket ([05.2004 - 05.2005] (0405-0505))
