ANT10

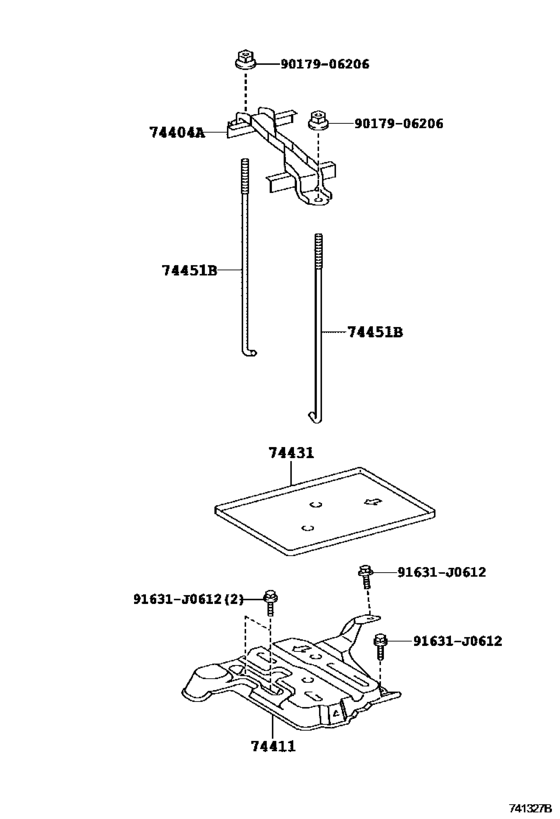

Battery Carrier ([05.2004 - ] (0405- )) 6
| # | OEM | Part name |
|---|---|---|
| 74404 | 74404-21030 | Clamp Sub-Assy, Battery |
| 74411 | 74410-21010 | Carrier, Battery |
| 74431 | 74431-52040 | Tray, Battery |
| 74451 | 74451-20060 | Bolt, Battery Clamp |
| 91631 | 91631-J0612 | BRACKET |
| 9017906206 | 90179-06206 | Nut |
| OEM | Part name | Category |
|---|---|---|
| 74404-21030 | Clamp Sub-Assy, Battery | Battery Carrier ([05.2004 - ] (0405- )) |
| 74410-21010 | Carrier, Battery | Battery Carrier ([05.2004 - ] (0405- )) |
| 74431-52040 | Tray, Battery | Battery Carrier ([05.2004 - ] (0405- )) |
| 74451-20060 | Bolt, Battery Clamp | Battery Carrier ([05.2004 - ] (0405- )) |
| 90179-06206 | Nut | Battery Carrier ([05.2004 - ] (0405- )) |
| 91631-J0612 | BRACKET | Battery Carrier ([05.2004 - ] (0405- )) |
