Search › Model › ANH20

ANH20

Toyota ALPHARD-VELLFIRE · 2008 · 4,850 parts · 250 categories

← Back to categories

4,850 items

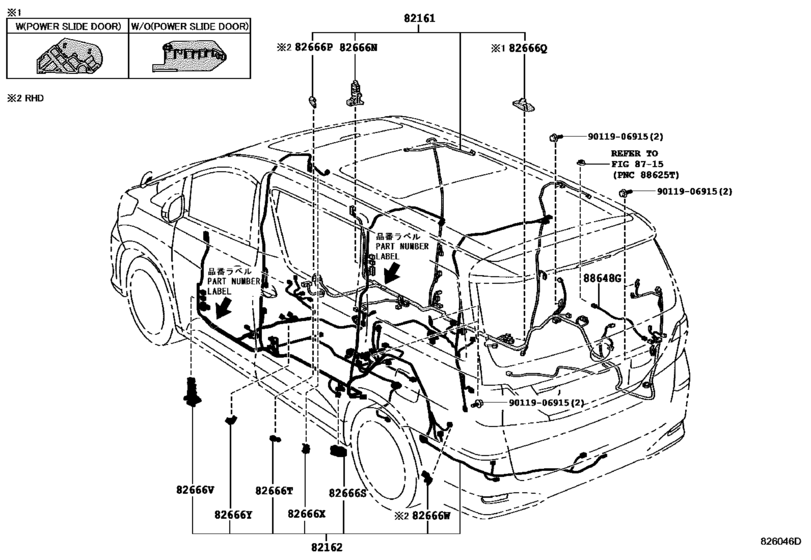

Wiring & Clamp ([04.2008 - 10.2011] FLOOR (0804-1110)) 18

#	OEM	Part name
82161	82161-58270	Wire, Floor
82161	82161-58271	Wire, Floor
82161	82161-58272	Wire, Floor
82161	82161-58280	Wire, Floor
82161	82161-58281	Wire, Floor
82162	82162-58360	Wire, Floor, No.2
82162	82162-58440	Wire, Floor, No.2
82162	82162-58451	Wire, Floor, No.2
82666	82666-58160	Holder, Connector No.10
82666	82666-28380	Holder, Connector No.12
82666	82666-28330	Holder, Connector No.12
82666	82666-28340	Holder, Connector No.10
82666	82666-58170	Holder, Connector No.15
82666	82666-58171	Holder, Connector No.15
82666	82666-58200	Holder, Connector No.17
82666	82666-58210	Holder, Connector No.18
88648	88648-58020	Wire, Air Conditioner
9011906915	90119-06915	BOLT W-WASHER

OEM	Part name	Category
82161-58270	Wire, Floor	Wiring & Clamp ([04.2008 - 10.2011] FLOOR (0804-1110))
82161-58271	Wire, Floor	Wiring & Clamp ([04.2008 - 10.2011] FLOOR (0804-1110))
82161-58272	Wire, Floor	Wiring & Clamp ([04.2008 - 10.2011] FLOOR (0804-1110))
82161-58280	Wire, Floor	Wiring & Clamp ([04.2008 - 10.2011] FLOOR (0804-1110))
82161-58281	Wire, Floor	Wiring & Clamp ([04.2008 - 10.2011] FLOOR (0804-1110))
82162-58360	Wire, Floor, No.2	Wiring & Clamp ([04.2008 - 10.2011] FLOOR (0804-1110))
82162-58440	Wire, Floor, No.2	Wiring & Clamp ([04.2008 - 10.2011] FLOOR (0804-1110))
82162-58451	Wire, Floor, No.2	Wiring & Clamp ([04.2008 - 10.2011] FLOOR (0804-1110))
82666-28330	Holder, Connector No.12	Wiring & Clamp ([04.2008 - 10.2011] FLOOR (0804-1110))
82666-28340	Holder, Connector No.10	Wiring & Clamp ([04.2008 - 10.2011] FLOOR (0804-1110))
82666-28380	Holder, Connector No.12	Wiring & Clamp ([04.2008 - 10.2011] FLOOR (0804-1110))
82666-58160	Holder, Connector No.10	Wiring & Clamp ([04.2008 - 10.2011] FLOOR (0804-1110))
82666-58170	Holder, Connector No.15	Wiring & Clamp ([04.2008 - 10.2011] FLOOR (0804-1110))
82666-58171	Holder, Connector No.15	Wiring & Clamp ([04.2008 - 10.2011] FLOOR (0804-1110))
82666-58200	Holder, Connector No.17	Wiring & Clamp ([04.2008 - 10.2011] FLOOR (0804-1110))
82666-58210	Holder, Connector No.18	Wiring & Clamp ([04.2008 - 10.2011] FLOOR (0804-1110))
88648-58020	Wire, Air Conditioner	Wiring & Clamp ([04.2008 - 10.2011] FLOOR (0804-1110))
90119-06915	BOLT W-WASHER	Wiring & Clamp ([04.2008 - 10.2011] FLOOR (0804-1110))

Source: Public OEM parts-catalog data
Variants: 2 / 18
Category: 250
Collected: 2026-08-02
