ANH20

Toyota ALPHARD-VELLFIRE · 2008 · 4,850 parts · 250 categories

4,850 items

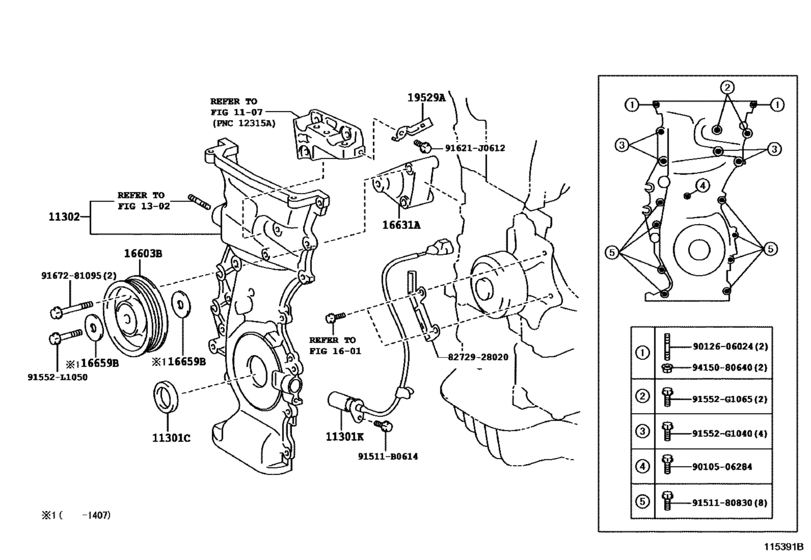

Timing Gear Cover & Rear End Plate ([06.2009 - ] *195 (0906- )2AZFE) 21

#	OEM	Part name
11301	90311-38089	Seal, Oil(For Timing Gear Case Or Timing Chain Case)
11301	90311-38098	Seal, Oil(For Timing Gear Case Or Timing Chain Case)
11301	90919-05047	Sensor, Crank Position
11302	11310-28090	Cover Sub-Assy, Timing Chain Or Belt
16603	16603-28020	Pulley Sub-Assy, Idler
16603	16603-28050	Pulley Sub-Assy, Idler
16631	16631-28031	Bracket, Idler Pulley
16659	16659-31011	Plate, Idler Pulley Cover, No.2
16659	16659-AD010	Plate, Idler Pulley Cover, No.2
19529	19529-28030	Clamp
91511	91511-B0614	BOLT, FLANGE
91552	91552-G1040	BOLT FLANGE
91552	91552-G1065	BOLT FLANGE
91552	91552-L1050	BOLT FLANGE
91621	91621-J0612	BOLT W-WASHER
8272928020	82729-28020	New Genuine Part
9010506284	90105-06284	New Genuine Part
9012606024	90126-06024	STUD HEX LOBULAR
9151180830	91511-80830	Bolt(For Alternator)
9167281095	91672-81095	BOLT FLANGE
9415080640	94150-80640	NUT FLANGE

OEM	Part name	Category
11310-28090	Cover Sub-Assy, Timing Chain Or Belt	Timing Gear Cover & Rear End Plate ([06.2009 - ] *195 (0906- )2AZFE)
16603-28020	Pulley Sub-Assy, Idler	Timing Gear Cover & Rear End Plate ([06.2009 - ] *195 (0906- )2AZFE)
16603-28050	Pulley Sub-Assy, Idler	Timing Gear Cover & Rear End Plate ([06.2009 - ] *195 (0906- )2AZFE)
16631-28031	Bracket, Idler Pulley	Timing Gear Cover & Rear End Plate ([06.2009 - ] *195 (0906- )2AZFE)
16659-31011	Plate, Idler Pulley Cover, No.2	Timing Gear Cover & Rear End Plate ([06.2009 - ] *195 (0906- )2AZFE)
16659-AD010	Plate, Idler Pulley Cover, No.2	Timing Gear Cover & Rear End Plate ([06.2009 - ] *195 (0906- )2AZFE)
19529-28030	Clamp	Timing Gear Cover & Rear End Plate ([06.2009 - ] *195 (0906- )2AZFE)
82729-28020	New Genuine Part	Timing Gear Cover & Rear End Plate ([06.2009 - ] *195 (0906- )2AZFE)
90105-06284	New Genuine Part	Timing Gear Cover & Rear End Plate ([06.2009 - ] *195 (0906- )2AZFE)
90126-06024	STUD HEX LOBULAR	Timing Gear Cover & Rear End Plate ([06.2009 - ] *195 (0906- )2AZFE)
90311-38089	Seal, Oil(For Timing Gear Case Or Timing Chain Case)	Timing Gear Cover & Rear End Plate ([06.2009 - ] *195 (0906- )2AZFE)
90311-38098	Seal, Oil(For Timing Gear Case Or Timing Chain Case)	Timing Gear Cover & Rear End Plate ([06.2009 - ] *195 (0906- )2AZFE)
90919-05047	Sensor, Crank Position	Timing Gear Cover & Rear End Plate ([06.2009 - ] *195 (0906- )2AZFE)
91511-80830	Bolt(For Alternator)	Timing Gear Cover & Rear End Plate ([06.2009 - ] *195 (0906- )2AZFE)
91511-B0614	BOLT, FLANGE	Timing Gear Cover & Rear End Plate ([06.2009 - ] *195 (0906- )2AZFE)
91552-G1040	BOLT FLANGE	Timing Gear Cover & Rear End Plate ([06.2009 - ] *195 (0906- )2AZFE)
91552-G1065	BOLT FLANGE	Timing Gear Cover & Rear End Plate ([06.2009 - ] *195 (0906- )2AZFE)
91552-L1050	BOLT FLANGE	Timing Gear Cover & Rear End Plate ([06.2009 - ] *195 (0906- )2AZFE)
91621-J0612	BOLT W-WASHER	Timing Gear Cover & Rear End Plate ([06.2009 - ] *195 (0906- )2AZFE)
91672-81095	BOLT FLANGE	Timing Gear Cover & Rear End Plate ([06.2009 - ] *195 (0906- )2AZFE)
94150-80640	NUT FLANGE	Timing Gear Cover & Rear End Plate ([06.2009 - ] *195 (0906- )2AZFE)
