| 16258-28040 |
Gasket(For Oil Cooler Pipe Union Bolt) |

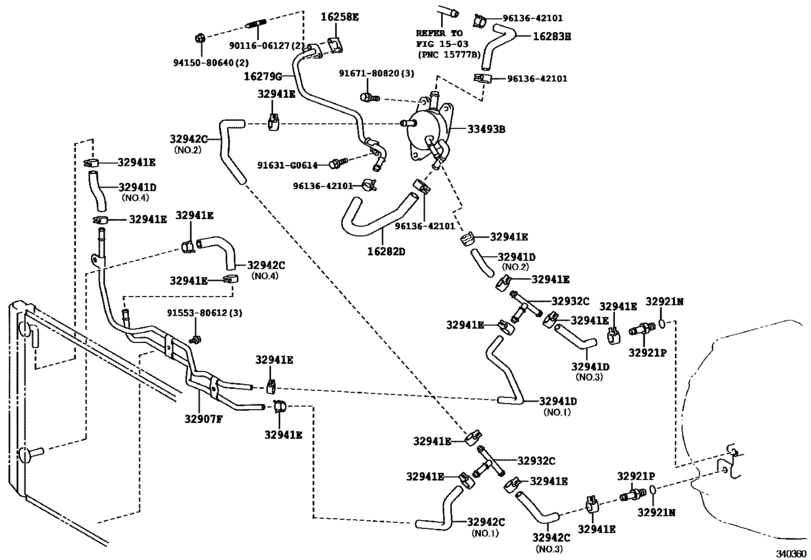

Oil Cooler & Tube(Cvt) ([05.2012 - ] K112,W(WATER COOLED) (1205- )ANH20..07S..CVFC) |
| 16279-28060 |
Pipe, Water By-Pass, No.3 |
Oil Cooler & Tube(Cvt) ([05.2012 - ] K112,W(WATER COOLED) (1205- )ANH20..07S..CVFC) |
| 16282-28100 |
Hose, Water By-Pass, No.5 |
Oil Cooler & Tube(Cvt) ([05.2012 - ] K112,W(WATER COOLED) (1205- )ANH20..07S..CVFC) |
| 16283-28130 |
Hose, Water By-Pass, No.6 |
Oil Cooler & Tube(Cvt) ([05.2012 - ] K112,W(WATER COOLED) (1205- )ANH20..07S..CVFC) |
| 32907-28050 |
Tube Sub-Assy, Oil Cooler W/o Hose, No.1 |
Oil Cooler & Tube(Cvt) ([05.2012 - ] K112,W(WATER COOLED) (1205- )ANH20..07S..CVFC) |
| 32932-28010 |
Tube, Oil Cooler Outlet |
Oil Cooler & Tube(Cvt) ([05.2012 - ] K112,W(WATER COOLED) (1205- )ANH20..07S..CVFC) |
| 32941-28310 |
Hose, Oil Cooler Inlet |
Oil Cooler & Tube(Cvt) ([05.2012 - ] K112,W(WATER COOLED) (1205- )ANH20..07S..CVFC) |
| 32941-28320 |
Hose, Oil Cooler Inlet |
Oil Cooler & Tube(Cvt) ([05.2012 - ] K112,W(WATER COOLED) (1205- )ANH20..07S..CVFC) |
| 32941-28330 |
Hose, Oil Cooler Inlet |
Oil Cooler & Tube(Cvt) ([05.2012 - ] K112,W(WATER COOLED) (1205- )ANH20..07S..CVFC) |
| 32942-28270 |
Hose, Oil Cooler Inlet, No.2 |
Oil Cooler & Tube(Cvt) ([05.2012 - ] K112,W(WATER COOLED) (1205- )ANH20..07S..CVFC) |
| 32942-28360 |
Hose, Oil Cooler Outlet, No.1 |
Oil Cooler & Tube(Cvt) ([05.2012 - ] K112,W(WATER COOLED) (1205- )ANH20..07S..CVFC) |
| 32942-28370 |
Hose, Oil Cooler Outlet, No.1 |
Oil Cooler & Tube(Cvt) ([05.2012 - ] K112,W(WATER COOLED) (1205- )ANH20..07S..CVFC) |
| 32942-28380 |
Hose, Oil Cooler Outlet, No.1 |
Oil Cooler & Tube(Cvt) ([05.2012 - ] K112,W(WATER COOLED) (1205- )ANH20..07S..CVFC) |
| 33493-28020 |
Cooler, Oil |
Oil Cooler & Tube(Cvt) ([05.2012 - ] K112,W(WATER COOLED) (1205- )ANH20..07S..CVFC) |
| 90116-06127 |
Bolt, Stud(For Oil Pan) |
Oil Cooler & Tube(Cvt) ([05.2012 - ] K112,W(WATER COOLED) (1205- )ANH20..07S..CVFC) |
| 90301-10189 |
Ring, O(For Oil Cooler Tube Union) |
Oil Cooler & Tube(Cvt) ([05.2012 - ] K112,W(WATER COOLED) (1205- )ANH20..07S..CVFC) |
| 90404-13004 |
Union(For Oil Cooler Tube) |
Oil Cooler & Tube(Cvt) ([05.2012 - ] K112,W(WATER COOLED) (1205- )ANH20..07S..CVFC) |
| 90404-13010 |
Union(For Oil Cooler Tube) |
Oil Cooler & Tube(Cvt) ([05.2012 - ] K112,W(WATER COOLED) (1205- )ANH20..07S..CVFC) |
| 90445-17179 |
Hose, Oil Cooler Inlet, No.3 |
Oil Cooler & Tube(Cvt) ([05.2012 - ] K112,W(WATER COOLED) (1205- )ANH20..07S..CVFC) |
| 90466-16004 |
Clip(For Ventilation Hose No.2) |
Oil Cooler & Tube(Cvt) ([05.2012 - ] K112,W(WATER COOLED) (1205- )ANH20..07S..CVFC) |
| 91553-80612 |
BOLT FLANGE |
Oil Cooler & Tube(Cvt) ([05.2012 - ] K112,W(WATER COOLED) (1205- )ANH20..07S..CVFC) |
| 91631-G0614 |
BOT WWASHER |
Oil Cooler & Tube(Cvt) ([05.2012 - ] K112,W(WATER COOLED) (1205- )ANH20..07S..CVFC) |
| 91671-80820 |
Bolt (For Transmission Control Cable Bracket) |
Oil Cooler & Tube(Cvt) ([05.2012 - ] K112,W(WATER COOLED) (1205- )ANH20..07S..CVFC) |
| 94150-80640 |
NUT FLANGE |
Oil Cooler & Tube(Cvt) ([05.2012 - ] K112,W(WATER COOLED) (1205- )ANH20..07S..CVFC) |
| 96136-42101 |
Clip, Hose(For Radiator Hose Sub-Assy) |
Oil Cooler & Tube(Cvt) ([05.2012 - ] K112,W(WATER COOLED) (1205- )ANH20..07S..CVFC) |
