ANH20

Toyota ALPHARD-VELLFIRE · 2008 · 4,850 parts · 250 categories

← Back to categories

4,850 items

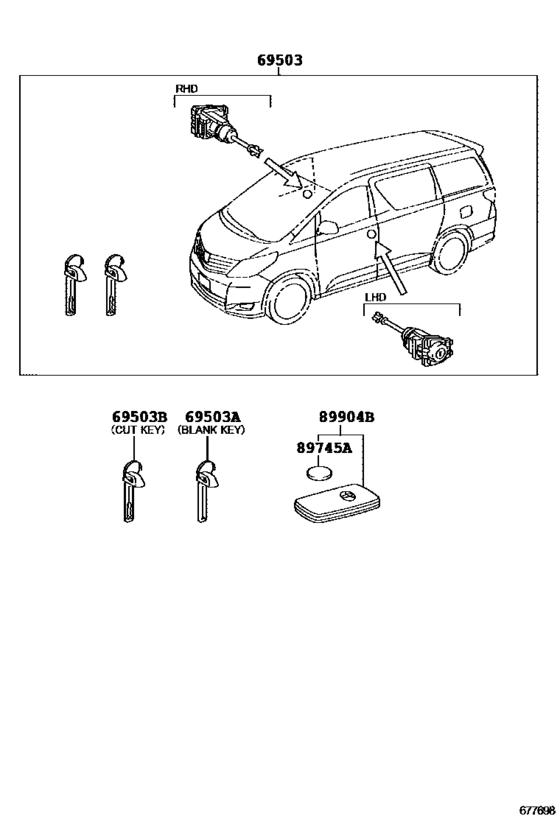

Lock Cylinder Set ([09.2012 - ] FOR DESTINATION PACKAGE (1209- )LHD..CVFC ; (1209- )GGH20..350G..G EN) 13

#	OEM	Part name
69503	69005-58230	Cylinder Set, Lock
69503	69005-58250	Cylinder Set, Lock
69503	69515-12320	Key, Blank
69503	69515-52120	Key, Blank
69503	69515-12310	Key, Cut
69503	69515-52110	Key, Cut - for blank key →
89745	89745-45010	Battery, Transmitter
89745	89745-50020	Battery, Transmitter
89745	89745-52020	Battery, Transmitter
89904	89904-28111	Transmitter Sub-Assy, Electrical Key
89904	89904-28132	Transmitter Sub-Assy, Electrical Key
89904	89904-28133	Transmitter Sub-Assy, Electrical Key
89904	89904-58210	Transmitter Sub-Assy, Electrical Key

OEM	Part name	Category
69005-58230	Cylinder Set, Lock	Lock Cylinder Set ([09.2012 - ] FOR DESTINATION PACKAGE (1209- )LHD..CVFC ; (1209- )GGH20..350G..G EN)
69005-58250	Cylinder Set, Lock	Lock Cylinder Set ([09.2012 - ] FOR DESTINATION PACKAGE (1209- )LHD..CVFC ; (1209- )GGH20..350G..G EN)
69515-12310	Key, Cut	Lock Cylinder Set ([09.2012 - ] FOR DESTINATION PACKAGE (1209- )LHD..CVFC ; (1209- )GGH20..350G..G EN)
69515-12320	Key, Blank	Lock Cylinder Set ([09.2012 - ] FOR DESTINATION PACKAGE (1209- )LHD..CVFC ; (1209- )GGH20..350G..G EN)
69515-52110	Key, Cut - for blank key →	Lock Cylinder Set ([09.2012 - ] FOR DESTINATION PACKAGE (1209- )LHD..CVFC ; (1209- )GGH20..350G..G EN)
69515-52120	Key, Blank	Lock Cylinder Set ([09.2012 - ] FOR DESTINATION PACKAGE (1209- )LHD..CVFC ; (1209- )GGH20..350G..G EN)
89745-45010	Battery, Transmitter	Lock Cylinder Set ([09.2012 - ] FOR DESTINATION PACKAGE (1209- )LHD..CVFC ; (1209- )GGH20..350G..G EN)
89745-50020	Battery, Transmitter	Lock Cylinder Set ([09.2012 - ] FOR DESTINATION PACKAGE (1209- )LHD..CVFC ; (1209- )GGH20..350G..G EN)
89745-52020	Battery, Transmitter	Lock Cylinder Set ([09.2012 - ] FOR DESTINATION PACKAGE (1209- )LHD..CVFC ; (1209- )GGH20..350G..G EN)
89904-28111	Transmitter Sub-Assy, Electrical Key	Lock Cylinder Set ([09.2012 - ] FOR DESTINATION PACKAGE (1209- )LHD..CVFC ; (1209- )GGH20..350G..G EN)
89904-28132	Transmitter Sub-Assy, Electrical Key	Lock Cylinder Set ([09.2012 - ] FOR DESTINATION PACKAGE (1209- )LHD..CVFC ; (1209- )GGH20..350G..G EN)
89904-28133	Transmitter Sub-Assy, Electrical Key	Lock Cylinder Set ([09.2012 - ] FOR DESTINATION PACKAGE (1209- )LHD..CVFC ; (1209- )GGH20..350G..G EN)
89904-58210	Transmitter Sub-Assy, Electrical Key	Lock Cylinder Set ([09.2012 - ] FOR DESTINATION PACKAGE (1209- )LHD..CVFC ; (1209- )GGH20..350G..G EN)
