ANH20

Toyota ALPHARD-VELLFIRE · 2008 · 4,850 parts · 250 categories
ANH20 ×

← Back to categories

4,850 items

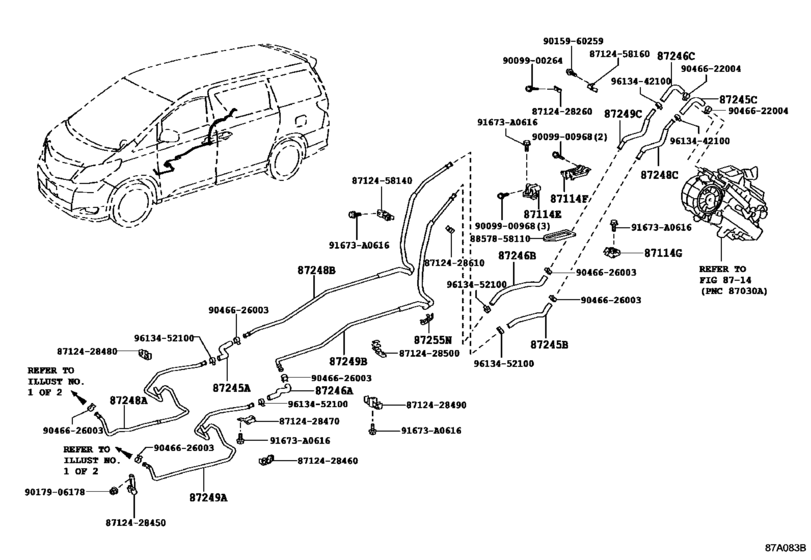

Heating & Air Conditioning - Water Piping ([06.2009 - ] REAR (0906- )ANH20) 35
#OEMPart name
87114 87114-58010 Cover, Heater, No.1
87114 87114-58020 Cover, Heater, No.2
87114 87114-58030 Cover, Heater, No.3
87245 87245-28A50 Hose, Heater Water, Inlet A
87245 87245-58120 Hose, Heater Water, Inlet B
87245 87245-58180 Hose, Heater Water ,inlet C
87246 87245-28A60 Hose, Heater Water, Outlet A
87246 87245-58170 Hose, Heater Water, Outlet B
87248 87248-28420 Pipe, Heater Water Inlet, A
87248 87248-58110 Pipe, Heater Water Inlet, B
87248 87248-58130 Pipe, Heater Water Inlet, C
87249 87248-28430 Pipe, Heater Water Outlet, A
87249 87248-58120 Pipe, Heater Water Outlet, B
87249 87248-58140 Pipe, Heater Water Outlet, C
87255 87255-28010 Pipe, Heater Protector, No.1
91673 91673-A0616 BOLT, FLANGE
8712428260 87124-28260 Clamp, Heater
8712428450 87124-28450 Clamp, Heater
8712428460 87124-28460 Clamp, Heater
8712428470 87124-28470 Clamp, Heater
8712428480 87124-28480 Clamp, Heater
8712428490 87124-28490 Clamp, Heater
8712428500 87124-28500 Clamp, Heater
8712428610 87124-28610 Clamp, Heater
8712458140 87124-58140 Clamp, Heater
8712458160 87124-58160 Clamp, Heater
8857858110 88578-58110 Paking, Cooler Air Duct
9009900264 90099-00264 SCREW
9009900968 90099-00968 Screw(For Air Conditioner Unit)
9015960259 90159-60259 SCREW
9017906178 90179-06178 Nut (For Rear Wiper Arm Setting)
9046622004 90466-22004 Clamp Or Clip, Hose(For Water By-Pass Hose)
9046626003 90466-26003 New Genuine Part
9613442100 96134-42100 Clip(For Water By-Pass Hose Assy)
9613452100 96134-52100 Clip(For Ventilation Hose)
