ANH20

Toyota ALPHARD-VELLFIRE · 2008 · 4,850 parts · 250 categories

4,850 items

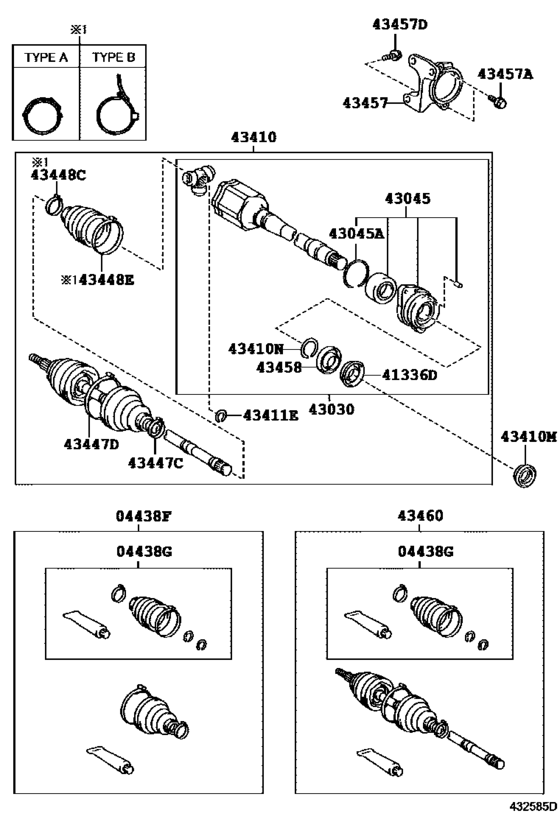

Front Drive Shaft ([04.2008 - 10.2011] RH (0804-1110)) 21

#	OEM	Part name
4438	04427-44050	Boot Kit, Front Drive Shaft, In & Outboard, Rh
4438	04438-42180	Boot Kit, Front Drive Shaft Inboard Joint
41336	41336-12020	Cover, Dust(For Front Drive Shaft)
43030	43030-44021	Joint Assy, Front Drive Inboard, Rh
43045	43045-64020	Case Sub Assy, Drive Shaft Bearing
43045	90520-69002	Ring, Snap (For Case Sub Assy, Drive Shaft Bearing)
43410	43410-42140	Shaft Assy, Front Drive, Rh
43410	90311-40031	Oil Seal, Front Drive Shaft, Rh
43410	90520-38015	Ring, Shaft Snap(For Rear Drive Shaft)
43411	43425-28010	Ring, Shaft Snap (For Front Drive Inner Shaft Inner Rh)
43447	42345-42100	Clamp (For Front Axle Outboard Joint Boot) - Small
43447	42345-42090	Clamp, No.2 (For Front Axle Outboard Joint Boot) - Big
43448	42345-42010	Clamp (For Axle Inboard Joint Boot) - Small
43448	90949-01559	Clamp, No.1 (For Axle Outboard Joint Boot Setting)
43448	42345-12160	Clamp, No.2 (For Drive Shaft Inboard Joint Boot) - Big
43457	43457-42090	Bracket, Drive Shaft Bearing
43457	90105-10361	Bolt (For Rear Differential Carrier Cover Setting)
43457	90105-10381	Bolt (For Drive Shaft Bearing Bracket Setting No.1)
43458	43458-12010	Cover, Front Drive Shaft Dust
43460	43470-49665	Shaft Assy, Front Drive Outboard Joint, Rh
43460	43470-49666	Shaft Assy, Front Drive Outboard Joint, Rh

OEM	Part name	Category
04427-44050	Boot Kit, Front Drive Shaft, In & Outboard, Rh	Front Drive Shaft ([04.2008 - 10.2011] RH (0804-1110))
04438-42180	Boot Kit, Front Drive Shaft Inboard Joint	Front Drive Shaft ([04.2008 - 10.2011] RH (0804-1110))
41336-12020	Cover, Dust(For Front Drive Shaft)	Front Drive Shaft ([04.2008 - 10.2011] RH (0804-1110))
42345-12160	Clamp, No.2 (For Drive Shaft Inboard Joint Boot) - Big	Front Drive Shaft ([04.2008 - 10.2011] RH (0804-1110))
42345-42010	Clamp (For Axle Inboard Joint Boot) - Small	Front Drive Shaft ([04.2008 - 10.2011] RH (0804-1110))
42345-42090	Clamp, No.2 (For Front Axle Outboard Joint Boot) - Big	Front Drive Shaft ([04.2008 - 10.2011] RH (0804-1110))
42345-42100	Clamp (For Front Axle Outboard Joint Boot) - Small	Front Drive Shaft ([04.2008 - 10.2011] RH (0804-1110))
43030-44021	Joint Assy, Front Drive Inboard, Rh	Front Drive Shaft ([04.2008 - 10.2011] RH (0804-1110))
43045-64020	Case Sub Assy, Drive Shaft Bearing	Front Drive Shaft ([04.2008 - 10.2011] RH (0804-1110))
43410-42140	Shaft Assy, Front Drive, Rh	Front Drive Shaft ([04.2008 - 10.2011] RH (0804-1110))
43425-28010	Ring, Shaft Snap (For Front Drive Inner Shaft Inner Rh)	Front Drive Shaft ([04.2008 - 10.2011] RH (0804-1110))
43457-42090	Bracket, Drive Shaft Bearing	Front Drive Shaft ([04.2008 - 10.2011] RH (0804-1110))
43458-12010	Cover, Front Drive Shaft Dust	Front Drive Shaft ([04.2008 - 10.2011] RH (0804-1110))
43470-49665	Shaft Assy, Front Drive Outboard Joint, Rh	Front Drive Shaft ([04.2008 - 10.2011] RH (0804-1110))
43470-49666	Shaft Assy, Front Drive Outboard Joint, Rh	Front Drive Shaft ([04.2008 - 10.2011] RH (0804-1110))
90105-10361	Bolt (For Rear Differential Carrier Cover Setting)	Front Drive Shaft ([04.2008 - 10.2011] RH (0804-1110))
90105-10381	Bolt (For Drive Shaft Bearing Bracket Setting No.1)	Front Drive Shaft ([04.2008 - 10.2011] RH (0804-1110))
90311-40031	Oil Seal, Front Drive Shaft, Rh	Front Drive Shaft ([04.2008 - 10.2011] RH (0804-1110))
90520-38015	Ring, Shaft Snap(For Rear Drive Shaft)	Front Drive Shaft ([04.2008 - 10.2011] RH (0804-1110))
90520-69002	Ring, Snap (For Case Sub Assy, Drive Shaft Bearing)	Front Drive Shaft ([04.2008 - 10.2011] RH (0804-1110))
90949-01559	Clamp, No.1 (For Axle Outboard Joint Boot Setting)	Front Drive Shaft ([04.2008 - 10.2011] RH (0804-1110))
