ANH20

Toyota ALPHARD-VELLFIRE · 2008 · 4,850 parts · 250 categories

4,850 items

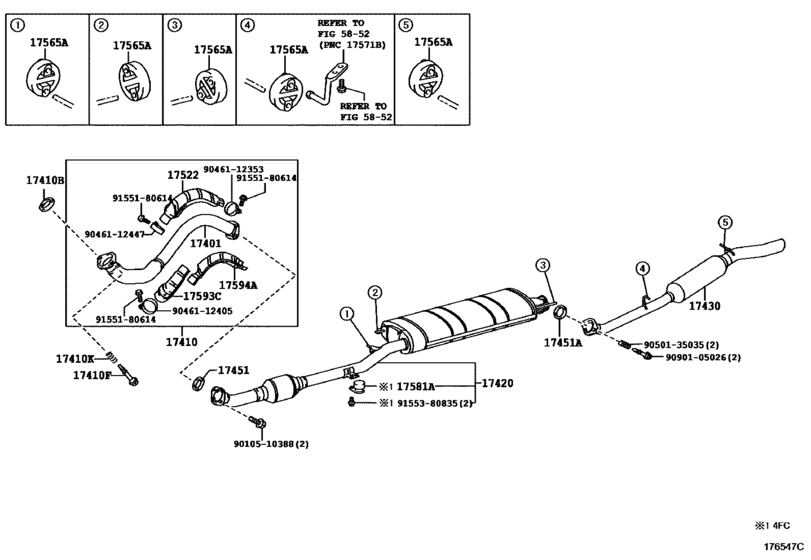

Exhaust Pipe ([06.2009 - ] (0906- )2AZFE) 31

#	OEM	Part name
17401	17401-28100	Pipe Sub-Assy, Exhaust, Front
17401	17401-28101	Pipe Sub-Assy, Exhaust, Front
17410	17410-28590	Pipe Assy, Exhaust, Front
17410	17410-28591	Pipe Assy, Exhaust, Front
17410	17451-28040	Gasket, Exhaust Pipe
17410	17451-28080	Gasket, Exhaust Pipe
17410	90901-05020	Bolt Or Ring, Exhaust Pipe Front (For Front)
17410	90501-35037	Spring, Exhaust Pipe
17420	17420-28811	Pipe Assy, Exhaust, Center
17420	17420-28A51	Pipe Assy, Exhaust, Center
17420	17420-28A20	Pipe Assy, Exhaust, Center
17420	17420-28B10	Pipe Assy, Exhaust, Center
17430	17430-28890	Pipe Assy, Exhaust, Tail
17430	17430-28A40	Pipe Assy, Exhaust, Tail
17451	90917-06078	Gasket, Exhaust Pipe
17451	90917-A6003	Gasket, Exhaust Pipe
17451	17451-28022	Gasket, Exhaust Pipe
17451	17451-28021	Gasket, Exhaust Pipe, Center
17522	17522-28040	Protector, Exhaust Pipe, Front No.1
17565	17565-22040	Support, Exhaust Pipe, No.1
17581	17581-46120	Damper, Exhaust Pipe
17593	17593-28040	Protector, Exhaust Pipe, Lower No.1
17594	17594-28020	Protector, Exhaust Pipe, No.2
9010510388	90105-10388	BOLT
9046112353	90461-12353	Clamp, Exhaust Pipe
9046112405	90461-12405	New Genuine Part
9046112447	90461-12447	Clamp, Exhaust Pipe
9050135035	90501-35035	Spring, Exhaust Pipe
9090105026	90901-05026	Bolt, Exhaust Pipe Support
9155180614	91551-80614	Bolt(For Vacuum Transmitting Pipe)
9155380835	91553-80835	New Genuine Part

OEM	Part name	Category
17401-28100	Pipe Sub-Assy, Exhaust, Front	Exhaust Pipe ([06.2009 - ] (0906- )2AZFE)
17401-28101	Pipe Sub-Assy, Exhaust, Front	Exhaust Pipe ([06.2009 - ] (0906- )2AZFE)
17410-28590	Pipe Assy, Exhaust, Front	Exhaust Pipe ([06.2009 - ] (0906- )2AZFE)
17410-28591	Pipe Assy, Exhaust, Front	Exhaust Pipe ([06.2009 - ] (0906- )2AZFE)
17420-28811	Pipe Assy, Exhaust, Center	Exhaust Pipe ([06.2009 - ] (0906- )2AZFE)
17420-28A20	Pipe Assy, Exhaust, Center	Exhaust Pipe ([06.2009 - ] (0906- )2AZFE)
17420-28A51	Pipe Assy, Exhaust, Center	Exhaust Pipe ([06.2009 - ] (0906- )2AZFE)
17420-28B10	Pipe Assy, Exhaust, Center	Exhaust Pipe ([06.2009 - ] (0906- )2AZFE)
17430-28890	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([06.2009 - ] (0906- )2AZFE)
17430-28A40	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([06.2009 - ] (0906- )2AZFE)
17451-28021	Gasket, Exhaust Pipe, Center	Exhaust Pipe ([06.2009 - ] (0906- )2AZFE)
17451-28022	Gasket, Exhaust Pipe	Exhaust Pipe ([06.2009 - ] (0906- )2AZFE)
17451-28040	Gasket, Exhaust Pipe	Exhaust Pipe ([06.2009 - ] (0906- )2AZFE)
17451-28080	Gasket, Exhaust Pipe	Exhaust Pipe ([06.2009 - ] (0906- )2AZFE)
17522-28040	Protector, Exhaust Pipe, Front No.1	Exhaust Pipe ([06.2009 - ] (0906- )2AZFE)
17565-22040	Support, Exhaust Pipe, No.1	Exhaust Pipe ([06.2009 - ] (0906- )2AZFE)
17581-46120	Damper, Exhaust Pipe	Exhaust Pipe ([06.2009 - ] (0906- )2AZFE)
17593-28040	Protector, Exhaust Pipe, Lower No.1	Exhaust Pipe ([06.2009 - ] (0906- )2AZFE)
17594-28020	Protector, Exhaust Pipe, No.2	Exhaust Pipe ([06.2009 - ] (0906- )2AZFE)
90105-10388	BOLT	Exhaust Pipe ([06.2009 - ] (0906- )2AZFE)
90461-12353	Clamp, Exhaust Pipe	Exhaust Pipe ([06.2009 - ] (0906- )2AZFE)
90461-12405	New Genuine Part	Exhaust Pipe ([06.2009 - ] (0906- )2AZFE)
90461-12447	Clamp, Exhaust Pipe	Exhaust Pipe ([06.2009 - ] (0906- )2AZFE)
90501-35035	Spring, Exhaust Pipe	Exhaust Pipe ([06.2009 - ] (0906- )2AZFE)
90501-35037	Spring, Exhaust Pipe	Exhaust Pipe ([06.2009 - ] (0906- )2AZFE)
90901-05020	Bolt Or Ring, Exhaust Pipe Front (For Front)	Exhaust Pipe ([06.2009 - ] (0906- )2AZFE)
90901-05026	Bolt, Exhaust Pipe Support	Exhaust Pipe ([06.2009 - ] (0906- )2AZFE)
90917-06078	Gasket, Exhaust Pipe	Exhaust Pipe ([06.2009 - ] (0906- )2AZFE)
90917-A6003	Gasket, Exhaust Pipe	Exhaust Pipe ([06.2009 - ] (0906- )2AZFE)
91551-80614	Bolt(For Vacuum Transmitting Pipe)	Exhaust Pipe ([06.2009 - ] (0906- )2AZFE)
91553-80835	New Genuine Part	Exhaust Pipe ([06.2009 - ] (0906- )2AZFE)
