Search › Model › ANE10
ANE10

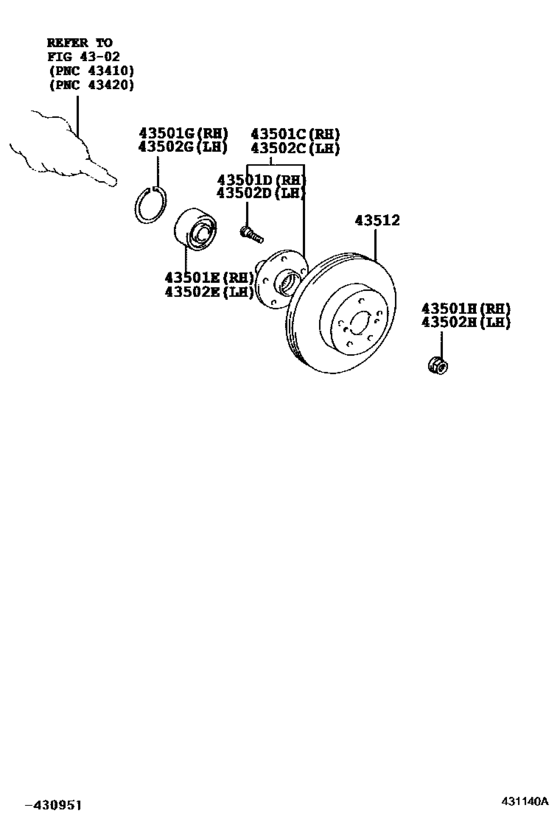

Front Axle Hub ([01.2003 - ] (0301- )) 8
| # | OEM | Part name |
|---|---|---|
| 43501 | 43502-32080 | Hub Sub-Assy, Front Axle |
| 43501 | 90942-02049 | Bolt, Hub |
| 43501 | 90942-02082 | Bolt, Hub |
| 43501 | 90363-40066 | Bearing (For Axle Shaft) |
| 43501 | 90521-79002 | Ring, Snap (For Axle Shaft) |
| 43501 | 90177-22001 | Nut (For Axle Shaft) |
| 43512 | 43512-68010 | Disc, Front |
| 43512 | 43512-68011 | Disc, Front |
| OEM | Part name | Category |
|---|---|---|
| 43502-32080 | Hub Sub-Assy, Front Axle | Front Axle Hub ([01.2003 - ] (0301- )) |
| 43512-68010 | Disc, Front | Front Axle Hub ([01.2003 - ] (0301- )) |
| 43512-68011 | Disc, Front | Front Axle Hub ([01.2003 - ] (0301- )) |
| 90177-22001 | Nut (For Axle Shaft) | Front Axle Hub ([01.2003 - ] (0301- )) |
| 90363-40066 | Bearing (For Axle Shaft) | Front Axle Hub ([01.2003 - ] (0301- )) |
| 90521-79002 | Ring, Snap (For Axle Shaft) | Front Axle Hub ([01.2003 - ] (0301- )) |
| 90942-02049 | Bolt, Hub | Front Axle Hub ([01.2003 - ] (0301- )) |
| 90942-02082 | Bolt, Hub | Front Axle Hub ([01.2003 - ] (0301- )) |
