ANE10

Toyota WISH · 2003 · 3,715 parts · 194 categories

3,715 items

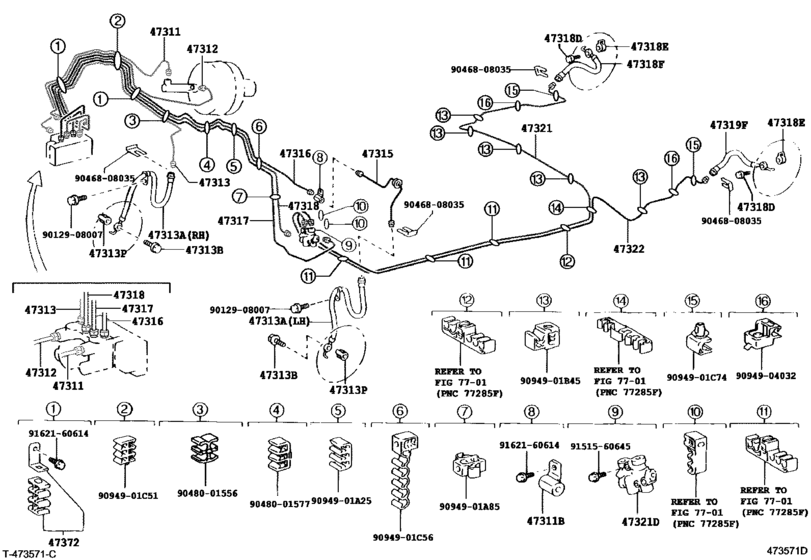

Brake Tube & Clamp ([04.2003 - ] (0304- )ANE10) 32

#	OEM	Part name
47311	47311-68020	Tube, Front Brake, No.1
47311	90412-10167	Way(For Front Brake Tube)
47312	47312-68020	Tube, Front Brake, No.2
47313	47313-68020	Tube, Front Brake, No.3
47313	90947-02D65	Hose, Flexible, No.1(For Front)
47313	90947-02D66	Hose, Flexible, No.1(For Front)
47313	90401-10058	Bolt, Union(For Front Flexible Hose)
47313	47389-50020	Gasket(For Front Flexible Hose)
47315	47315-12490	Tube, Front Brake, No.5
47316	47316-68020	Tube, Front Brake, No.6
47317	47317-68020	Tube, Front Brake, No.7
47318	47318-68020	Tube, Front Brake, No.8
47318	90947-02D43	Hose, Flexible(For Rear Rh)
47319	90947-02D44	Hose, Flexible(For Rear Lh)
47321	47321-68010	Tube, Rear Brake, No.1
47321	90412-10140	Valve Assy, Proportioning
47322	47322-68010	Tube, Rear Brake, No.2
47372	47374-12050	Clamp, Brake Tube, No.1
9094901	90949-01A25	Clamp, Brake Tube, No.1
9094901	90949-01A85	New Genuine Part
9094901	90949-01B45	Clamp(For Clutch Master Cylinder Tube)
9094901	90949-01C51	Clamp, Brake Tube, No.1
9094901	90949-01C56	Clamp, Brake Tube, No.2
9094901	90949-01C74	Clamp, Brake Tube, No.8
9012908007	90129-08007	New Genuine Part
9046808035	90468-08035	CLIP
9046808035	90468-A0007	New Genuine Part
9048001556	90480-01556	Grommet, No.2(For Front Brake Tube)
9048001577	90480-01577	GROMMET
9094904032	90949-04032	Clamp, Brake Tube, No.7
9151560645	91515-60645	New Genuine Part
9162160614	91621-60614	Bolt(For Transaxle & Engine Setting)

OEM	Part name	Category
47311-68020	Tube, Front Brake, No.1	Brake Tube & Clamp ([04.2003 - ] (0304- )ANE10)
47312-68020	Tube, Front Brake, No.2	Brake Tube & Clamp ([04.2003 - ] (0304- )ANE10)
47313-68020	Tube, Front Brake, No.3	Brake Tube & Clamp ([04.2003 - ] (0304- )ANE10)
47315-12490	Tube, Front Brake, No.5	Brake Tube & Clamp ([04.2003 - ] (0304- )ANE10)
47316-68020	Tube, Front Brake, No.6	Brake Tube & Clamp ([04.2003 - ] (0304- )ANE10)
47317-68020	Tube, Front Brake, No.7	Brake Tube & Clamp ([04.2003 - ] (0304- )ANE10)
47318-68020	Tube, Front Brake, No.8	Brake Tube & Clamp ([04.2003 - ] (0304- )ANE10)
47321-68010	Tube, Rear Brake, No.1	Brake Tube & Clamp ([04.2003 - ] (0304- )ANE10)
47322-68010	Tube, Rear Brake, No.2	Brake Tube & Clamp ([04.2003 - ] (0304- )ANE10)
47374-12050	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([04.2003 - ] (0304- )ANE10)
47389-50020	Gasket(For Front Flexible Hose)	Brake Tube & Clamp ([04.2003 - ] (0304- )ANE10)
90129-08007	New Genuine Part	Brake Tube & Clamp ([04.2003 - ] (0304- )ANE10)
90401-10058	Bolt, Union(For Front Flexible Hose)	Brake Tube & Clamp ([04.2003 - ] (0304- )ANE10)
90412-10140	Valve Assy, Proportioning	Brake Tube & Clamp ([04.2003 - ] (0304- )ANE10)
90412-10167	Way(For Front Brake Tube)	Brake Tube & Clamp ([04.2003 - ] (0304- )ANE10)
90468-08035	CLIP	Brake Tube & Clamp ([04.2003 - ] (0304- )ANE10)
90468-A0007	New Genuine Part	Brake Tube & Clamp ([04.2003 - ] (0304- )ANE10)
90480-01556	Grommet, No.2(For Front Brake Tube)	Brake Tube & Clamp ([04.2003 - ] (0304- )ANE10)
90480-01577	GROMMET	Brake Tube & Clamp ([04.2003 - ] (0304- )ANE10)
90947-02D43	Hose, Flexible(For Rear Rh)	Brake Tube & Clamp ([04.2003 - ] (0304- )ANE10)
90947-02D44	Hose, Flexible(For Rear Lh)	Brake Tube & Clamp ([04.2003 - ] (0304- )ANE10)
90947-02D65	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([04.2003 - ] (0304- )ANE10)
90947-02D66	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([04.2003 - ] (0304- )ANE10)
90949-01A25	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([04.2003 - ] (0304- )ANE10)
90949-01A85	New Genuine Part	Brake Tube & Clamp ([04.2003 - ] (0304- )ANE10)
90949-01B45	Clamp(For Clutch Master Cylinder Tube)	Brake Tube & Clamp ([04.2003 - ] (0304- )ANE10)
90949-01C51	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([04.2003 - ] (0304- )ANE10)
90949-01C56	Clamp, Brake Tube, No.2	Brake Tube & Clamp ([04.2003 - ] (0304- )ANE10)
90949-01C74	Clamp, Brake Tube, No.8	Brake Tube & Clamp ([04.2003 - ] (0304- )ANE10)
90949-04032	Clamp, Brake Tube, No.7	Brake Tube & Clamp ([04.2003 - ] (0304- )ANE10)
91515-60645	New Genuine Part	Brake Tube & Clamp ([04.2003 - ] (0304- )ANE10)
91621-60614	Bolt(For Transaxle & Engine Setting)	Brake Tube & Clamp ([04.2003 - ] (0304- )ANE10)
