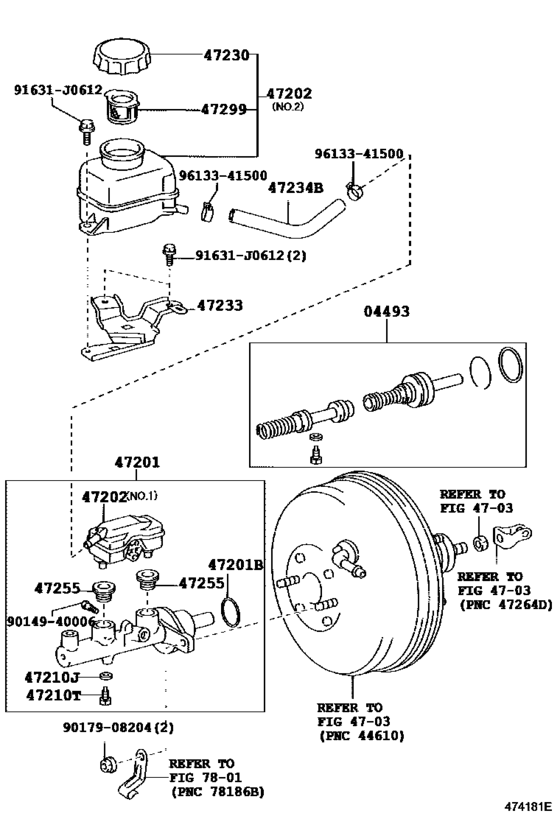

| 04493-33110 |
Cylinder Kit, Brake Master |
Brake Master Cylinder ([01.2003 - ] (0301- )ANE10,ZNE1#) |
| 47201-68010 |
Cylinder Sub-Assy, Brake Master |
Brake Master Cylinder ([01.2003 - ] (0301- )ANE10,ZNE1#) |
| 47220-48130 |
Reservoir Sub-Assy, Brake Master Cylinder |
Brake Master Cylinder ([01.2003 - ] (0301- )ANE10,ZNE1#) |
| 47220-68010 |
Reservoir Sub-Assy, Brake Master Cylinder |
Brake Master Cylinder ([01.2003 - ] (0301- )ANE10,ZNE1#) |
| 47230-20100 |
Cap Assy, Brake Master Cylinder Reservoir Filler |
Brake Master Cylinder ([01.2003 - ] (0301- )ANE10,ZNE1#) |
| 47230-47090 |
Cap Assy, Brake Master Cylinder Reservoir Filler |
Brake Master Cylinder ([01.2003 - ] (0301- )ANE10,ZNE1#) |
| 47233-68010 |
Bracket, Reservoir |
Brake Master Cylinder ([01.2003 - ] (0301- )ANE10,ZNE1#) |
| 47234-68020 |
Tube, Reservoir, No.1 |
Brake Master Cylinder ([01.2003 - ] (0301- )ANE10,ZNE1#) |
| 47255-16010 |
Grommet, Master Cylinder Reservoir |
Brake Master Cylinder ([01.2003 - ] (0301- )ANE10,ZNE1#) |
| 47299-20060 |
Strainer, Brake Master Cylinder Reservoir |
Brake Master Cylinder ([01.2003 - ] (0301- )ANE10,ZNE1#) |
| 90029-20059 |
Ring, O(For Brake Master Cylinder) |
Brake Master Cylinder ([01.2003 - ] (0301- )ANE10,ZNE1#) |
| 90029-43001 |
Gasket(For Master Cylinder) |
Brake Master Cylinder ([01.2003 - ] (0301- )ANE10,ZNE1#) |
| 90080-18070 |
NUT, WWASHER |
Brake Master Cylinder ([01.2003 - ] (0301- )ANE10,ZNE1#) |
| 90109-06077 |
Bolt(For Brake Master Cylinder) |
Brake Master Cylinder ([01.2003 - ] (0301- )ANE10,ZNE1#) |
| 90149-40006 |
Bolt |
Brake Master Cylinder ([01.2003 - ] (0301- )ANE10,ZNE1#) |
| 90179-08204 |
Nut |
Brake Master Cylinder ([01.2003 - ] (0301- )ANE10,ZNE1#) |
| 91631-J0612 |
BRACKET |
Brake Master Cylinder ([01.2003 - ] (0301- )ANE10,ZNE1#) |
| 96133-41500 |
Clamp Or Clip(For Air Hose, No.5) |
Brake Master Cylinder ([01.2003 - ] (0301- )ANE10,ZNE1#) |
