Search › Model › ANE10

ANE10

Toyota WISH · 2003 · 3,715 parts · 194 categories

3,715 items

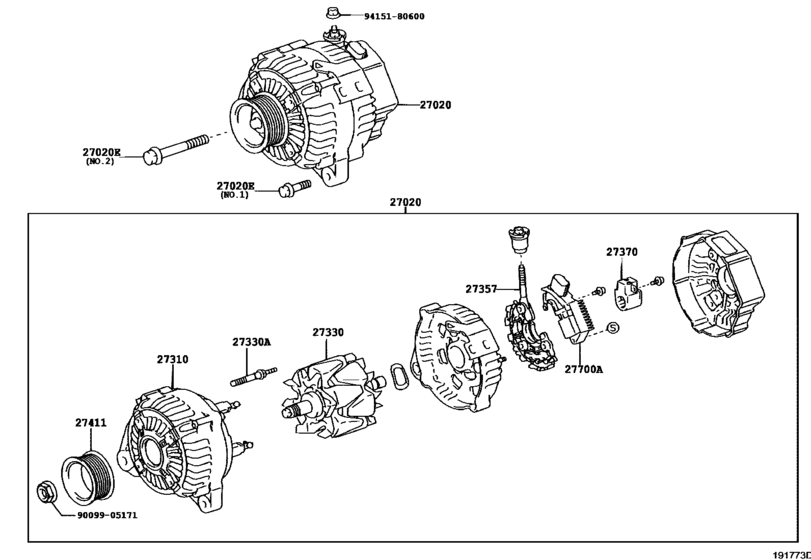

Alternator ([04.2003 - ] 12V 80A (0304- )1AZFSE) 23

#	OEM	Part name
27020	27060-28190	Alternator Assy
27020	27060-28220	Alternator Assy
27020	27060-28221	Alternator Assy
27020	91511-J0840	Bolt(For Alternator)
27020	91512-81085	Bolt(For Alternator)
27020	91551-80840	Bolt(For Head To Camshaft Bearing Cap)
27310	27310-28120	Frame Assy, Drive End, Alternator
27310	27310-28170	Frame Assy, Drive End, Alternator
27330	27330-30070	Rotor Assy, Alternator
27330	27330-62220	Rotor Assy, Alternator
27330	27330-30130	Rotor Assy, Alternator
27330	90099-10140	Bearing(For Alternator Rotor)
27357	27357-22200	Holder, Alternator, W/rectifier
27370	27370-23120	Holder Assy, Alternator Brush
27370	27370-58460	Holder Assy, Alternator Brush
27411	27411-28060	Pulley, Alternator
27411	27411-28160	Pulley, Alternator
27411	27415-0W090	Pulley, Alternator
27411	27415-0W092	Pulley, Alternator W/clutch
27411	27416-0W050	Cap, Alternator Pulley
27700	27700-28080	Regulator Assy, Generator
9009905171	90099-05171	Nut(For Alternator Pulley)
9415180600	94151-80600	Nut, Cap(For Cylinder Head Cover)

OEM	Part name	Category
27060-28190	Alternator Assy	Alternator ([04.2003 - ] 12V 80A (0304- )1AZFSE)
27060-28220	Alternator Assy	Alternator ([04.2003 - ] 12V 80A (0304- )1AZFSE)
27060-28221	Alternator Assy	Alternator ([04.2003 - ] 12V 80A (0304- )1AZFSE)
27310-28120	Frame Assy, Drive End, Alternator	Alternator ([04.2003 - ] 12V 80A (0304- )1AZFSE)
27310-28170	Frame Assy, Drive End, Alternator	Alternator ([04.2003 - ] 12V 80A (0304- )1AZFSE)
27330-30070	Rotor Assy, Alternator	Alternator ([04.2003 - ] 12V 80A (0304- )1AZFSE)
27330-30130	Rotor Assy, Alternator	Alternator ([04.2003 - ] 12V 80A (0304- )1AZFSE)
27330-62220	Rotor Assy, Alternator	Alternator ([04.2003 - ] 12V 80A (0304- )1AZFSE)
27357-22200	Holder, Alternator, W/rectifier	Alternator ([04.2003 - ] 12V 80A (0304- )1AZFSE)
27370-23120	Holder Assy, Alternator Brush	Alternator ([04.2003 - ] 12V 80A (0304- )1AZFSE)
27370-58460	Holder Assy, Alternator Brush	Alternator ([04.2003 - ] 12V 80A (0304- )1AZFSE)
27411-28060	Pulley, Alternator	Alternator ([04.2003 - ] 12V 80A (0304- )1AZFSE)
27411-28160	Pulley, Alternator	Alternator ([04.2003 - ] 12V 80A (0304- )1AZFSE)
27415-0W090	Pulley, Alternator	Alternator ([04.2003 - ] 12V 80A (0304- )1AZFSE)
27415-0W092	Pulley, Alternator W/clutch	Alternator ([04.2003 - ] 12V 80A (0304- )1AZFSE)
27416-0W050	Cap, Alternator Pulley	Alternator ([04.2003 - ] 12V 80A (0304- )1AZFSE)
27700-28080	Regulator Assy, Generator	Alternator ([04.2003 - ] 12V 80A (0304- )1AZFSE)
90099-05171	Nut(For Alternator Pulley)	Alternator ([04.2003 - ] 12V 80A (0304- )1AZFSE)
90099-10140	Bearing(For Alternator Rotor)	Alternator ([04.2003 - ] 12V 80A (0304- )1AZFSE)
91511-J0840	Bolt(For Alternator)	Alternator ([04.2003 - ] 12V 80A (0304- )1AZFSE)
91512-81085	Bolt(For Alternator)	Alternator ([04.2003 - ] 12V 80A (0304- )1AZFSE)
91551-80840	Bolt(For Head To Camshaft Bearing Cap)	Alternator ([04.2003 - ] 12V 80A (0304- )1AZFSE)
94151-80600	Nut, Cap(For Cylinder Head Cover)	Alternator ([04.2003 - ] 12V 80A (0304- )1AZFSE)
