Search › Model › ANA15
ANA15

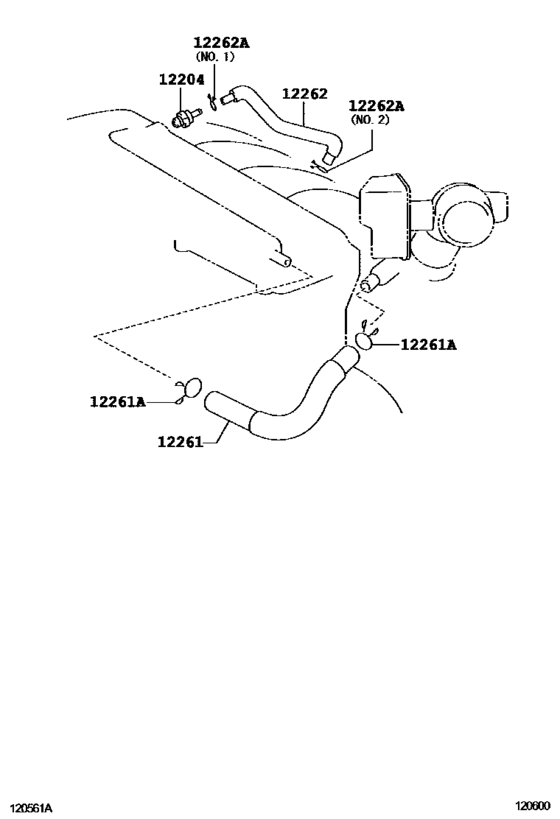

Ventilation Hose ([09.2007 - ] (0709- )2AZFE) 7
| # | OEM | Part name |
|---|---|---|
| 12204 | 12204-0H020 | Valve Sub-Assy, Ventilation |
| 12204 | 12204-28030 | Valve Sub-Assy, Ventilation |
| 12261 | 12261-28180 | Hose, Ventilation |
| 12261 | 90467-19003 | Clip Or Clamp(For Ventilation Hose) |
| 12262 | 12262-28021 | Hose, Ventilation, No.2 |
| 12262 | 90467-13103 | Clip Or Clamp(For Ventilation Hose) |
| 12262 | 90467-16035 | Clip Or Clamp(For Ventilation Hose) |
| OEM | Part name | Category |
|---|---|---|
| 12204-0H020 | Valve Sub-Assy, Ventilation | Ventilation Hose ([09.2007 - ] (0709- )2AZFE) |
| 12204-28030 | Valve Sub-Assy, Ventilation | Ventilation Hose ([09.2007 - ] (0709- )2AZFE) |
| 12261-28180 | Hose, Ventilation | Ventilation Hose ([09.2007 - ] (0709- )2AZFE) |
| 12262-28021 | Hose, Ventilation, No.2 | Ventilation Hose ([09.2007 - ] (0709- )2AZFE) |
| 90467-13103 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([09.2007 - ] (0709- )2AZFE) |
| 90467-16035 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([09.2007 - ] (0709- )2AZFE) |
| 90467-19003 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([09.2007 - ] (0709- )2AZFE) |
