ANA15

Toyota MARK-X-ZIO · 2007 · 4,896 parts · 203 categories
ANA15 ×

← Back to categories

4,896 items

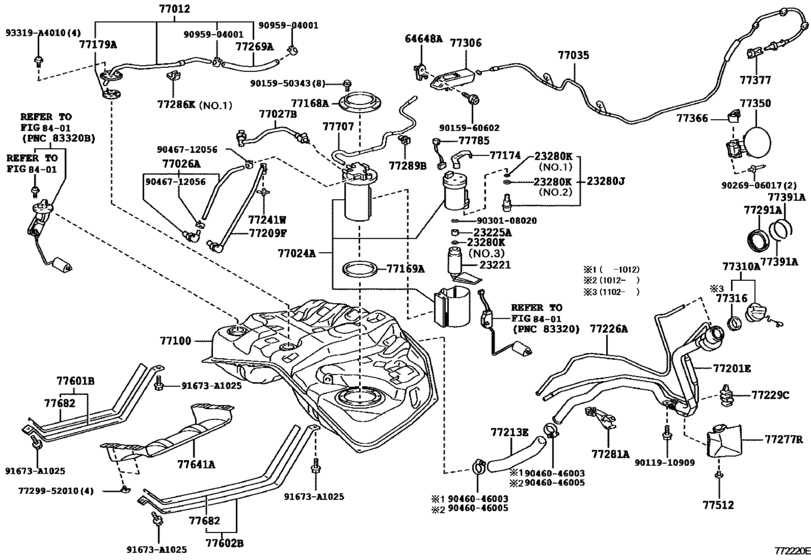

Fuel Tank & Tube ([09.2007 - ] ﾌｭｰｴﾙ ﾀﾝｸ (0709- )ANA15) 64
#OEMPart name
23221 23220-28350 Pump, Fuel
23221 23220-28351 Pump, Fuel
23221 77785-12010 Harness, Fuel Pump
23221 23220-28270 Pump, Fuel
23225 23225-21020 Spacer, Fuel Pump
23280 23280-21010 Regulator Assy, Fuel Pressure
23280 90301-04013 Ring, O(For Fuel Pump)
23280 90301-11025 Ring, O(For Fuel Pump)
23280 90301-15024 Ring, O(For Fuel Pump)
64648 64648-12020 Grommet, Luggage Door Lock Opener
77012 77012-72010 Tube Sub-Assy, Fuel Tank Breather
77024 77024-72021 Plate Sub-Assy, Fuel Suction
77026 77026-72020 Tube Sub-Assy, Fuel Evaporation, No.1
77027 77027-72010 Tube Sub-Assy, Fuel Emission, No.1
77035 77035-72010 Cable Sub-Assy, Fuel Lid Lock Control
77100 77001-72020 Tank Assy, Fuel
77168 77168-52020 Plate, Fuel Tank Vent Tube Set
77169 77169-52010 Gasket, Fuel Suction Tube Set
77174 77174-72020 Support, Fuel Suction, No.1
77179 77179-20040 Gasket, Fuel Tank Breather Tube
77201 77201-72020 Pipe Sub-Assy, Fuel Tank Filler
77209 77209-72020 Tube Sub-Assy, Fuel Tank Main
77213 77213-72020 Hose, Fuel Tank To Filler Pipe
77226 77226-72020 Tube, Fuel Tank Breather, No.6
77229 77229-12070 Clamp, Breather Tube
77241 77241-33011 Clip, Tube Joint
77241 77241-60320 Clip, Tube Joint
77269 95313-13020 Hose, Fuel, No.1 (For Breather Tube)
77277 77277-12180 Protector, Fuel Tank Filler Pipe
77281 77281-72020 Clamp, Fuel Filler Pipe
77286 77286-12120 Clamp, Fuel Tube W/grommet, No.2
77286 77286-68010 Clamp, Fuel Tube, No.3
77289 77298-30170 Clamp, Fuel Tube, No.3
77291 77291-52010 Shield Assy, Fuel Tank Filler Pipe
77306 77306-52030 Lever Sub-Assy, Fuel Lid Lock Open
77306 77306-52050 Lever Sub-Assy, Fuel Lid Lock Open
77310 77300-52030 Cap Assy, Fuel Tank
77316 77316-52040 Gasket, Fuel Tank Cap
77350 77350-72010 Lid Assy, Fuel Filler Opening
77350 77350-72020 Lid Assy, Fuel Filler Opening
77366 77366-52010 Spring, Fuel Filler Opening Lid Hinge
77377 77377-52020 Retainer, Fuel Filler Opening Lid Lock
77391 77391-12020 Ring, Fuel Inlet Box
77512 77512-35140 Bracket, Fuel Tank
77601 77601-72020 Band Sub-Assy, Fuel Tank, No.1 Rh
77602 77602-72020 Band Sub-Assy, Fuel Tank, No.1 Lh
77641 77641-72020 Protector, Fuel Tank, No.1
77682 77681-12070 Seat, Fuel Tank Band, Rh
77707 77707-72010 Tube Sub-Assy, Charcoal Canister Outlet
77785 77785-12020 Harness, Fuel Pump
77785 77785-12021 Harness, Fuel Pump
91673 91673-A1025 New Genuine Part
93319 93319-A4010 SCREW WWASHER
7729952010 77299-52010 Clamp, Fuel Tube, No.5
9011910909 90119-10909 Bolt
9015950343 90159-50343 SCREW, W-WASHER
9015960602 90159-60602 SCREW
9026906017 90269-06017 RIVET
9030108020 90301-08020 Ring, O(For Fuel Pump)
9046046003 90460-46003 Clamp (For Fuel Filler Pipe)
9046046003 90460-46005 Clamp (For Fuel Filler Pipe)
9046712056 90467-12056 Clamp Or Clip(For Throttle Body Hose)
9046712056 90466-T0048 New Genuine Part
9095904001 90959-04001 Clip, Fuel Hose
