Search › Model › ANA15

ANA15

Toyota MARK-X-ZIO · 2007 · 4,896 parts · 203 categories

4,896 items

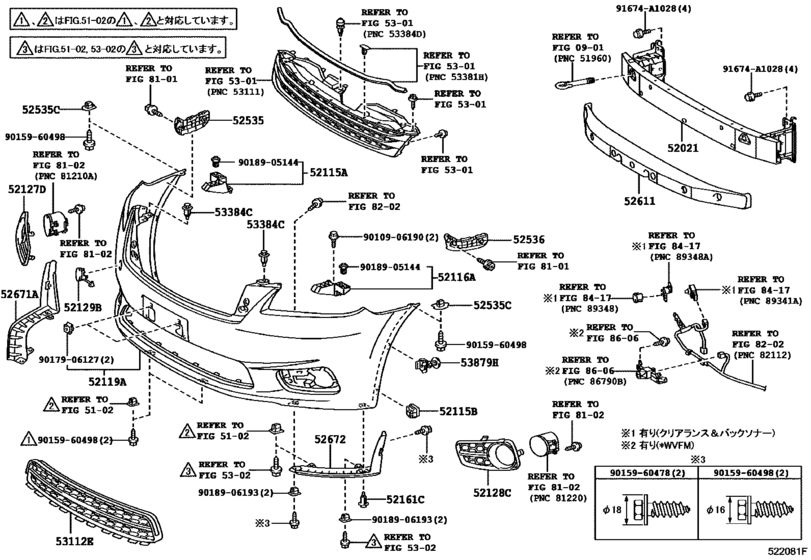

Front Bumper & Bumper Stay ([02.2009 - ] (0902- )ARIAL) 62

#	OEM	Part name
52021	52021-72010	Reinforcement Sub-Assy, Front Bumper
52115	52115-72020	Support, Front Bumper Side, Rh
52115	52115-30120	Retainer, Front Bumper Extension, No.1
52116	52116-72020	Support, Front Bumper Side, Lh
52119	52119-72040-A0	Cover, Front Bumper
52119	52119-72040-B0	Cover, Front Bumper
52119	52119-72902	Cover, Front Bumper
52119	52119-72040-B1	Cover, Front Bumper
52119	52119-72040-B2	Cover, Front Bumper
52119	52119-72040-C0	Cover, Front Bumper
52119	52119-72040-C1	Cover, Front Bumper
52119	52119-72040-D0	Cover, Front Bumper
52119	52119-72040-D1	Cover, Front Bumper
52119	52119-72040-H0	Cover, Front Bumper
52119	52119-72040-J0	Cover, Front Bumper
52119	52119-72040-J1	Cover, Front Bumper
52119	52119-72050-A0	Cover, Front Bumper
52119	52119-72907	Cover, Front Bumper
52119	52119-72050-B0	Cover, Front Bumper
52119	52119-72050-B1	Cover, Front Bumper
52119	52119-72050-B2	Cover, Front Bumper
52119	52119-72050-C0	Cover, Front Bumper
52119	52119-72050-C1	Cover, Front Bumper
52119	52119-72050-D0	Cover, Front Bumper
52119	52119-72050-D1	Cover, Front Bumper
52119	52119-72050-H0	Cover, Front Bumper
52119	52119-72050-J0	Cover, Front Bumper
52119	52119-72050-J1	Cover, Front Bumper
52127	52127-72010	Cover, Front Bumper Hole, Rh
52128	52128-72010	Cover, Front Bumper Hole, Lh
52129	52129-72020-A0	Cover, Front Bumper, Lower
52129	52129-72020-B0	Cover, Front Bumper, Lower
52129	52129-72902	Cover, Front Bumper, Lower
52129	52129-72020-B1	Cover, Front Bumper, Lower
52129	52129-72020-B2	Cover, Front Bumper, Lower
52129	52129-72020-C0	Cover, Front Bumper, Lower
52129	52129-72020-C1	Cover, Front Bumper, Lower
52129	52129-72020-D0	Cover, Front Bumper, Lower
52129	52129-72020-D1	Cover, Front Bumper, Lower
52129	52129-72020-H0	Cover, Front Bumper, Lower
52129	52129-72020-J0	Cover, Front Bumper, Lower
52129	52129-72020-J1	Cover, Front Bumper, Lower
52161	52161-16010	Clip
52161	52161-0K040	Clip
52161	52161-02020	Clip
52535	52535-72010	Retainer, Front Bumper Side, Rh
52535	52535-50060	Retainer, Front Bumper Side
52536	52536-72010	Retainer, Front Bumper Side, Lh
52611	52611-72011	Absorber, Front Bumper Energy
52611	52611-72020	Absorber, Front Bumper Energy
52671	52671-72010	Extension, Front Bumper Arm, Rh
52672	52672-72010	Extension, Front Bumper Arm, Lh
53112	53112-72020	Grille, Radiator, Lower No.1
53384	53384-68010	Cushion, Radiator Grille
53879	53879-28010	Retainer, Front Fender Liner
91674	91674-A1028	BOLT FLANGE
9010906190	90109-06190	BOLT
9015960478	90159-60478	SCREW WWASHER
9015960498	90159-60498	SCREW W-WASHER
9017906127	90179-06127	Bracket, Front Licence Plate Mounting
9018905144	90189-05144	GROMMET SCREW
9018906193	90189-06193	Grommet(For Engine Under Cover)

OEM	Part name	Category
52021-72010	Reinforcement Sub-Assy, Front Bumper	Front Bumper & Bumper Stay ([02.2009 - ] (0902- )ARIAL)
52115-30120	Retainer, Front Bumper Extension, No.1	Front Bumper & Bumper Stay ([02.2009 - ] (0902- )ARIAL)
52115-72020	Support, Front Bumper Side, Rh	Front Bumper & Bumper Stay ([02.2009 - ] (0902- )ARIAL)
52116-72020	Support, Front Bumper Side, Lh	Front Bumper & Bumper Stay ([02.2009 - ] (0902- )ARIAL)
52119-72040-A0	Cover, Front Bumper	Front Bumper & Bumper Stay ([02.2009 - ] (0902- )ARIAL)
52119-72040-B0	Cover, Front Bumper	Front Bumper & Bumper Stay ([02.2009 - ] (0902- )ARIAL)
52119-72040-B1	Cover, Front Bumper	Front Bumper & Bumper Stay ([02.2009 - ] (0902- )ARIAL)
52119-72040-B2	Cover, Front Bumper	Front Bumper & Bumper Stay ([02.2009 - ] (0902- )ARIAL)
52119-72040-C0	Cover, Front Bumper	Front Bumper & Bumper Stay ([02.2009 - ] (0902- )ARIAL)
52119-72040-C1	Cover, Front Bumper	Front Bumper & Bumper Stay ([02.2009 - ] (0902- )ARIAL)
52119-72040-D0	Cover, Front Bumper	Front Bumper & Bumper Stay ([02.2009 - ] (0902- )ARIAL)
52119-72040-D1	Cover, Front Bumper	Front Bumper & Bumper Stay ([02.2009 - ] (0902- )ARIAL)
52119-72040-H0	Cover, Front Bumper	Front Bumper & Bumper Stay ([02.2009 - ] (0902- )ARIAL)
52119-72040-J0	Cover, Front Bumper	Front Bumper & Bumper Stay ([02.2009 - ] (0902- )ARIAL)
52119-72040-J1	Cover, Front Bumper	Front Bumper & Bumper Stay ([02.2009 - ] (0902- )ARIAL)
52119-72050-A0	Cover, Front Bumper	Front Bumper & Bumper Stay ([02.2009 - ] (0902- )ARIAL)
52119-72050-B0	Cover, Front Bumper	Front Bumper & Bumper Stay ([02.2009 - ] (0902- )ARIAL)
52119-72050-B1	Cover, Front Bumper	Front Bumper & Bumper Stay ([02.2009 - ] (0902- )ARIAL)
52119-72050-B2	Cover, Front Bumper	Front Bumper & Bumper Stay ([02.2009 - ] (0902- )ARIAL)
52119-72050-C0	Cover, Front Bumper	Front Bumper & Bumper Stay ([02.2009 - ] (0902- )ARIAL)
52119-72050-C1	Cover, Front Bumper	Front Bumper & Bumper Stay ([02.2009 - ] (0902- )ARIAL)
52119-72050-D0	Cover, Front Bumper	Front Bumper & Bumper Stay ([02.2009 - ] (0902- )ARIAL)
52119-72050-D1	Cover, Front Bumper	Front Bumper & Bumper Stay ([02.2009 - ] (0902- )ARIAL)
52119-72050-H0	Cover, Front Bumper	Front Bumper & Bumper Stay ([02.2009 - ] (0902- )ARIAL)
52119-72050-J0	Cover, Front Bumper	Front Bumper & Bumper Stay ([02.2009 - ] (0902- )ARIAL)
52119-72050-J1	Cover, Front Bumper	Front Bumper & Bumper Stay ([02.2009 - ] (0902- )ARIAL)
52119-72902	Cover, Front Bumper	Front Bumper & Bumper Stay ([02.2009 - ] (0902- )ARIAL)
52119-72907	Cover, Front Bumper	Front Bumper & Bumper Stay ([02.2009 - ] (0902- )ARIAL)
52127-72010	Cover, Front Bumper Hole, Rh	Front Bumper & Bumper Stay ([02.2009 - ] (0902- )ARIAL)
52128-72010	Cover, Front Bumper Hole, Lh	Front Bumper & Bumper Stay ([02.2009 - ] (0902- )ARIAL)
52129-72020-A0	Cover, Front Bumper, Lower	Front Bumper & Bumper Stay ([02.2009 - ] (0902- )ARIAL)
52129-72020-B0	Cover, Front Bumper, Lower	Front Bumper & Bumper Stay ([02.2009 - ] (0902- )ARIAL)
52129-72020-B1	Cover, Front Bumper, Lower	Front Bumper & Bumper Stay ([02.2009 - ] (0902- )ARIAL)
52129-72020-B2	Cover, Front Bumper, Lower	Front Bumper & Bumper Stay ([02.2009 - ] (0902- )ARIAL)
52129-72020-C0	Cover, Front Bumper, Lower	Front Bumper & Bumper Stay ([02.2009 - ] (0902- )ARIAL)
52129-72020-C1	Cover, Front Bumper, Lower	Front Bumper & Bumper Stay ([02.2009 - ] (0902- )ARIAL)
52129-72020-D0	Cover, Front Bumper, Lower	Front Bumper & Bumper Stay ([02.2009 - ] (0902- )ARIAL)
52129-72020-D1	Cover, Front Bumper, Lower	Front Bumper & Bumper Stay ([02.2009 - ] (0902- )ARIAL)
52129-72020-H0	Cover, Front Bumper, Lower	Front Bumper & Bumper Stay ([02.2009 - ] (0902- )ARIAL)
52129-72020-J0	Cover, Front Bumper, Lower	Front Bumper & Bumper Stay ([02.2009 - ] (0902- )ARIAL)
52129-72020-J1	Cover, Front Bumper, Lower	Front Bumper & Bumper Stay ([02.2009 - ] (0902- )ARIAL)
52129-72902	Cover, Front Bumper, Lower	Front Bumper & Bumper Stay ([02.2009 - ] (0902- )ARIAL)
52161-02020	Clip	Front Bumper & Bumper Stay ([02.2009 - ] (0902- )ARIAL)
52161-0K040	Clip	Front Bumper & Bumper Stay ([02.2009 - ] (0902- )ARIAL)
52161-16010	Clip	Front Bumper & Bumper Stay ([02.2009 - ] (0902- )ARIAL)
52535-50060	Retainer, Front Bumper Side	Front Bumper & Bumper Stay ([02.2009 - ] (0902- )ARIAL)
52535-72010	Retainer, Front Bumper Side, Rh	Front Bumper & Bumper Stay ([02.2009 - ] (0902- )ARIAL)
52536-72010	Retainer, Front Bumper Side, Lh	Front Bumper & Bumper Stay ([02.2009 - ] (0902- )ARIAL)
52611-72011	Absorber, Front Bumper Energy	Front Bumper & Bumper Stay ([02.2009 - ] (0902- )ARIAL)
52611-72020	Absorber, Front Bumper Energy	Front Bumper & Bumper Stay ([02.2009 - ] (0902- )ARIAL)
52671-72010	Extension, Front Bumper Arm, Rh	Front Bumper & Bumper Stay ([02.2009 - ] (0902- )ARIAL)
52672-72010	Extension, Front Bumper Arm, Lh	Front Bumper & Bumper Stay ([02.2009 - ] (0902- )ARIAL)
53112-72020	Grille, Radiator, Lower No.1	Front Bumper & Bumper Stay ([02.2009 - ] (0902- )ARIAL)
53384-68010	Cushion, Radiator Grille	Front Bumper & Bumper Stay ([02.2009 - ] (0902- )ARIAL)
53879-28010	Retainer, Front Fender Liner	Front Bumper & Bumper Stay ([02.2009 - ] (0902- )ARIAL)
90109-06190	BOLT	Front Bumper & Bumper Stay ([02.2009 - ] (0902- )ARIAL)
90159-60478	SCREW WWASHER	Front Bumper & Bumper Stay ([02.2009 - ] (0902- )ARIAL)
90159-60498	SCREW W-WASHER	Front Bumper & Bumper Stay ([02.2009 - ] (0902- )ARIAL)
90179-06127	Bracket, Front Licence Plate Mounting	Front Bumper & Bumper Stay ([02.2009 - ] (0902- )ARIAL)
90189-05144	GROMMET SCREW	Front Bumper & Bumper Stay ([02.2009 - ] (0902- )ARIAL)
90189-06193	Grommet(For Engine Under Cover)	Front Bumper & Bumper Stay ([02.2009 - ] (0902- )ARIAL)
91674-A1028	BOLT FLANGE	Front Bumper & Bumper Stay ([02.2009 - ] (0902- )ARIAL)
