Search › Model › ANA15

ANA15

Toyota MARK-X-ZIO · 2007 · 4,896 parts · 203 categories

← Back to categories

4,896 items

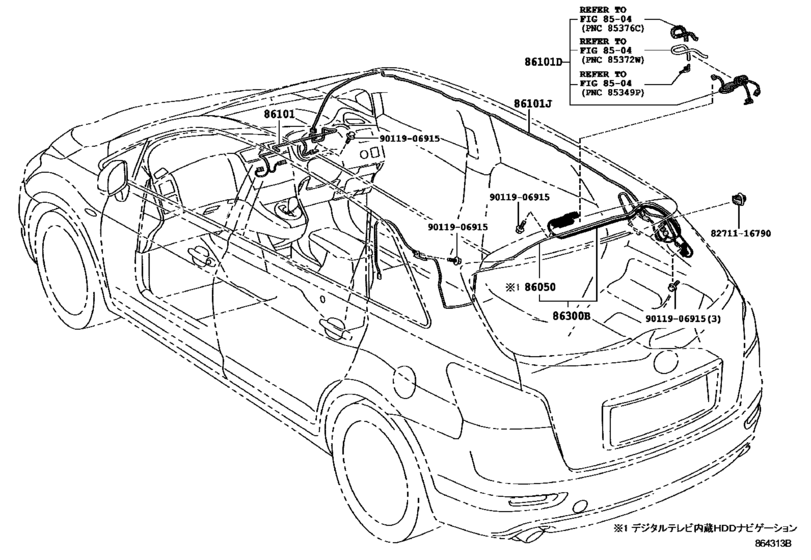

Antenna ([08.2010 - ] (1008- )) 15

#	OEM	Part name
86050	86050-12040	Antenna Assy, Television
86050	86050-72010	Antenna Assy, Television
86101	86101-72050	Cord Sub-Assy, Antenna
86101	86101-72060	Cord Sub-Assy, Antenna
86101	86101-72150	Cord Sub-Assy, Antenna
86101	86101-72070	Cord Sub-Assy, Antenna, No.3
86101	86101-72080	Cord Sub-Assy, Antenna, No.3
86101	86101-72010	Cord Sub-Assy, Antenna, No.2
86101	86101-72020	Cord Sub-Assy, Antenna, No.2
86101	86101-72140	Cord Sub-Assy, Antenna, No.2
86300	86300-72010	Antenna Assy, Amplifier, No.1
86300	86300-72020	Antenna Assy, Amplifier, No.1
86300	86300-72030	Antenna Assy, Amplifier, No.1
8271116790	82711-16790	Clamp, Wiring Harness
9011906915	90119-06915	BOLT W-WASHER

OEM	Part name	Category
82711-16790	Clamp, Wiring Harness	Antenna ([08.2010 - ] (1008- ))
86050-12040	Antenna Assy, Television	Antenna ([08.2010 - ] (1008- ))
86050-72010	Antenna Assy, Television	Antenna ([08.2010 - ] (1008- ))
86101-72010	Cord Sub-Assy, Antenna, No.2	Antenna ([08.2010 - ] (1008- ))
86101-72020	Cord Sub-Assy, Antenna, No.2	Antenna ([08.2010 - ] (1008- ))
86101-72050	Cord Sub-Assy, Antenna	Antenna ([08.2010 - ] (1008- ))
86101-72060	Cord Sub-Assy, Antenna	Antenna ([08.2010 - ] (1008- ))
86101-72070	Cord Sub-Assy, Antenna, No.3	Antenna ([08.2010 - ] (1008- ))
86101-72080	Cord Sub-Assy, Antenna, No.3	Antenna ([08.2010 - ] (1008- ))
86101-72140	Cord Sub-Assy, Antenna, No.2	Antenna ([08.2010 - ] (1008- ))
86101-72150	Cord Sub-Assy, Antenna	Antenna ([08.2010 - ] (1008- ))
86300-72010	Antenna Assy, Amplifier, No.1	Antenna ([08.2010 - ] (1008- ))
86300-72020	Antenna Assy, Amplifier, No.1	Antenna ([08.2010 - ] (1008- ))
86300-72030	Antenna Assy, Amplifier, No.1	Antenna ([08.2010 - ] (1008- ))
90119-06915	BOLT W-WASHER	Antenna ([08.2010 - ] (1008- ))

Source: Public OEM parts-catalog data
Variants: 2 / 4
Category: 203
Collected: 2026-08-04
