Search › Model › ANA10

ANA10

Toyota MARK-X-ZIO · 2007 · 4,581 parts · 199 categories

4,581 items

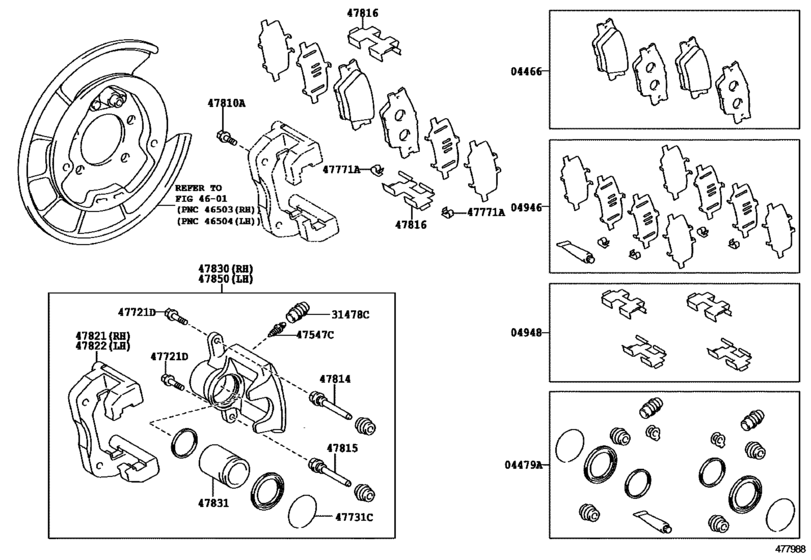

Rear Disc Brake Caliper & Dust Cover ([07.2011 - ] (1107- )) 24

#	OEM	Part name
4466	04466-42060	Pad Kit, Disc Brake, Rear
4479	04479-33240	Cylinder Kit, Disc Brake, Rear
4479	04479-33350	Cylinder Kit, Disc Brake, Rear
4946	04946-72010	Shim Kit, Anti Squeal(For Rear Disc Brake)
4948	04948-42020	Fitting Kit, Disc Brake, Rear
4948	04948-75010	Fitting Kit, Disc Brake, Rear
31478	31478-50020	Cap, Bleeder Plug(For Front Disc Brake)
47547	47547-20010	Plug, Bleeder(For Release Cylinder)
47721	90105-08164	Bolt(For Front Disc Brake Cylinder Slide)
47731	90520-52006	Ring, Set(For Disc Brake Piston)
47771	47771-72010	Plate, Pad Wear Indicator(For Rear Disc Brake)
47810	90105-12314	Bolt, Hexagon(For Front Disc Brake Caliper)
47814	47814-33210	Pin, Cylinder Slide, No.1(For Rear Disc Brake)
47814	47814-33240	Pin, Cylinder Slide, No.1(For Rear Disc Brake)
47815	47815-33240	Pin, Cylinder Slide, No.1(For Rear Disc Brake)
47816	47816-42060	Plate, Pad Support, No.1(For Rear Disc Brake)
47816	47816-75010	Plate, Pad Support, No.1(For Rear Disc Brake)
47821	47821-72011	Mounting, Rear Disc Brake Cylinder, Rh
47822	47822-72011	Mounting, Rear Disc Brake Cylinder, Lh
47830	47830-72010	Cylinder Assy, Disc Brake, Rear Rh
47830	47830-72011	Cylinder Assy, Disc Brake, Rear Rh
47831	47831-33210	Piston, Rear Disc Brake
47850	47850-72010	Cylinder Assy, Disc Brake, Rear Lh
47850	47850-72011	Cylinder Assy, Disc Brake, Rear Lh

OEM	Part name	Category
04466-42060	Pad Kit, Disc Brake, Rear	Rear Disc Brake Caliper & Dust Cover ([07.2011 - ] (1107- ))
04479-33240	Cylinder Kit, Disc Brake, Rear	Rear Disc Brake Caliper & Dust Cover ([07.2011 - ] (1107- ))
04479-33350	Cylinder Kit, Disc Brake, Rear	Rear Disc Brake Caliper & Dust Cover ([07.2011 - ] (1107- ))
04946-72010	Shim Kit, Anti Squeal(For Rear Disc Brake)	Rear Disc Brake Caliper & Dust Cover ([07.2011 - ] (1107- ))
04948-42020	Fitting Kit, Disc Brake, Rear	Rear Disc Brake Caliper & Dust Cover ([07.2011 - ] (1107- ))
04948-75010	Fitting Kit, Disc Brake, Rear	Rear Disc Brake Caliper & Dust Cover ([07.2011 - ] (1107- ))
31478-50020	Cap, Bleeder Plug(For Front Disc Brake)	Rear Disc Brake Caliper & Dust Cover ([07.2011 - ] (1107- ))
47547-20010	Plug, Bleeder(For Release Cylinder)	Rear Disc Brake Caliper & Dust Cover ([07.2011 - ] (1107- ))
47771-72010	Plate, Pad Wear Indicator(For Rear Disc Brake)	Rear Disc Brake Caliper & Dust Cover ([07.2011 - ] (1107- ))
47814-33210	Pin, Cylinder Slide, No.1(For Rear Disc Brake)	Rear Disc Brake Caliper & Dust Cover ([07.2011 - ] (1107- ))
47814-33240	Pin, Cylinder Slide, No.1(For Rear Disc Brake)	Rear Disc Brake Caliper & Dust Cover ([07.2011 - ] (1107- ))
47815-33240	Pin, Cylinder Slide, No.1(For Rear Disc Brake)	Rear Disc Brake Caliper & Dust Cover ([07.2011 - ] (1107- ))
47816-42060	Plate, Pad Support, No.1(For Rear Disc Brake)	Rear Disc Brake Caliper & Dust Cover ([07.2011 - ] (1107- ))
47816-75010	Plate, Pad Support, No.1(For Rear Disc Brake)	Rear Disc Brake Caliper & Dust Cover ([07.2011 - ] (1107- ))
47821-72011	Mounting, Rear Disc Brake Cylinder, Rh	Rear Disc Brake Caliper & Dust Cover ([07.2011 - ] (1107- ))
47822-72011	Mounting, Rear Disc Brake Cylinder, Lh	Rear Disc Brake Caliper & Dust Cover ([07.2011 - ] (1107- ))
47830-72010	Cylinder Assy, Disc Brake, Rear Rh	Rear Disc Brake Caliper & Dust Cover ([07.2011 - ] (1107- ))
47830-72011	Cylinder Assy, Disc Brake, Rear Rh	Rear Disc Brake Caliper & Dust Cover ([07.2011 - ] (1107- ))
47831-33210	Piston, Rear Disc Brake	Rear Disc Brake Caliper & Dust Cover ([07.2011 - ] (1107- ))
47850-72010	Cylinder Assy, Disc Brake, Rear Lh	Rear Disc Brake Caliper & Dust Cover ([07.2011 - ] (1107- ))
47850-72011	Cylinder Assy, Disc Brake, Rear Lh	Rear Disc Brake Caliper & Dust Cover ([07.2011 - ] (1107- ))
90105-08164	Bolt(For Front Disc Brake Cylinder Slide)	Rear Disc Brake Caliper & Dust Cover ([07.2011 - ] (1107- ))
90105-12314	Bolt, Hexagon(For Front Disc Brake Caliper)	Rear Disc Brake Caliper & Dust Cover ([07.2011 - ] (1107- ))
90520-52006	Ring, Set(For Disc Brake Piston)	Rear Disc Brake Caliper & Dust Cover ([07.2011 - ] (1107- ))
