Search › Model › AMF310
AMF310

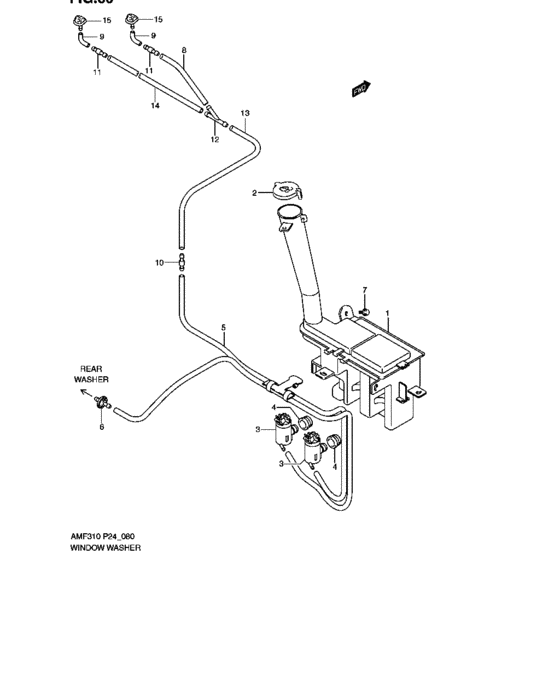

Window washer (WINDOW WASHER) 14
| # | OEM | Part name |
|---|---|---|
| 1 | 38450-M68K0-000 | Tank assy, washer |
| 2 | 38452-M68K0-000 | Cap, washer tank |
| 3 | 38410-M6615-100 | Pump assy, washer |
| 4 | 38453-75000-000 | GROMMET |
| 5 | 38491-M68K0-000 | Hose assy, fr & rr |
| 6 | 38496-M75J0-000 | Joint, rear washer hose |
| 7 | 02162-0616A-000 | SCREW |
| 7 | 02162-0616B-000 | SCREW - Bolt, adjust |
| 8 | 38459-50J00-000 | HOSE,WASHER L:810 |
| 10 | 38496-61A00-000 | VALVE,CHECK |
| 12 | 38496-M7131-000 | Joint, 3way |
| 13 | 38491-M68K2-000 | Hose assy, no.1 |
| 14 | 38491-M68K3-000 | Hose assy, no.2 |
| 15 | 38480-M59K0-000 | Nozzle, washer |
| OEM | Part name | Category |
|---|---|---|
| 02162-0616A-000 | SCREW | Window washer (WINDOW WASHER) |
| 02162-0616B-000 | SCREW - Bolt, adjust | Window washer (WINDOW WASHER) |
| 38410-M6615-100 | Pump assy, washer | Window washer (WINDOW WASHER) |
| 38450-M68K0-000 | Tank assy, washer | Window washer (WINDOW WASHER) |
| 38452-M68K0-000 | Cap, washer tank | Window washer (WINDOW WASHER) |
| 38453-75000-000 | GROMMET | Window washer (WINDOW WASHER) |
| 38459-50J00-000 | HOSE,WASHER L:810 | Window washer (WINDOW WASHER) |
| 38480-M59K0-000 | Nozzle, washer | Window washer (WINDOW WASHER) |
| 38491-M68K0-000 | Hose assy, fr & rr | Window washer (WINDOW WASHER) |
| 38491-M68K2-000 | Hose assy, no.1 | Window washer (WINDOW WASHER) |
| 38491-M68K3-000 | Hose assy, no.2 | Window washer (WINDOW WASHER) |
| 38496-61A00-000 | VALVE,CHECK | Window washer (WINDOW WASHER) |
| 38496-M7131-000 | Joint, 3way | Window washer (WINDOW WASHER) |
| 38496-M75J0-000 | Joint, rear washer hose | Window washer (WINDOW WASHER) |
