AMF310

Suzuki ALTO-A-STAR-CELERIO · 2,276 parts · 180 categories
AMF310 ×

← Back to categories

2,276 items

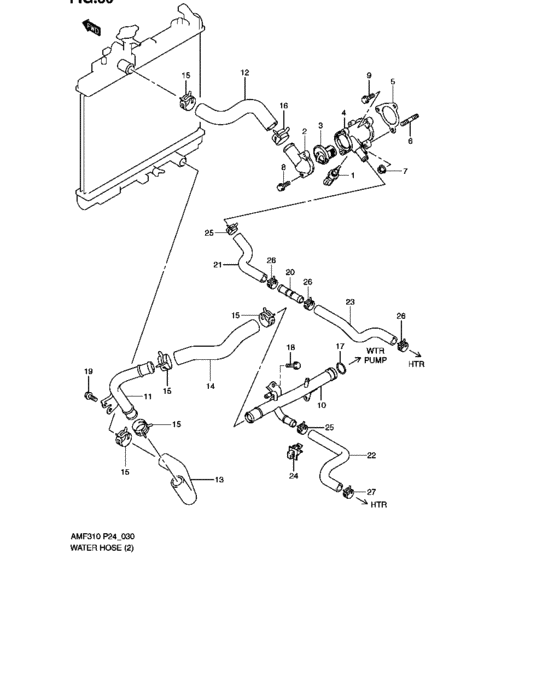

Water hose (MT:Australia:TO MA3GFC31S00223874) 26
#OEMPart name
1 13650-M55K0-000 Sensor, water temp
2 17561-M68K0-000 Cap, wtr thermo
3 17670-M83F0-000 Thermostat - 88?c
4 17690-M68K0-000 Case, thermo
5 17699-M68K0-000 Gasket
6 01421-0825A-000 BOLT,STUD
7 08316-1008A-000 NUT - Nut, idle gear shaft
8 01550-0825A-000 Bolt
9 01550-0830A-000 Bolt - Bolt, mount oil seal cover
10 17830-M68K0-000 Pipe, water inlet
11 17835-M68K0-000 Pipe, rdtr outlet
12 17852-M68K0-000 Hose, radiator inlet
13 17854-M68K0-000 Hose, radiator outlet
14 17855-M68K0-000 Hose, radiator outlet no.2
15 09401-30405-000 CLIP
16 09401-33403-000 CLIP
17 09280-28008-000 O RING(D:3.5,ID:27.7)
18 01550-0612A-000 Bolt
20 17840-M68KA-000 Pipe, htr inlet
21 17871-M68KA-000 Hose, htr inlet no.1
22 17872-M68K0-000 Hose, htr outlet
23 17873-M68KA-000 Hose, htr inlet no.2
24 17875-M68K0-000 Clamp
25 17879-M68K0-000 Clip
26 09401-21405-000 CLIP
27 09401-21407-000 CLIP
