Search › Model › AMF310
AMF310

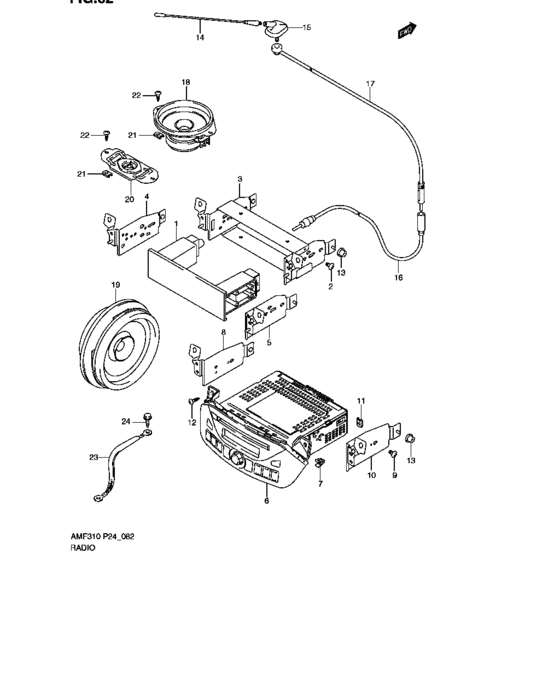

Radio (RADIO) 22
| # | OEM | Part name |
|---|---|---|
| 1 | 39161-M68K0-000 | Cover, radio hole |
| 2 | 03241-0512A-000 | SCREW |
| 3 | 39321-M68K1-000 | Bracket, tuner |
| 4 | 39321-M68K0-000 | Bracket, tuner |
| 5 | 39331-M68K0-000 | Bracket, tuner r |
| 7 | 09409-08332-000 | CLIP |
| 8 | 39321-M68K2-000 | Bracket, tuner |
| 9 | 02142-0508A-000 | SCREW - Screw, cap |
| 10 | 39331-M68K2-000 | Bracket, tuner |
| 11 | 09148-05045-000 | NUT |
| 12 | 03541-0516A-000 | SCREW |
| 13 | 34955-54G10-000 | BUSH,RADIO BRKT |
| 14 | 39251-M68K0-000 | Rod, antenna |
| 15 | 39253-M75J0-000 | Base, antenna |
| 16 | 39270-M68K0-000 | Feeder, i/p |
| 17 | 39271-M68K0-000 | Feeder, ant roof |
| 18 | 39102-M68K0-000 | Speaker assy, front |
| 19 | 39102-M68K1-000 | Speaker assy |
| 20 | 39102-M68K3-000 | Speaker assy, tweeter |
| 22 | 03141-0512A-000 | SCREW - Screw, belt cooling duct |
| 23 | 39312-78F10-000 | WIRE,NOISE SUPPR |
| 24 | 09115-06005-000 | BOLT(6X16) |
| OEM | Part name | Category |
|---|---|---|
| 02142-0508A-000 | SCREW - Screw, cap | Radio (RADIO) |
| 03141-0512A-000 | SCREW - Screw, belt cooling duct | Radio (RADIO) |
| 03241-0512A-000 | SCREW | Radio (RADIO) |
| 03541-0516A-000 | SCREW | Radio (RADIO) |
| 09115-06005-000 | BOLT(6X16) | Radio (RADIO) |
| 09148-05045-000 | NUT | Radio (RADIO) |
| 09409-08332-000 | CLIP | Radio (RADIO) |
| 34955-54G10-000 | BUSH,RADIO BRKT | Radio (RADIO) |
| 39102-M68K0-000 | Speaker assy, front | Radio (RADIO) |
| 39102-M68K1-000 | Speaker assy | Radio (RADIO) |
| 39102-M68K3-000 | Speaker assy, tweeter | Radio (RADIO) |
| 39161-M68K0-000 | Cover, radio hole | Radio (RADIO) |
| 39251-M68K0-000 | Rod, antenna | Radio (RADIO) |
| 39253-M75J0-000 | Base, antenna | Radio (RADIO) |
| 39270-M68K0-000 | Feeder, i/p | Radio (RADIO) |
| 39271-M68K0-000 | Feeder, ant roof | Radio (RADIO) |
| 39312-78F10-000 | WIRE,NOISE SUPPR | Radio (RADIO) |
| 39321-M68K0-000 | Bracket, tuner | Radio (RADIO) |
| 39321-M68K1-000 | Bracket, tuner | Radio (RADIO) |
| 39321-M68K2-000 | Bracket, tuner | Radio (RADIO) |
| 39331-M68K0-000 | Bracket, tuner r | Radio (RADIO) |
| 39331-M68K2-000 | Bracket, tuner | Radio (RADIO) |
