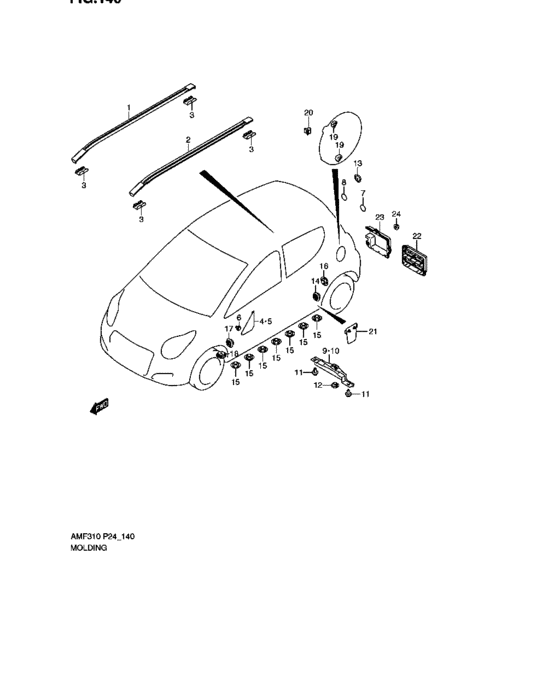

Molding (MOLDING)
21
| # | OEM | Part name |
|---|
| 1 |
78151-68K00-000 |
Molding,roof,r |
| 2 |
78161-68K00-000 |
Molding,roof,l |
| 3 |
78155-58J10-000 |
CLIP,ROOF MOLDING BODY |
| 6 |
09409-M1130-900 |
Clip |
| 7 |
77191-M79F0-000 |
Film |
| 9 |
77381-M68K0-000 |
Skirt, rr air dam rh |
| 10 |
77391-M68K0-000 |
Skirt, rr air dam lh |
| 11 |
09409-M08L0-100 |
Clip |
| 12 |
09148-05037-000 |
CLIP |
| 13 |
09250-M10L0-100 |
Cap - Od:16.2 |
| 14 |
09250-M15L0-100 |
Cap - Od:23.5 |
| 15 |
09250-15015-000 |
CAP(OD:23.5) |
| 17 |
09250-M1700-500 |
Cap - Od:25.5 |
| 17 |
09250-17001-000 |
CAP(OD:25.5) |
| 18 |
72397-58J00-000 |
CAP,DASH LOWER |
| 19 |
77116-M60B0-000 |
Cushion |
| 20 |
77121-63J00-000 |
SPRING,FUEL FILLER DOOR |
| 21 |
75470-73H00-000 |
VALVE,AIR OUTLET |
| 22 |
77330-M68K0-000 |
Outlet, ventilator |
| 23 |
77341-M68K0-000 |
Duct, ventilator outlet |
| 24 |
08316-1006A-000 |
NUT |
| OEM |
Part name |
Category |
| 08316-1006A-000 |
NUT |
Molding (MOLDING) |
| 09148-05037-000 |
CLIP |
Molding (MOLDING) |
| 09250-15015-000 |
CAP(OD:23.5) |
Molding (MOLDING) |
| 09250-17001-000 |
CAP(OD:25.5) |
Molding (MOLDING) |
| 09250-M10L0-100 |
Cap - Od:16.2 |
Molding (MOLDING) |
| 09250-M15L0-100 |
Cap - Od:23.5 |
Molding (MOLDING) |
| 09250-M1700-500 |
Cap - Od:25.5 |
Molding (MOLDING) |
| 09409-M08L0-100 |
Clip |
Molding (MOLDING) |
| 09409-M1130-900 |
Clip |
Molding (MOLDING) |
| 72397-58J00-000 |
CAP,DASH LOWER |
Molding (MOLDING) |
| 75470-73H00-000 |
VALVE,AIR OUTLET |
Molding (MOLDING) |
| 77116-M60B0-000 |
Cushion |
Molding (MOLDING) |
| 77121-63J00-000 |
SPRING,FUEL FILLER DOOR |
Molding (MOLDING) |
| 77191-M79F0-000 |
Film |
Molding (MOLDING) |
| 77330-M68K0-000 |
Outlet, ventilator |
Molding (MOLDING) |
| 77341-M68K0-000 |
Duct, ventilator outlet |
Molding (MOLDING) |
| 77381-M68K0-000 |
Skirt, rr air dam rh |
Molding (MOLDING) |
| 77391-M68K0-000 |
Skirt, rr air dam lh |
Molding (MOLDING) |
| 78151-68K00-000 |
Molding,roof,r |
Molding (MOLDING) |
| 78155-58J10-000 |
CLIP,ROOF MOLDING BODY |
Molding (MOLDING) |
| 78161-68K00-000 |
Molding,roof,l |
Molding (MOLDING) |
