AMF310

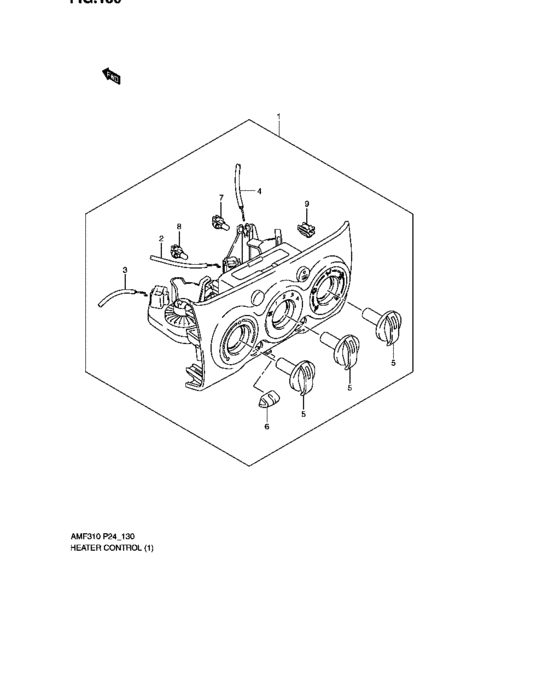

Heater control (LHD) 8
| # | OEM | Part name |
|---|---|---|
| 2 | 74451-M68K1-000 | Cable, mode control |
| 3 | 74452-M68K1-000 | Cable, temp control |
| 4 | 74453-M68K1-000 | Cable, fresh air |
| 5 | 74461-M68K0-000 | Knob, dial |
| 6 | 74462-M68K0-000 | Knob, fresh air |
| 7 | 74531-M62J0-000 | Bulb - W/red cap |
| 8 | 74532-M86G0-000 | Bulb - Clear |
| 9 | 09409-08342-000 | CLIP |
| OEM | Part name | Category |
|---|---|---|
| 09409-08342-000 | CLIP | Heater control (LHD) |
| 74451-M68K1-000 | Cable, mode control | Heater control (LHD) |
| 74452-M68K1-000 | Cable, temp control | Heater control (LHD) |
| 74453-M68K1-000 | Cable, fresh air | Heater control (LHD) |
| 74461-M68K0-000 | Knob, dial | Heater control (LHD) |
| 74462-M68K0-000 | Knob, fresh air | Heater control (LHD) |
| 74531-M62J0-000 | Bulb - W/red cap | Heater control (LHD) |
| 74532-M86G0-000 | Bulb - Clear | Heater control (LHD) |
