Search › Model › AMF310
AMF310

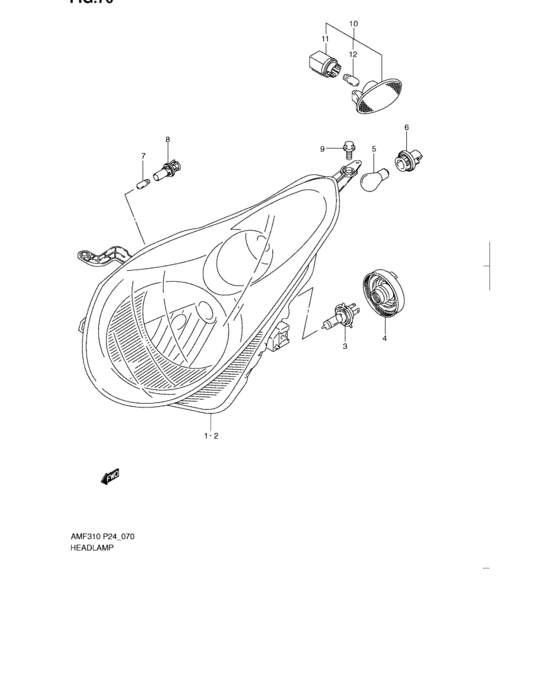

Headlamp (HEADLAMP) 17
| # | OEM | Part name |
|---|---|---|
| 1 | 35121-M68K2-100 | Unit, headlamp rh |
| 1 | 35121-M68K0-100 | Unit, headlamp rh |
| 1 | 35121-M68K3-000 | Unit, headlamp rh |
| 1 | 35121-M68K1-000 | Unit, headlamp rh |
| 2 | 35321-M68K2-100 | Unit, headlamp lh |
| 2 | 35321-M68K0-100 | Unit, headlamp lh |
| 2 | 35321-M68K3-000 | Unit, headlamp lh |
| 2 | 35321-M68K1-000 | Unit, headlamp lh |
| 3 | 09471-12182-000 | BULB(12V60/55W,H4) |
| 4 | 35125-M79F0-000 | Cover, socket |
| 5 | 09471-12186-000 | BULB(12V21W,AMBER) |
| 6 | 35618-M55K0-000 | Socket, turn lamp |
| 7 | 09471-12216-000 | BULB(12V5W) - Bulb (12v5w) |
| 8 | 36118-M79F0-000 | Socket, position lamp |
| 9 | 09122-76006-000 | SCREW(6X16) |
| 10 | 36410-M67K1-000 | Lamp assy, side turn signal |
| 11 | 36422-M67K0-000 | Socket |
| OEM | Part name | Category |
|---|---|---|
| 09122-76006-000 | SCREW(6X16) | Headlamp (HEADLAMP) |
| 09471-12182-000 | BULB(12V60/55W,H4) | Headlamp (HEADLAMP) |
| 09471-12186-000 | BULB(12V21W,AMBER) | Headlamp (HEADLAMP) |
| 09471-12216-000 | BULB(12V5W) - Bulb (12v5w) | Headlamp (HEADLAMP) |
| 35121-M68K0-100 | Unit, headlamp rh | Headlamp (HEADLAMP) |
| 35121-M68K1-000 | Unit, headlamp rh | Headlamp (HEADLAMP) |
| 35121-M68K2-100 | Unit, headlamp rh | Headlamp (HEADLAMP) |
| 35121-M68K3-000 | Unit, headlamp rh | Headlamp (HEADLAMP) |
| 35125-M79F0-000 | Cover, socket | Headlamp (HEADLAMP) |
| 35321-M68K0-100 | Unit, headlamp lh | Headlamp (HEADLAMP) |
| 35321-M68K1-000 | Unit, headlamp lh | Headlamp (HEADLAMP) |
| 35321-M68K2-100 | Unit, headlamp lh | Headlamp (HEADLAMP) |
| 35321-M68K3-000 | Unit, headlamp lh | Headlamp (HEADLAMP) |
| 35618-M55K0-000 | Socket, turn lamp | Headlamp (HEADLAMP) |
| 36118-M79F0-000 | Socket, position lamp | Headlamp (HEADLAMP) |
| 36410-M67K1-000 | Lamp assy, side turn signal | Headlamp (HEADLAMP) |
| 36422-M67K0-000 | Socket | Headlamp (HEADLAMP) |
