Search › Model › AMF310
AMF310

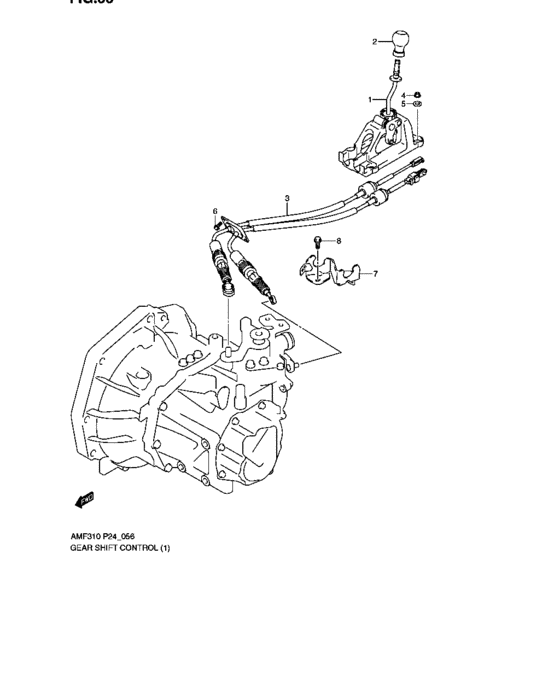

Gear shift control (MT) 7
| # | OEM | Part name |
|---|---|---|
| 1 | 28100-M68K0-100 | Lever assy, gear shift control |
| 3 | 28300-M68K0-000 | Cable assy, shift & select |
| 4 | 08316-1008A-000 | NUT - Nut, idle gear shaft |
| 5 | 09160-08151-000 | WASHER(8.5X26X1.6) - Washer, shift rod (8.5x26x1.6) |
| 6 | 01550-0616A-000 | Bolt |
| 7 | 28390-M68K0-000 | Bracket, t/m cont cable |
| 8 | 01570-1025A-000 | Bolt |
| OEM | Part name | Category |
|---|---|---|
| 01550-0616A-000 | Bolt | Gear shift control (MT) |
| 01570-1025A-000 | Bolt | Gear shift control (MT) |
| 08316-1008A-000 | NUT - Nut, idle gear shaft | Gear shift control (MT) |
| 09160-08151-000 | WASHER(8.5X26X1.6) - Washer, shift rod (8.5x26x1.6) | Gear shift control (MT) |
| 28100-M68K0-100 | Lever assy, gear shift control | Gear shift control (MT) |
| 28300-M68K0-000 | Cable assy, shift & select | Gear shift control (MT) |
| 28390-M68K0-000 | Bracket, t/m cont cable | Gear shift control (MT) |
