Search › Model › AMF310
AMF310

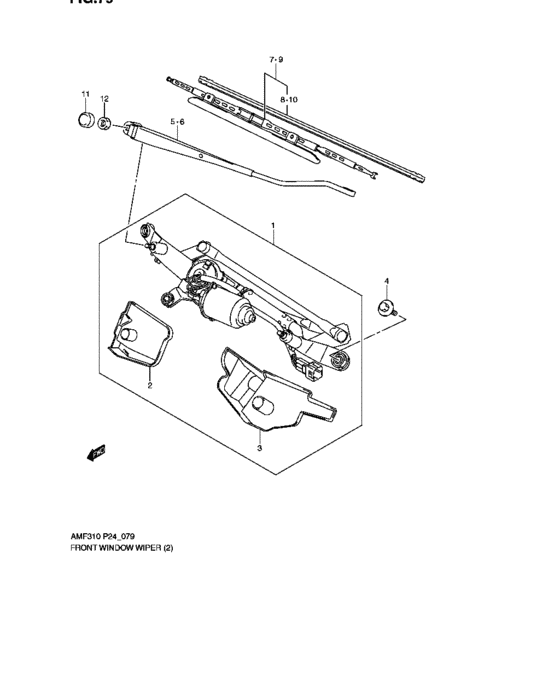

Front window wiper (RHD) 12
| # | OEM | Part name |
|---|---|---|
| 1 | 38100-M68K1-000 | Wiper assy, windshield |
| 2 | 38112-M68K1-000 | Cap |
| 3 | 38116-M68K1-000 | Cap |
| 4 | 09116-06172-000 | BOLT(6X30) - Bolt (6x30) |
| 5 | 38310-M68K1-000 | Arm assy, wiper driver side |
| 6 | 38330-M68K1-000 | Arm assy, wiper passenger side |
| 7 | 38340-M68K1-000 | Blade assy, wiper driver side |
| 8 | 38346-M68K0-000 | Rubber |
| 9 | 38341-M68K0-000 | Blade assy, wiper passenger,side |
| 10 | 38347-M68K0-000 | Rubber |
| 11 | 38315-60B11-000 | CAP,WIPER PIVOT |
| 12 | 08310-0008A-000 | NUT - Nut, bead stopper |
| OEM | Part name | Category |
|---|---|---|
| 08310-0008A-000 | NUT - Nut, bead stopper | Front window wiper (RHD) |
| 09116-06172-000 | BOLT(6X30) - Bolt (6x30) | Front window wiper (RHD) |
| 38100-M68K1-000 | Wiper assy, windshield | Front window wiper (RHD) |
| 38112-M68K1-000 | Cap | Front window wiper (RHD) |
| 38116-M68K1-000 | Cap | Front window wiper (RHD) |
| 38310-M68K1-000 | Arm assy, wiper driver side | Front window wiper (RHD) |
| 38315-60B11-000 | CAP,WIPER PIVOT | Front window wiper (RHD) |
| 38330-M68K1-000 | Arm assy, wiper passenger side | Front window wiper (RHD) |
| 38340-M68K1-000 | Blade assy, wiper driver side | Front window wiper (RHD) |
| 38341-M68K0-000 | Blade assy, wiper passenger,side | Front window wiper (RHD) |
| 38346-M68K0-000 | Rubber | Front window wiper (RHD) |
| 38347-M68K0-000 | Rubber | Front window wiper (RHD) |
