AMF310

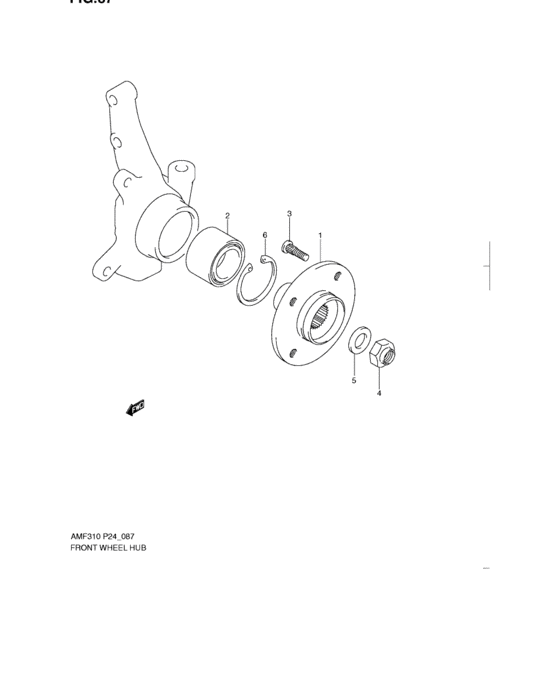

Front wheel hub (FRONT WHEEL HUB) 6
| # | OEM | Part name |
|---|---|---|
| 1 | 43421-M68K0-000 | Hub, front wheel |
| 2 | 43440-M68K0-000 | Bearing, front wheel |
| 3 | 09119-12012-000 | BOLT(12X38) |
| 4 | 09159-18008-000 | NUT |
| 5 | 09160-18017-000 | WASHER(18X35X4) |
| 6 | 08331-4162A-000 | CIRCLIP |
| OEM | Part name | Category |
|---|---|---|
| 08331-4162A-000 | CIRCLIP | Front wheel hub (FRONT WHEEL HUB) |
| 09119-12012-000 | BOLT(12X38) | Front wheel hub (FRONT WHEEL HUB) |
| 09159-18008-000 | NUT | Front wheel hub (FRONT WHEEL HUB) |
| 09160-18017-000 | WASHER(18X35X4) | Front wheel hub (FRONT WHEEL HUB) |
| 43421-M68K0-000 | Hub, front wheel | Front wheel hub (FRONT WHEEL HUB) |
| 43440-M68K0-000 | Bearing, front wheel | Front wheel hub (FRONT WHEEL HUB) |
