AMF310

Suzuki ALTO-A-STAR-CELERIO · 2,276 parts · 180 categories
AMF310 ×

← Back to categories

2,276 items

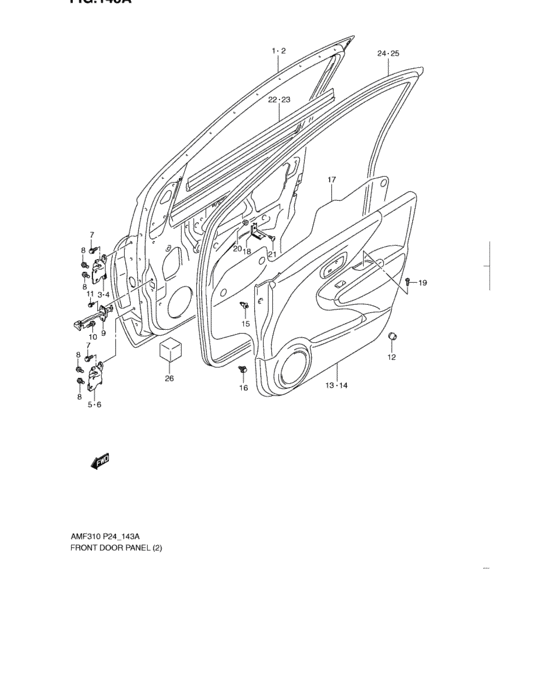

Front door panel (MID,HIGH) 26
#OEMPart name
1 68001-M68K1-000 Panel assy, front door rh
1 68001-M68K2-000 Panel assy, front door rh
2 68002-M68K1-000 Panel assy, front door lh
2 68002-M68K2-000 Panel assy, front door lh
3 69310-63J00-000 HINGE,FR DR NO.1
4 69320-63J00-000 HINGE,FR DR NO.2
5 69330-58J00-000 HINGE,FR DR LWR,R
6 69340-58J00-000 HINGE,FR DR LWR,L
7 09103-08389-000 BOLT(8X24)
8 01551-0820A-000 Bolt
9 81810-M75J0-100 Stop, rear door open
10 09112-08015-000 BOLT(8X25)
11 01550-0620A-000 Bolt
12 82711-65J00-000 CUSHION
16 09409-10312-000 CLIP
17 83911-M68K0-000 Cover, front door sealing
17 83911-M68K1-000 Cover, front door sealing
18 83751-M68K0-000 Bracket, side door trim
19 09132-05058-000 SCREW(5X12)
20 09148-06007-000 NUT
21 03241-0612A-000 SCREW
22 83851-M68K0-000 Weatherstrip, fr door inner rh
23 83861-M68K0-000 Weatherstrip, fr door inner lh
24 84641-M68K0-000 Weatherstrip, fr door opng rh
25 84651-M68K0-000 Weatherstrip, fr door opng lh
26 83915-M68K0-000 Pad, door trim
