Search › Model › AMF310
AMF310

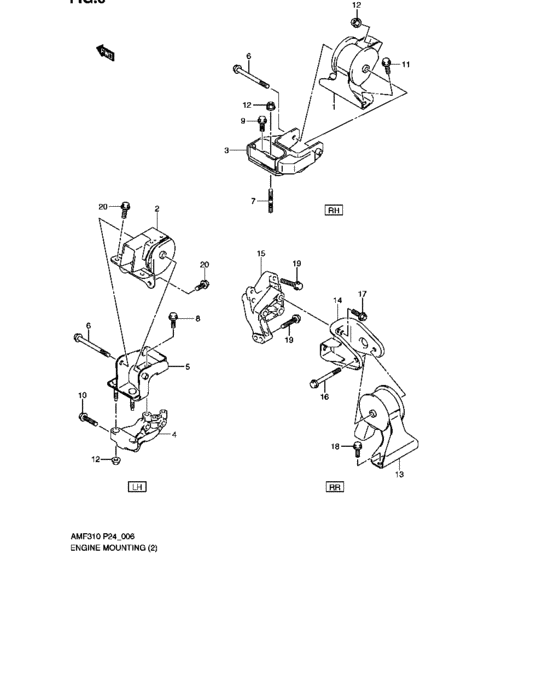

Engine mounting (AT) 21
| # | OEM | Part name |
|---|---|---|
| 1 | 11610-M68K0-200 | Mounting, eng rh |
| 1 | 11610-M68KB-100 | Mounting, eng rh |
| 2 | 11620-M68K0-200 | Mounting, eng lh |
| 2 | 11620-M68KA-100 | Mounting, eng lh |
| 3 | 11640-M51KA-000 | Bracket, eng rh mtg |
| 4 | 11651-M68K1-000 | Bracket, eng lh mtg |
| 5 | 11670-M68K1-000 | Bracket, eng lh mtg body |
| 6 | 09103-10414-000 | BOLT(10X105) |
| 7 | 01421-1025A-000 | BOLT,STUD |
| 8 | 01550-1025A-000 | Bolt - Bolt, drive gear |
| 9 | 01550-1030A-000 | Bolt |
| 10 | 01550-1045A-000 | Bolt |
| 11 | 01551-1025A-000 | Bolt |
| 12 | 08316-1010A-000 | NUT - Nut, kick starter |
| 13 | 11710-M68K1-000 | Mounting, eng rr |
| 14 | 11740-M68K0-000 | Bracket comp, eng rr mtg |
| 15 | 11749-M68K0-000 | Bracket, eng rr mtg |
| 16 | 09103-10426-000 | BOLT(10X90) |
| 17 | 09103-10342-000 | BOLT(10X32) |
| 19 | 01550-1050A-000 | Bolt - Bolt, exhaust tube |
| 20 | 01551-1025C-000 | Bolt |
| OEM | Part name | Category |
|---|---|---|
| 01421-1025A-000 | BOLT,STUD | Engine mounting (AT) |
| 01550-1025A-000 | Bolt - Bolt, drive gear | Engine mounting (AT) |
| 01550-1030A-000 | Bolt | Engine mounting (AT) |
| 01550-1045A-000 | Bolt | Engine mounting (AT) |
| 01550-1050A-000 | Bolt - Bolt, exhaust tube | Engine mounting (AT) |
| 01551-1025A-000 | Bolt | Engine mounting (AT) |
| 01551-1025C-000 | Bolt | Engine mounting (AT) |
| 08316-1010A-000 | NUT - Nut, kick starter | Engine mounting (AT) |
| 09103-10342-000 | BOLT(10X32) | Engine mounting (AT) |
| 09103-10414-000 | BOLT(10X105) | Engine mounting (AT) |
| 09103-10426-000 | BOLT(10X90) | Engine mounting (AT) |
| 11610-M68K0-200 | Mounting, eng rh | Engine mounting (AT) |
| 11610-M68KB-100 | Mounting, eng rh | Engine mounting (AT) |
| 11620-M68K0-200 | Mounting, eng lh | Engine mounting (AT) |
| 11620-M68KA-100 | Mounting, eng lh | Engine mounting (AT) |
| 11640-M51KA-000 | Bracket, eng rh mtg | Engine mounting (AT) |
| 11651-M68K1-000 | Bracket, eng lh mtg | Engine mounting (AT) |
| 11670-M68K1-000 | Bracket, eng lh mtg body | Engine mounting (AT) |
| 11710-M68K1-000 | Mounting, eng rr | Engine mounting (AT) |
| 11740-M68K0-000 | Bracket comp, eng rr mtg | Engine mounting (AT) |
| 11749-M68K0-000 | Bracket, eng rr mtg | Engine mounting (AT) |
