Search › Model › AM35
AM35

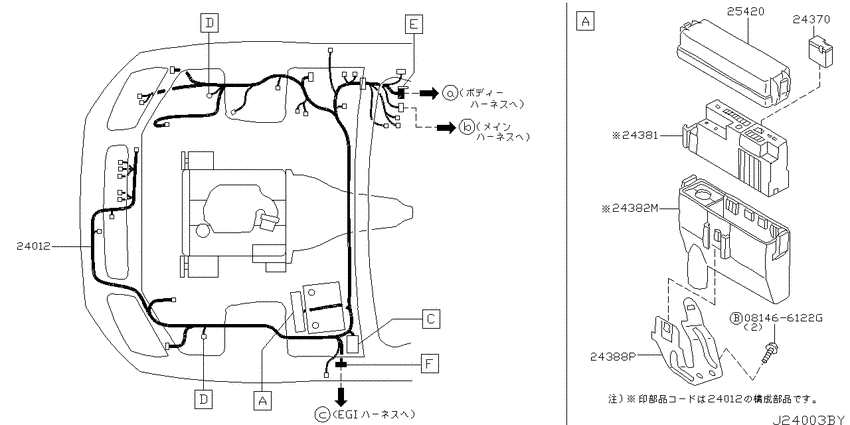

Wiring (2003-06-01 ~ ; ｴﾝｼﾞﾝ ﾙｰﾑ; W) 5
| # | OEM | Part name |
|---|---|---|
| 24012 | 24012-1A301 | Harness Assy-Engine Room |
| 24370 | 24370-C9902 | Connector Assy-Fusible Link |
| 24382 | 24372-AL500 | Cover-Relay Box |
| 24388 | 24388-AL500 | Bracket-Relay Box |
| 25420 | 24312-AL500 | Cover-Fuse Block |
| OEM | Part name | Category |
|---|---|---|
| 24012-1A301 | Harness Assy-Engine Room | Wiring (2003-06-01 ~ ; ｴﾝｼﾞﾝ ﾙｰﾑ; W) |
| 24312-AL500 | Cover-Fuse Block | Wiring (2003-06-01 ~ ; ｴﾝｼﾞﾝ ﾙｰﾑ; W) |
| 24370-C9902 | Connector Assy-Fusible Link | Wiring (2003-06-01 ~ ; ｴﾝｼﾞﾝ ﾙｰﾑ; W) |
| 24372-AL500 | Cover-Relay Box | Wiring (2003-06-01 ~ ; ｴﾝｼﾞﾝ ﾙｰﾑ; W) |
| 24388-AL500 | Bracket-Relay Box | Wiring (2003-06-01 ~ ; ｴﾝｼﾞﾝ ﾙｰﾑ; W) |
