Search › Model › AM35
AM35

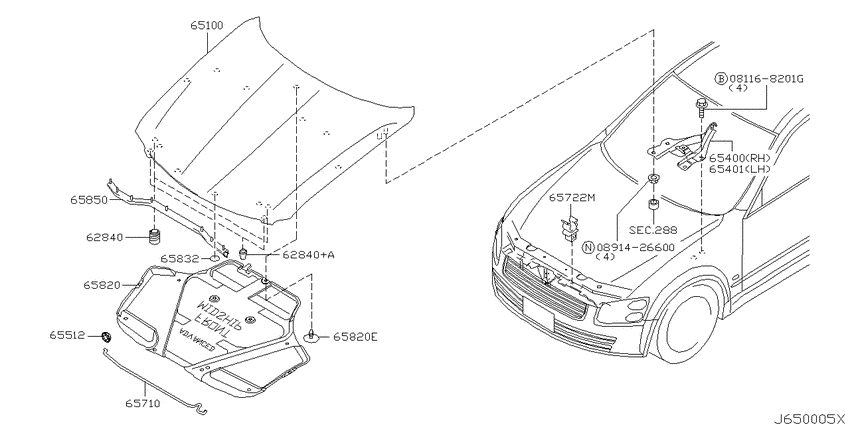

Hood panel, hinge & fitting (2003-06-01 ~ ; W) 8
| # | OEM | Part name |
|---|---|---|
| 65100 | 65100-AQ030 | Hood |
| 65400 | 65400-AL500 | Hinge Assy-Hood, Rh |
| 65401 | 65401-AL500 | Hinge Assy-Hood, Lh |
| 65710 | 65771-AL520 | Rod-Hood Support |
| 65820 | 65840-AL500 | Insulator-Hood |
| 65850 | 65810-AM600 | Seal-Radiator Core, Rh |
| 81168201 | 08116-8201G | Bolt-hexagon |
| 891426600 | 08914-26600 | ナツト,ヘクサゴン |
| OEM | Part name | Category |
|---|---|---|
| 08116-8201G | Bolt-hexagon | Hood panel, hinge & fitting (2003-06-01 ~ ; W) |
| 08914-26600 | ナツト,ヘクサゴン | Hood panel, hinge & fitting (2003-06-01 ~ ; W) |
| 65100-AQ030 | Hood | Hood panel, hinge & fitting (2003-06-01 ~ ; W) |
| 65400-AL500 | Hinge Assy-Hood, Rh | Hood panel, hinge & fitting (2003-06-01 ~ ; W) |
| 65401-AL500 | Hinge Assy-Hood, Lh | Hood panel, hinge & fitting (2003-06-01 ~ ; W) |
| 65771-AL520 | Rod-Hood Support | Hood panel, hinge & fitting (2003-06-01 ~ ; W) |
| 65810-AM600 | Seal-Radiator Core, Rh | Hood panel, hinge & fitting (2003-06-01 ~ ; W) |
| 65840-AL500 | Insulator-Hood | Hood panel, hinge & fitting (2003-06-01 ~ ; W) |
