Search › Model › AM35
AM35

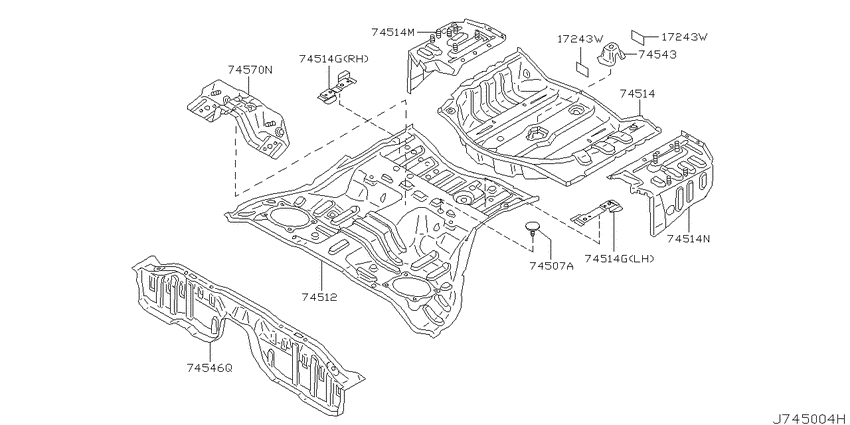

Floor panel (rear) (2003-06-01 ~ ; W) 7
| # | OEM | Part name |
|---|---|---|
| 17243 | 17243-2Y010 | Shim-Fuel Tank |
| 74512 | 74512-AQ030 | Floor-Rear, Front |
| 74514 | 74514-AL530 | Floor-Rear, Rear |
| 74514 | 74531-AQ000 | Floor-Rear, Rear Side Lh |
| 74543 | 74588-AL500 | Bracket-Spare Tire Clamp |
| 74546 | 74546-AL500 | Reinforce Assy-Cross Mbr, Rr Seat |
| 74570 | 74574-AQ000 | Reinforce-Anchor Belt, Rear Floor |
| OEM | Part name | Category |
|---|---|---|
| 17243-2Y010 | Shim-Fuel Tank | Floor panel (rear) (2003-06-01 ~ ; W) |
| 74512-AQ030 | Floor-Rear, Front | Floor panel (rear) (2003-06-01 ~ ; W) |
| 74514-AL530 | Floor-Rear, Rear | Floor panel (rear) (2003-06-01 ~ ; W) |
| 74531-AQ000 | Floor-Rear, Rear Side Lh | Floor panel (rear) (2003-06-01 ~ ; W) |
| 74546-AL500 | Reinforce Assy-Cross Mbr, Rr Seat | Floor panel (rear) (2003-06-01 ~ ; W) |
| 74574-AQ000 | Reinforce-Anchor Belt, Rear Floor | Floor panel (rear) (2003-06-01 ~ ; W) |
| 74588-AL500 | Bracket-Spare Tire Clamp | Floor panel (rear) (2003-06-01 ~ ; W) |
