AM35

Nissan STAGEA · 2003 · 2,218 parts · 203 categories

2,218 items

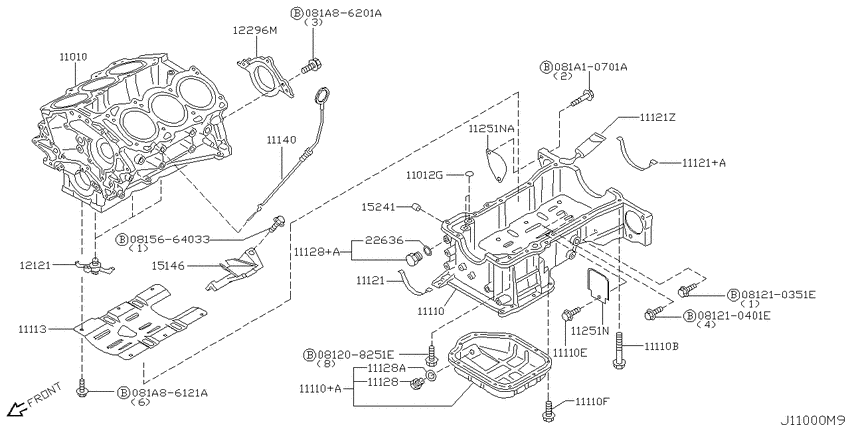

Cylinder block & oil pan (2003-06-01 ~ ; アッセンブリー; VQ35DE) 24

#	OEM	Part name
11010	11000-CG000	Block Assy-Cylinder
11010	11000-CG00F	Block Assy-Cylinder
11010	11022-31U02	Dowel-Block To Oil Pump
11010	11022-42L02	Dowel-Block To Oil Pump
11010	11022-40F00	Dowel-Block To Oil Pump
11012	15066-31U00	Seal-O Ring
11110	11110-CD001	Pan Assy-Oil
11110	11110-AC70A	Pan Assy-Oil
11110	01121-03851	BOLT
11110	11035-AG900	Bolt
11113	11113-CD000	Plate-Baffle, Oil Pan
11128	11128-01M00	Plug-Drain
11128	11128-AM601	Plug-Drain
11128	11026-01M00	Washer-Drain Plug
11140	11140-AM603	Gauge-Oil Level
11251	30417-AL500	Cover-Rear Plate
11251	30417-AL510	Cover-Rear Plate
12121	11560-4W001	Jet Assy-Oil
12296	12296-31U11	Retainer Assy-Oil Seal, Rear
15146	11150-AM610	Guide-Oil Level Gauge
15146	11150-AM61A	Guide-Oil Level Gauge
15241	15241-43U00	Valve-Oil Pressure Regulator
81208251	08120-8251E	Bolt-hexagon
815664033	08156-64033	Bolt-hexagon

OEM	Part name	Category
01121-03851	BOLT	Cylinder block & oil pan (2003-06-01 ~ ; アッセンブリー; VQ35DE)
08120-8251E	Bolt-hexagon	Cylinder block & oil pan (2003-06-01 ~ ; アッセンブリー; VQ35DE)
08156-64033	Bolt-hexagon	Cylinder block & oil pan (2003-06-01 ~ ; アッセンブリー; VQ35DE)
11000-CG000	Block Assy-Cylinder	Cylinder block & oil pan (2003-06-01 ~ ; アッセンブリー; VQ35DE)
11000-CG00F	Block Assy-Cylinder	Cylinder block & oil pan (2003-06-01 ~ ; アッセンブリー; VQ35DE)
11022-31U02	Dowel-Block To Oil Pump	Cylinder block & oil pan (2003-06-01 ~ ; アッセンブリー; VQ35DE)
11022-40F00	Dowel-Block To Oil Pump	Cylinder block & oil pan (2003-06-01 ~ ; アッセンブリー; VQ35DE)
11022-42L02	Dowel-Block To Oil Pump	Cylinder block & oil pan (2003-06-01 ~ ; アッセンブリー; VQ35DE)
11026-01M00	Washer-Drain Plug	Cylinder block & oil pan (2003-06-01 ~ ; アッセンブリー; VQ35DE)
11035-AG900	Bolt	Cylinder block & oil pan (2003-06-01 ~ ; アッセンブリー; VQ35DE)
11110-AC70A	Pan Assy-Oil	Cylinder block & oil pan (2003-06-01 ~ ; アッセンブリー; VQ35DE)
11110-CD001	Pan Assy-Oil	Cylinder block & oil pan (2003-06-01 ~ ; アッセンブリー; VQ35DE)
11113-CD000	Plate-Baffle, Oil Pan	Cylinder block & oil pan (2003-06-01 ~ ; アッセンブリー; VQ35DE)
11128-01M00	Plug-Drain	Cylinder block & oil pan (2003-06-01 ~ ; アッセンブリー; VQ35DE)
11128-AM601	Plug-Drain	Cylinder block & oil pan (2003-06-01 ~ ; アッセンブリー; VQ35DE)
11140-AM603	Gauge-Oil Level	Cylinder block & oil pan (2003-06-01 ~ ; アッセンブリー; VQ35DE)
11150-AM610	Guide-Oil Level Gauge	Cylinder block & oil pan (2003-06-01 ~ ; アッセンブリー; VQ35DE)
11150-AM61A	Guide-Oil Level Gauge	Cylinder block & oil pan (2003-06-01 ~ ; アッセンブリー; VQ35DE)
11560-4W001	Jet Assy-Oil	Cylinder block & oil pan (2003-06-01 ~ ; アッセンブリー; VQ35DE)
12296-31U11	Retainer Assy-Oil Seal, Rear	Cylinder block & oil pan (2003-06-01 ~ ; アッセンブリー; VQ35DE)
15066-31U00	Seal-O Ring	Cylinder block & oil pan (2003-06-01 ~ ; アッセンブリー; VQ35DE)
15241-43U00	Valve-Oil Pressure Regulator	Cylinder block & oil pan (2003-06-01 ~ ; アッセンブリー; VQ35DE)
30417-AL500	Cover-Rear Plate	Cylinder block & oil pan (2003-06-01 ~ ; アッセンブリー; VQ35DE)
30417-AL510	Cover-Rear Plate	Cylinder block & oil pan (2003-06-01 ~ ; アッセンブリー; VQ35DE)

Source: Public OEM parts-catalog data
Variants: 1 / 1
Category: 203
Collected: 2026-07-30
