Search › Model › AM35
AM35

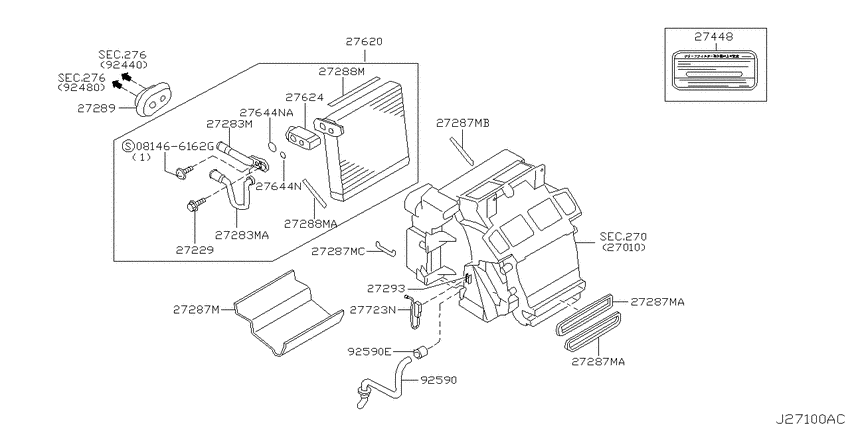

Cooling unit (2003-06-01 ~ ; W) 14
| # | OEM | Part name |
|---|---|---|
| 27229 | 27229-4M400 | Bolt-Kit |
| 27283 | 27283-AL500 | Pipe Assy-Cooler, In |
| 27287 | 27287-AL503 | Seal-Cooling Unit |
| 27287 | 27287-AL500 | Seal-Cooling Unit |
| 27287 | 27287-AL501 | Seal-Cooling Unit |
| 27287 | 27287-8H360 | Seal-Cooling Unit |
| 27288 | 27288-AL520 | Insulator |
| 27288 | 27288-AL521 | Insulator |
| 27289 | 27289-AL500 | Grommet |
| 27293 | 27293-8H310 | Bracket-Thermistor |
| 27448 | 27081-4M400 | Label-Clean Filter |
| 27620 | 27280-AL500 | Evaporator Assy-Cooler |
| 92590 | 92590-AL500 | Hose-Drain |
| 92590 | 27153-AL500 | Clip |
| OEM | Part name | Category |
|---|---|---|
| 27081-4M400 | Label-Clean Filter | Cooling unit (2003-06-01 ~ ; W) |
| 27153-AL500 | Clip | Cooling unit (2003-06-01 ~ ; W) |
| 27229-4M400 | Bolt-Kit | Cooling unit (2003-06-01 ~ ; W) |
| 27280-AL500 | Evaporator Assy-Cooler | Cooling unit (2003-06-01 ~ ; W) |
| 27283-AL500 | Pipe Assy-Cooler, In | Cooling unit (2003-06-01 ~ ; W) |
| 27287-8H360 | Seal-Cooling Unit | Cooling unit (2003-06-01 ~ ; W) |
| 27287-AL500 | Seal-Cooling Unit | Cooling unit (2003-06-01 ~ ; W) |
| 27287-AL501 | Seal-Cooling Unit | Cooling unit (2003-06-01 ~ ; W) |
| 27287-AL503 | Seal-Cooling Unit | Cooling unit (2003-06-01 ~ ; W) |
| 27288-AL520 | Insulator | Cooling unit (2003-06-01 ~ ; W) |
| 27288-AL521 | Insulator | Cooling unit (2003-06-01 ~ ; W) |
| 27289-AL500 | Grommet | Cooling unit (2003-06-01 ~ ; W) |
| 27293-8H310 | Bracket-Thermistor | Cooling unit (2003-06-01 ~ ; W) |
| 92590-AL500 | Hose-Drain | Cooling unit (2003-06-01 ~ ; W) |
