AM35

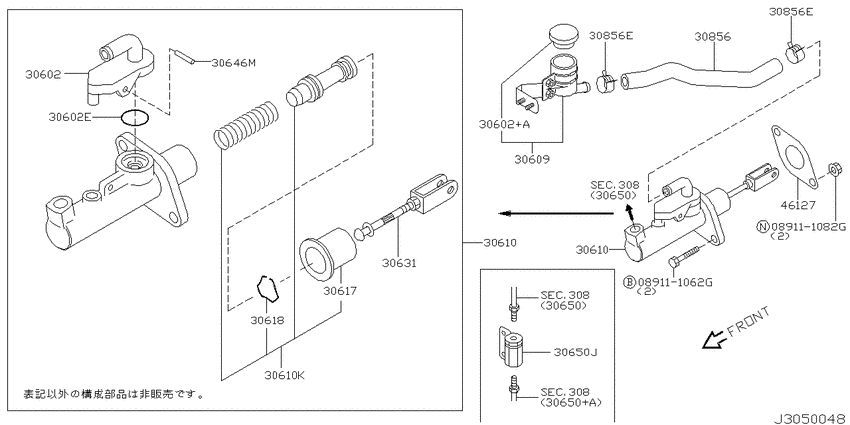

Clutch master cylinder (2003-06-01 ~ ; VQ35DE) 9
| # | OEM | Part name |
|---|---|---|
| 30602 | 46020-2N510 | Cap Assy-Reservoir |
| 30609 | 30617-CD400 | Reservoir-Oil, Clutch |
| 30610 | 30610-CD013 | Cylinder Assy-Clutch Master |
| 30617 | 30618-15R00 | Cover-Dust |
| 30631 | 30631-CD012 | Rod Assy-Push |
| 30631 | 30631-CD014 | Rod Assy-Push |
| 30646 | 30655-21U00 | Cap |
| 30856 | 30856-CD400 | Hose-Clutch Reservoir |
| 30856 | 16439-V5000 | Clamp-Hose A |
| OEM | Part name | Category |
|---|---|---|
| 16439-V5000 | Clamp-Hose A | Clutch master cylinder (2003-06-01 ~ ; VQ35DE) |
| 30610-CD013 | Cylinder Assy-Clutch Master | Clutch master cylinder (2003-06-01 ~ ; VQ35DE) |
| 30617-CD400 | Reservoir-Oil, Clutch | Clutch master cylinder (2003-06-01 ~ ; VQ35DE) |
| 30618-15R00 | Cover-Dust | Clutch master cylinder (2003-06-01 ~ ; VQ35DE) |
| 30631-CD012 | Rod Assy-Push | Clutch master cylinder (2003-06-01 ~ ; VQ35DE) |
| 30631-CD014 | Rod Assy-Push | Clutch master cylinder (2003-06-01 ~ ; VQ35DE) |
| 30655-21U00 | Cap | Clutch master cylinder (2003-06-01 ~ ; VQ35DE) |
| 30856-CD400 | Hose-Clutch Reservoir | Clutch master cylinder (2003-06-01 ~ ; VQ35DE) |
| 46020-2N510 | Cap Assy-Reservoir | Clutch master cylinder (2003-06-01 ~ ; VQ35DE) |
